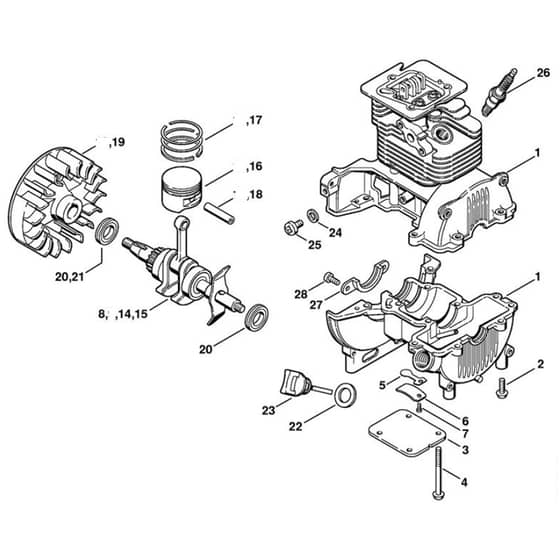

Stihl FS65.4 - Crankcase - Parts Diagram

Ref. Img. Part No. Details
  2 Spline screw IS-M5x18 ST9022 341 1010
Spline screw IS-M5x18
In stock
£1.13 £0.94

  3 Cover ST4170 021 1100
Cover
Out of stock
£5.69 £4.74

  4 Spline screw IS-M5x58 ST9022 341 1120
Spline screw IS-M5x58
Out of stock
£1.63 £1.36

  6 Support plate ST4170 141 2400
Support plate
Out of stock
£2.28 £1.90

  7 Screw ST4170 141 8100
Screw
Out of stock
£0.32 £0.27

  15 Crankshaft (Contains 16 - 18) ST4170 030 0413
Crankshaft (Contains 16 - 18)
Out of stock
£211.20 £176.00

  16 Piston Ø 39 mm (Contains 17) ST4170 030 2011
Piston Ø 39 mm (Contains 17)
Out of stock
£68.52 £57.10

  17 Set of piston ring ST4170 034 3055
Set of piston ring
Out of stock
£4.58 £3.82

  18 Piston pin ST4170 034 1510
Piston pin
Out of stock
£6.65 £5.54

  19 Flywheel ST4170 400 1211
Flywheel
Out of stock
£80.04 £66.70

  21 Sealing ring ST4170 021 5601
Sealing ring
Out of stock
£0.91 £0.76

  22 Gasket ST4170 029 0505
Gasket
Out of stock
£1.43 £1.19

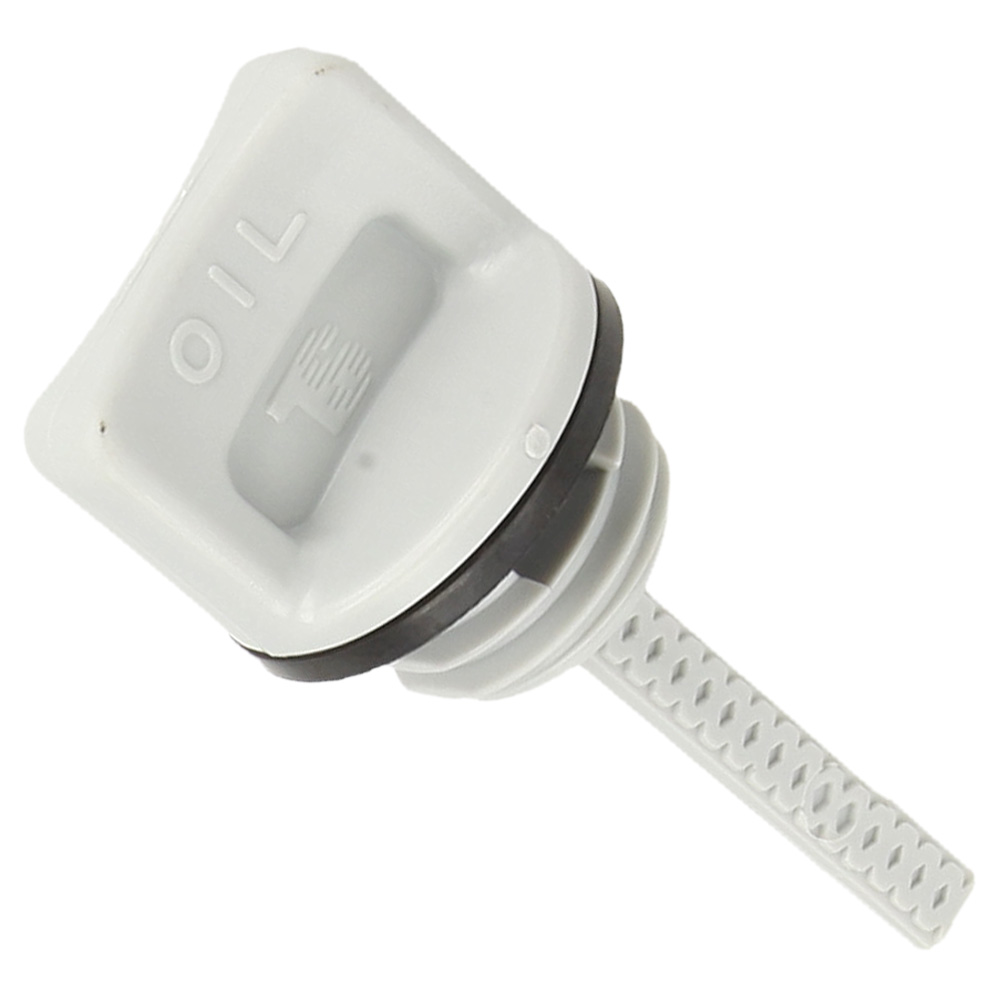

  23 Dipstick ST4170 028 0300
Dipstick
Out of stock
£8.30 £6.92

  24 Washer ST4170 038 0700
Washer
Out of stock
£2.00 £1.67

  25 Screw ST4170 038 0300
Screw
Out of stock
£1.42 £1.18

  26 Spark plug ST4170 400 7000
Spark plug
Out of stock
£4.28 £3.57

  28 Spline screw IS-M4x10 ST9022 313 0650
Spline screw IS-M4x10
Out of stock
£0.86 £0.72


Description

Stihl FS65.4 - Crankcase - Parts Diagram
