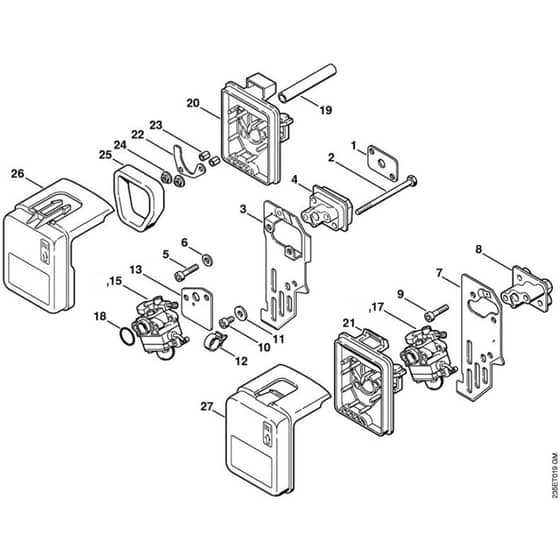

Stihl FS65.4 - Air Filter - Parts Diagram

Description

	Part No.	Details
1	ST4170 129 0905	Gasket	Out of stock	£2.00 £1.67
0	ST4170 028 0605	Hose 7 mm x 1 m / 5/16x40"	Out of stock	£12.68 £10.57
2	ST4170 122 7100	Screw	Out of stock	£4.56 £3.80
5	ST9022 341 1080	Spline screw IS-M5x35	Out of stock	£1.39 £1.16
6	ST9291 021 0120	Washer 5.3	Out of stock	£0.40 £0.33
7	ST4170 122 1800	Heat shield	Out of stock	£5.95 £4.96
9	ST9022 313 1030	Spline screw IS-M5x23	Out of stock	£1.00 £0.83
10	ST9022 341 0960	Spline screw IS-M5x12	In stock	£0.96 £0.80
11	ST9307 021 0120	Washer 5.3	Out of stock	£0.40 £0.33
12	ST4170 122 4600	Support	Out of stock	£2.63 £2.19
13	ST4170 129 0900	Gasket	Out of stock	£2.33 £1.94
15	ST4170 120 0602	Carburetor WYL-135	Out of stock	£113.16 £94.30
18	ST4170 121 9400	Ring	Out of stock	£3.35 £2.79
20	ST4170 140 2801	Filter housing	Out of stock	£14.80 £12.33
21	ST4170 140 2800	Filter housing	Out of stock	£20.53 £17.11
22	ST4170 141 2401	Support plate	Out of stock	£3.19 £2.66
23	ST4170 141 1800	Sleeve	Out of stock	£1.72 £1.43
24	ST9220 260 0700	Hexagon nut M5	Out of stock	£0.50 £0.42
26	ST4170 141 0501	Filter cover	Out of stock	£27.88 £23.23
