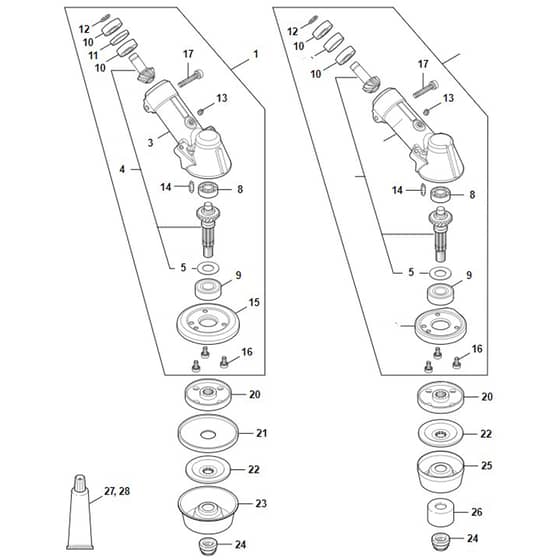

Stihl FS460 C-EM - Gear Head - Parts Diagram

Description

	Part No.	Details
1	ST4147 640 0104	Gearhead (Contains 3 - 5 + 8 - 17)	Out of stock	£221.28 £184.40
3	ST4147 641 0300	Gear housing	Out of stock	£103.32 £86.10
4	ST4147 640 7302	Set of pinions (Contains 5)	Out of stock	£100.92 £84.10
5	ST4147 642 9500	Slinger disc	Out of stock	£1.76 £1.47
8	ST9503 003 0103	Grooved ball bearing 6000	Out of stock	£12.47 £10.39
9	ST9503 003 7454	Grooved ball bearing DIN625-6202-2RS	Out of stock	£23.16 £19.30
10	ST9503 003 5159	Grooved ball bearing 6001-2Z	Out of stock	£15.24 £12.70
11	ST4147 642 8501	Spacer sleeve	Out of stock	£3.28 £2.73
12	ST9455 021 1131	Circlip 12x1	Out of stock	£0.76 £0.63
13	ST0000 953 1001	Stud	In stock	£2.54 £2.12
14	ST4147 641 0800	Retaining plug	Out of stock	£2.52 £2.10
15	ST4128 717 2704	Guard ring	Out of stock	£14.08 £11.73
16	ST9022 399 0950	Spline screw IS-M5x10	Out of stock	£0.86 £0.72
17	ST0000 790 6105	Screw assy. M6	Out of stock	£2.65 £2.21
20	ST4147 710 3800	Thrust plate	In stock	£17.96 £14.97
21	ST4119 717 2800	Guard washer	Out of stock	£6.24 £5.20
22	ST4128 713 1600	Thrust washer	In stock	£7.32 £6.10
23	ST4119 713 3100	Rider plate	In stock	£10.60 £8.83
24	ST4119 642 7600	Collar nut M12x1.5 l/h thread	In stock	£5.17 £4.31
25	ST4116 713 3100	Rider plate	Out of stock	£7.93 £6.61
26	ST4116 717 2702	Guard ring	Out of stock	£14.34 £11.95
27	ST0781 120 1117	Gearbox grease (80g tube)	In stock	£9.12 £7.60
28	ST0781 120 1118	Gear lubricant 225 g	In stock	£24.10 £20.08
