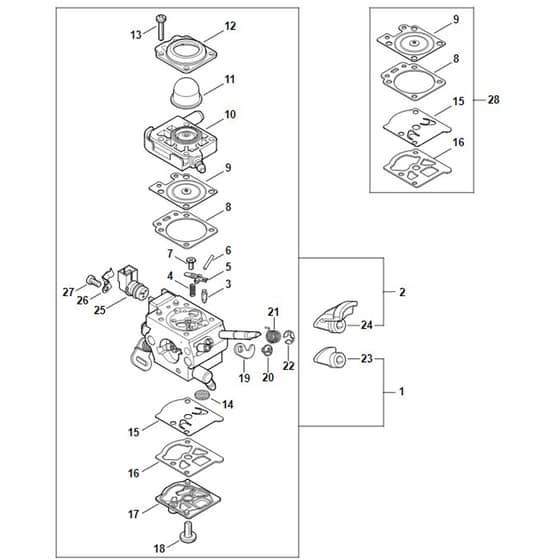

Stihl FS460 C-EM - Carburetor Wtf-7, Wtf-12 - Parts Diagram

Description

Stihl FS460 C-EM - Carburetor Wtf-7, Wtf-12 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4147 120 0608 Available to backorder	Carburetor WTF-12A (Contains 3 - 23 + 25 - 27)	£181.68 £151.40
2	ST4147 120 0603 Available to backorder	Carburetor WTF-7E (Contains 3 - 22 + 24 - 27)	£181.68 £151.40
3	ST4116 121 5100 Available to backorder	Inlet needle	£10.78 £8.98
4	ST4147 122 3001 Available to backorder	Spring	£2.32 £1.93
5	ST1121 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
6	ST1113 121 9200 Available to backorder	Spindle	£1.32 £1.10
7	ST1121 122 7103 Available to backorder	Round head screw	£2.54 £2.12
8	ST4133 129 0901 Available to backorder	Gasket	£2.20 £1.83
9	ST4147 121 4700 Available to backorder	Metering diaphragm	£14.96 £12.47
10	ST4147 120 2201 Available to backorder	Flange	£34.22 £28.52
11	ST4133 121 2700 Available to backorder	Cap	£5.62 £4.68
12	ST4133 121 0801 Available to backorder	End cover	£18.68 £15.57
13	ST4147 122 7100 Available to backorder	Screw	£7.26 £6.05
14	ST1114 121 7800 Available to backorder	Strainer	£3.30 £2.75
15	ST1121 121 4801 Available to backorder	Pump diaphragm	£14.96 £12.47
16	ST4147 129 0904 Available to backorder	Gasket	£2.20 £1.83
17	ST1143 120 2600 Available to backorder	Pump cover	£3.20 £2.67
18	ST1114 122 7100 Available to backorder	Screw	£2.54 £2.12
19	ST4147 121 3500 Available to backorder	Throttle lever	£6.50 £5.42
20	ST1121 122 7102 Available to backorder	Round head screw	£3.08 £2.57
21	ST4147 122 3200 Available to backorder	Torsion spring	£4.18 £3.48
22	ST1117 122 9000 Available to backorder	E-clip	£2.08 £1.73
23	ST4147 121 6603 Available to backorder	Lever	£2.54 £2.12
24	ST4147 121 6601 Available to backorder	Lever	£2.74 £2.28
25	ST0000 120 5111 In stock	Solenoid valve	£62.70 £52.25
26	ST0000 121 2300 Available to backorder	Support	£1.88 £1.57
27	ST0000 122 7102 Available to backorder	Screw	£1.66 £1.38
28	ST4147 007 1700 In stock	Set of carburetor parts (Contains 8 + 9 + 15 + 16)	£29.60 £24.67
