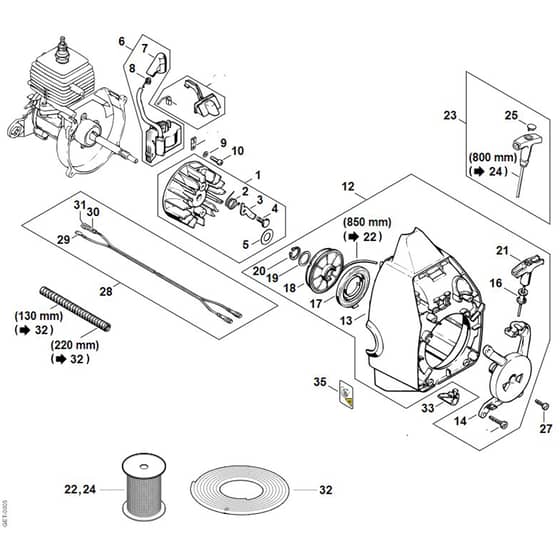

Stihl FS36R - Ignition System, Rewind Starter - Parts Diagram

Name: Stihl FS36R - Ignition System, Rewind Starter - Parts Diagram
SKU: fs36r_ignition_system_rewind_starter-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS36R - Ignition System, Rewind Starter - Parts Diagram

Description

Stihl FS36R - Ignition System, Rewind Starter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4130 400 1250	Flywheel (Contains 2 - 5)	Out of stock	£57.10 £47.58
2	ST4130 998 1400	Torsion spring	Out of stock	£1.34 £1.12
3	ST4130 195 7200	Pawl	Out of stock	£2.33 £1.94
5	ST0000 958 0924	Washer	Out of stock	£1.13 £0.94
6	ST4130 400 1300	Ignition module (Contains 45511)	Out of stock	£107.40 £89.50
7	ST1130 405 1000	Spark plug boot	In stock	£7.19 £5.99
8	ST0000 998 0614	Torsion spring	Out of stock	£1.34 £1.12
9	ST9291 021 0100	Washer 4.3	In stock	£0.48 £0.40
10	ST9022 371 0710	Spline screw IS-M4x20	Out of stock	£1.00 £0.83
12	ST4130 007 1028	Rewind starter kit (Contains 13 - 22)	Out of stock	£81.72 £68.10
13	ST4130 084 1002	Fan housing	Out of stock	£47.38 £39.48
14	ST4130 195 0700	Rewind starter housing	Out of stock	£5.39 £4.49
16	ST4130 084 9100	Bushing	Out of stock	£1.87 £1.56
17	ST4130 195 1600	Rewind spring	Out of stock	£12.95 £10.79
18	ST4130 195 0400	Rope rotor	Out of stock	£9.17 £7.64
19	ST0000 958 1804	Washer	Out of stock	£1.13 £0.94
20	ST9455 621 1670	Circlip 16x1	Out of stock	£0.86 £0.72
21	ST4130 195 3400	Starter grip	Out of stock	£4.10 £3.42
22	ST0000 930 2212	Starter rope Ø 3.5 mm x 60.8 m	Out of stock	£68.28 £56.90
22	ST0000 930 2203	Starter rope Ø 3.5 mm x 30.5 m	Out of stock	£45.92 £38.27
22	ST4130 195 8200	Starter rope Ø 3.5x850 mm	Out of stock	£3.89 £3.24
23	ST0000 190 3400	Starter grip ElastoStart Ø 3 mm (Contains 24 + 25)	Out of stock	£21.88 £18.23
24	ST0000 930 2208	Starter rope Ø 3 mm x 30.5 m	Out of stock	£37.68 £31.40
24	ST0000 195 8200	Starter rope Ø 3x800 mm	Out of stock	£3.13 £2.61
24	ST0000 930 2211	Starter rope Ø 3 mm x 60.8 m	Out of stock	£62.63 £52.19
25	ST0000 195 7000	Cap	Out of stock	£1.76 £1.47
27	ST4130 028 0200	Spline screw TT 4.8x19	Out of stock	£0.91 £0.76
28	ST4130 440 1110	Short circuit wire 600 mm / 23.6" (Contains 29 - 31)	Out of stock	£14.15 £11.79
29	ST0751 030 8454	Spade terminal	Out of stock	£0.67 £0.56
30	ST0751 030 8404	Terminal socket 6.3-1	Out of stock	£0.48 £0.40
32	ST4203 711 7201	Hose 960 mm / 37 13/16"	Out of stock	£3.65 £3.04
33	ST4130 182 2100	Support	Out of stock	£1.13 £0.94
35	ST0000 967 3693	Warning pictogram Filler cap	Out of stock	£0.97 £0.81
