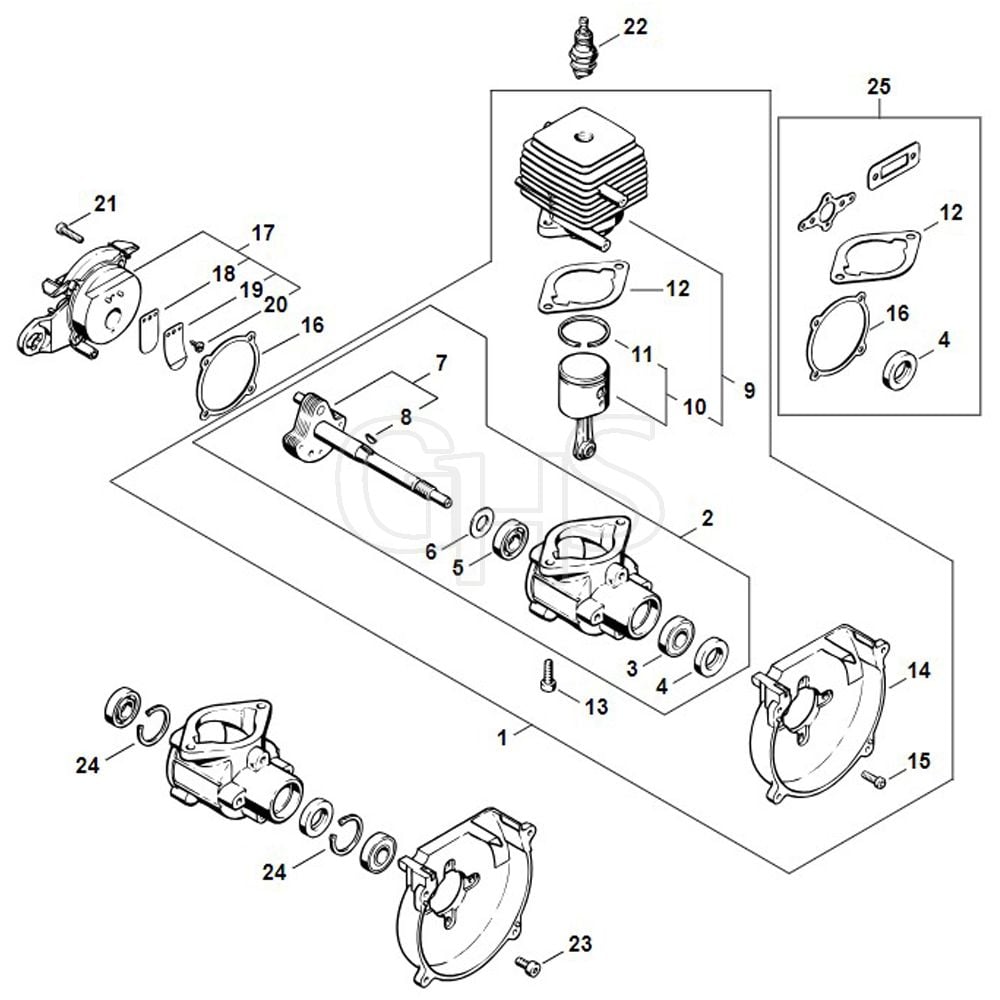

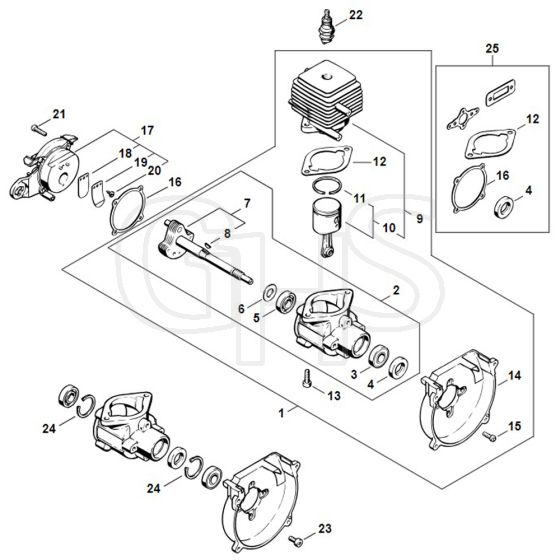

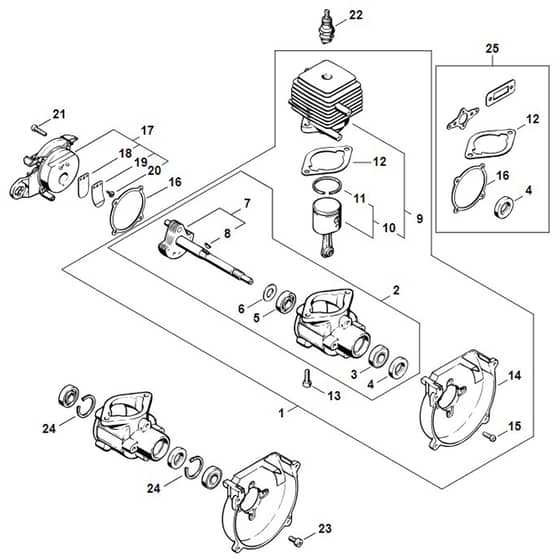

Stihl FS36R - Crankcase, Cylinder - Parts Diagram

Description

	Part No.	Details
1	ST4130 020 0205	Engine (Contains 2 - 15)	Out of stock	£181.20 £151.00
2	ST4130 020 2105	Crankcase (Contains 3 - 8)	Out of stock	£62.33 £51.94
3	ST9503 003 9955	Grooved ball bearing 0.5x1.125x0.312"	Out of stock	£11.04 £9.20
4	ST9633 003 9985	Oil seal	Out of stock	£8.36 £6.97
5	ST9503 003 9957	Grooved ball bearing 0.5x1.125x0.312"	Out of stock	£11.36 £9.47
6	ST9291 021 3932	Washer 23.1x12.8x0.9	Out of stock	£0.78 £0.65
7	ST4130 030 0400	Crankshaft (Contains 8)	Out of stock	£61.66 £51.38
8	ST4130 036 8600	Woodruff key	Out of stock	£0.41 £0.34
9	ST4130 020 1200	Cylinder with piston Ø 35 mm (Contains 45606)	Out of stock	£60.72 £50.60
10	ST4130 030 2000	Piston with connecting rod (Contains 11)	Out of stock	£37.85 £31.54
13	ST9022 341 1310	Screw IS M6x18	Out of stock	£1.00 £0.83
14	ST4130 084 1150	Spiral housing	Out of stock	£25.70 £21.42
15	ST4130 028 0205	Spline screw TT 5.2x14.3	Out of stock	£2.06 £1.72

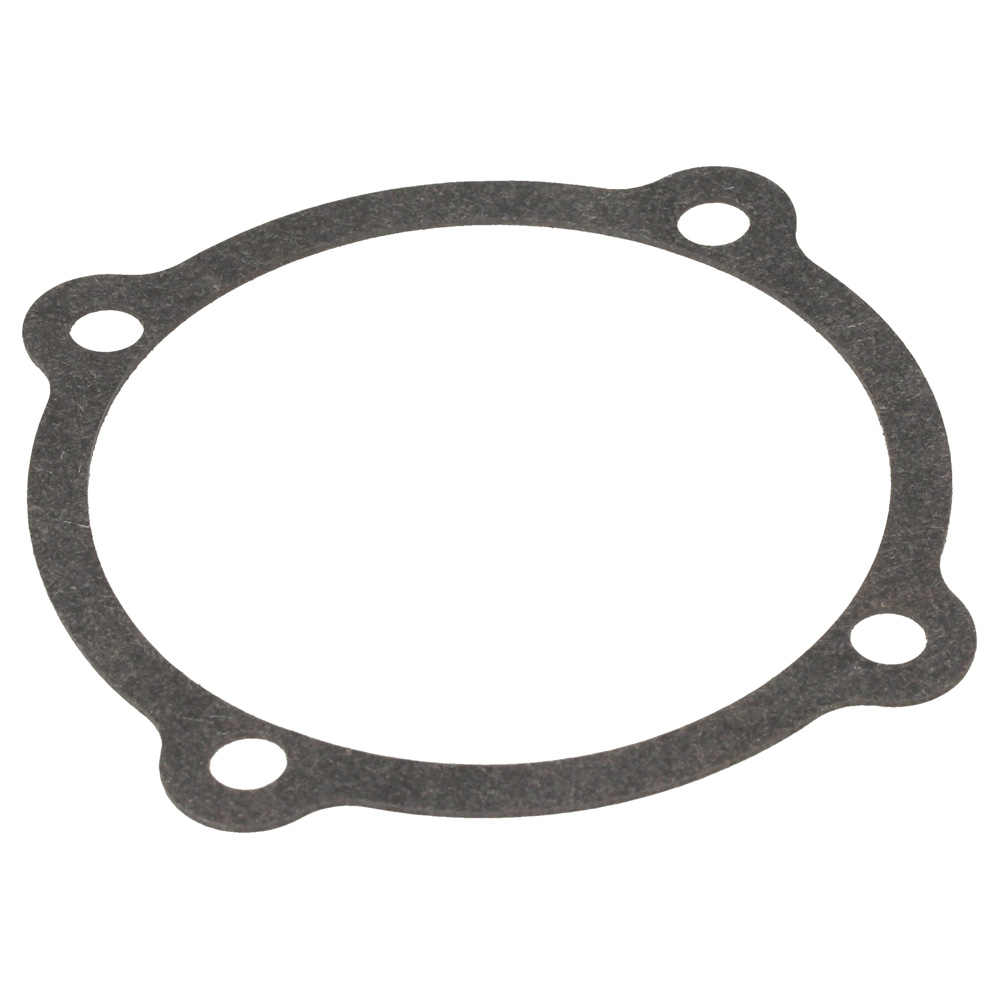

16	ST4130 029 0500	Gasket	In stock	Was £2.06 £1.72 Special Price £0.60 £0.50
17	ST4130 020 0500	Diaphragm carrier (Contains 18 - 20)	Out of stock	£15.29 £12.74
19	ST4130 141 2400	Support plate	Out of stock	£1.82 £1.52
20	ST9099 021 2360	Self-tapping screw 3.5x9.5	Out of stock	£0.86 £0.72
21	ST4130 028 0200	Spline screw TT 4.8x19	Out of stock	£0.91 £0.76
22	2181	Spark plug AC CSR 45	In stock	£5.16 £4.30
23	ST9022 341 1260	Spline screw IS-M6x12	Out of stock	£0.86 £0.72
25	ST4130 007 1050	Set of gaskets (Contains 42708)	Out of stock	£23.89 £19.91
