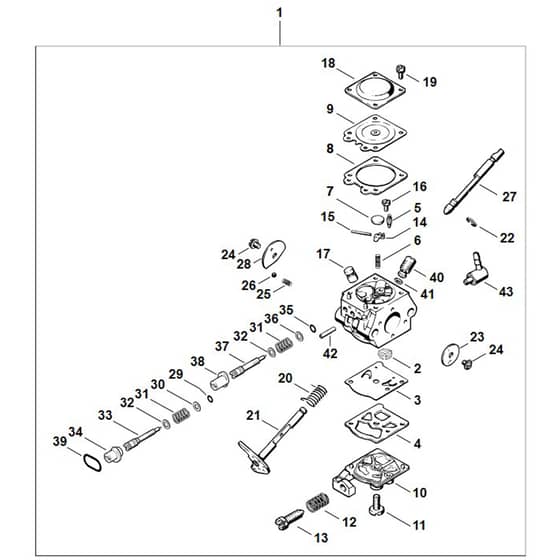

Stihl FS36R - Carburetor Wt-327 - Parts Diagram

Name: Stihl FS36R - Carburetor Wt-327 - Parts Diagram
SKU: fs36r_carburetor_wt_327-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS36R - Carburetor Wt-327 - Parts Diagram

Description

Stihl FS36R - Carburetor Wt-327 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	ST1114 121 7800 Available to backorder	Strainer	£3.30 £2.75
3	ST1121 121 4801 Available to backorder	Pump diaphragm	£14.96 £12.47
4	ST1120 129 0905 Available to backorder	Gasket	£2.20 £1.83
5	ST4116 121 5100 Available to backorder	Inlet needle	£10.78 £8.98
6	ST1120 122 3001 Available to backorder	Spring	£2.32 £1.93
7	ST4117 122 9402 Available to backorder	Plug	£2.08 £1.73
8	ST1120 129 0900 Available to backorder	Gasket	£2.20 £1.83
9	ST1113 121 4705 Available to backorder	Metering diaphragm	£14.96 £12.47
10	ST4117 121 0803 Available to backorder	End cover	£18.68 £15.57
11	ST1114 122 7100 Available to backorder	Screw	£2.54 £2.12
12	ST4117 122 3006 In stock	Spring	£2.32 £1.93
13	ST4117 122 6200 Available to backorder	Idle speed screw	£10.78 £8.98
14	ST1113 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
15	ST1113 121 9200 Available to backorder	Spindle	£1.32 £1.10
16	ST1114 122 7400 Available to backorder	Round head screw	£1.32 £1.10
18	ST1113 121 0800 Available to backorder	End cover	£17.16 £14.30
19	ST1106 122 7400 Available to backorder	Round head screw	£7.82 £6.52
20	ST4117 122 3200 Available to backorder	Torsion spring	£1.13 £0.94
22	ST1117 122 9000 Available to backorder	E-clip	£2.08 £1.73
24	ST1110 122 7400 Available to backorder	Round head screw	£2.74 £2.28
25	ST1116 122 3000 Available to backorder	Spring	£2.47 £2.06
26	ST1116 122 4200 Available to backorder	Ball	£5.10 £4.25
27	ST4130 121 3000 Available to backorder	Choke shaft	£16.44 £13.70
28	ST4130 121 2900 Available to backorder	Choke shutter	£3.46 £2.88
29	ST4124 122 3600 Available to backorder	Sealing ring	£5.94 £4.95
31	ST1115 122 3002 In stock	Spring	£2.32 £1.93
35	ST4130 122 3600 Available to backorder	Sealing ring	£5.94 £4.95
36	ST4130 121 8601 Available to backorder	Washer	£1.22 £1.02
40	ST4130 121 8600 In stock	Washer	£1.10 £0.92
41	ST4130 120 8700 Available to backorder	Control valve	£9.62 £8.02
43	ST4130 122 3900 Available to backorder	Elbow connector	£3.74 £3.12
