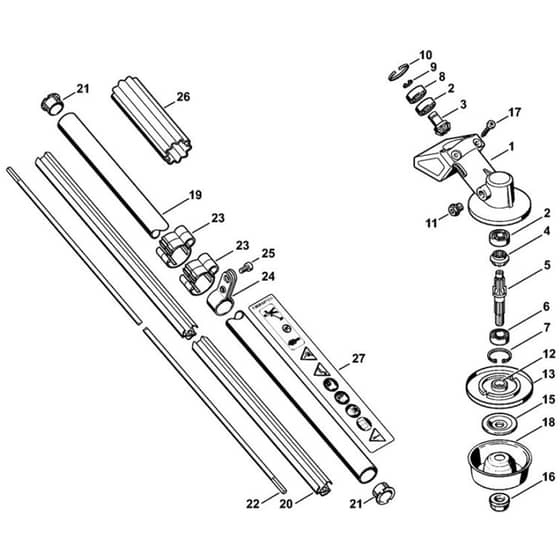

Stihl FS25-4 - Gear Head, Drive Tube Assembly - Parts Diagram

Description

Stihl FS25-4 - Gear Head, Drive Tube Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4130 641 0305 Available to backorder	Gear housing	£98.44 £82.03
0	ST4130 640 7301 Available to backorder	Set of pinions (Contains 45385)	£39.04 £32.53
1	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£8.42 £7.02
2	ST4137 640 0100 Available to backorder	Gearhead (Contains 1 - 17)	£227.40 £189.50
2	ST9503 003 9850 Available to backorder	Grooved ball bearing 609	£10.00 £8.33
5	ST4130 642 0601 Available to backorder	Drive shaft	£36.64 £30.53
6	ST9503 003 5190 Available to backorder	Grooved ball bearing 6001-2RS	£13.30 £11.08
7	ST9456 621 3100 Available to backorder	Circlip 28x1.2	£1.22 £1.02
8	ST9503 003 9853 Available to backorder	Grooved ball bearing 609-2Z	£11.98 £9.98
9	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
10	ST9456 621 2660 In stock	Circlip 24x1.2	£1.00 £0.83
11	ST4119 713 6500 In stock	Plug screw	£3.08 £2.57
12	ST4137 710 3800 In stock	Thrust plate (Contains 13)	£16.84 £14.03
15	ST4130 713 1600 In stock	Thrust washer	£4.18 £3.48
16	ST4126 642 7600 In stock	Collar nut M10x1 l/h thread	£5.06 £4.22
17	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.89 £0.74
18	ST4126 713 3100 Available to backorder	Rider plate	£9.68 £8.07
19	ST4137 710 7108 In stock	Drive tube assembly Ø 25.4 mm / 1" x 1.5 m / 59 1/16" (Contains 20 + 21 + 27)	£66.00 £55.00
20	ST4137 711 7300 In stock	Flexible liner 1455 mm	£12.54 £10.45
21	ST4137 711 2101 In stock	Plug	£0.76 £0.63
22	ST4137 711 3200 In stock	Drive shaft	£49.28 £41.07
23	ST0000 182 2100 Available to backorder	Support Ø 25.4 mm / 1"	£3.64 £3.03
24	ST4140 007 1006 Available to backorder	Hose clamp kit (Contains 25)	£9.02 £7.52
25	ST9022 341 1270 Available to backorder	Screw IS M6x14	£0.88 £0.73
26	ST0000 711 2500 Available to backorder	Sleeve	£7.48 £6.23
27	ST0000 967 7253 In stock	Warning pictogram FS	£2.08 £1.73
