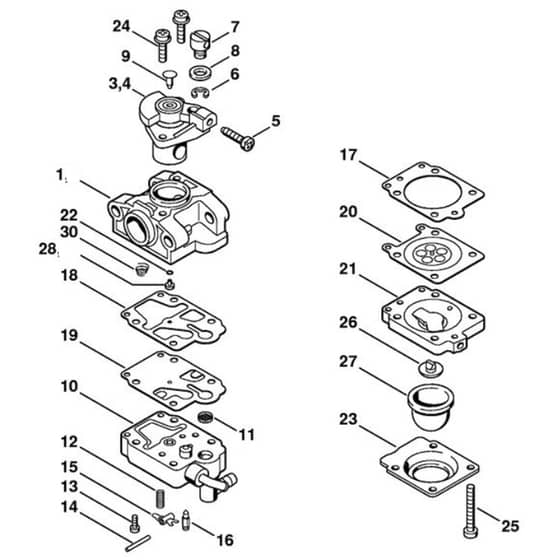

Stihl FS25-4 - Carburetor Wyl-131, Wyl-135 - Parts Diagram

Name: Stihl FS25-4 - Carburetor Wyl-131, Wyl-135 - Parts Diagram
SKU: fs25_4_carburetor_wyl_131_wyl_135-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS25-4 - Carburetor Wyl-131, Wyl-135 - Parts Diagram

Description

Stihl FS25-4 - Carburetor Wyl-131, Wyl-135 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST4170 007 1061 Available to backorder	Set of carburetor parts (Contains 11 - 2)	£49.84 £41.53
0	ST4170 007 1066 Available to backorder	Set of carburetor parts (Contains 17 - 20)	£29.60 £24.67
3	ST4170 120 5000 Available to backorder	Control valve (Contains 4 - 9)	£19.20 £16.00
4	ST4170 120 5005 Available to backorder	Control valve (Contains 5)	£13.28 £11.07
6	ST4211 122 9000 Available to backorder	E-clip	£2.23 £1.86
7	ST4126 121 8900 Available to backorder	Pin	£6.94 £5.78
8	ST4211 121 8600 Available to backorder	Washer	£1.13 £0.94
9	ST4126 122 6900 Available to backorder	Plug	£1.10 £0.92
11	ST1114 121 7800 Available to backorder	Strainer	£3.30 £2.75
12	ST4124 122 3000 Available to backorder	Spring	£1.96 £1.63
13	ST4124 122 7400 Available to backorder	Round head screw	£1.28 £1.07
14	ST1113 121 9200 Available to backorder	Spindle	£1.32 £1.10
15	ST1113 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
16	ST4116 121 5100 Available to backorder	Inlet needle	£10.78 £8.98
17	ST4124 129 0900 Available to backorder	Gasket	£2.40 £2.00
18	ST4170 129 0901 Available to backorder	Gasket	£2.40 £2.00
19	ST4126 121 4800 Available to backorder	Pump diaphragm	£16.84 £14.03
20	ST1113 121 4705 Available to backorder	Metering diaphragm	£14.96 £12.47
21	ST4124 120 2200 Available to backorder	Flange	£10.64 £8.87
22	ST1120 122 3600 Available to backorder	Sealing ring	£5.94 £4.95
23	ST4133 121 0801 Available to backorder	End cover	£18.68 £15.57
25	ST4170 122 7101 Available to backorder	Screw M3x24	£1.76 £1.47
26	ST4133 121 5200 Available to backorder	Valve	£15.62 £13.02
27	ST4133 121 2700 Available to backorder	Cap	£5.62 £4.68
30	ST4170 122 3000 Available to backorder	Spring	£2.47 £2.06
