NP 534 TR/E-B - 2012-2016 - 292155523/12 - Castel Garden Rotary Mower Blade Diagram

Description

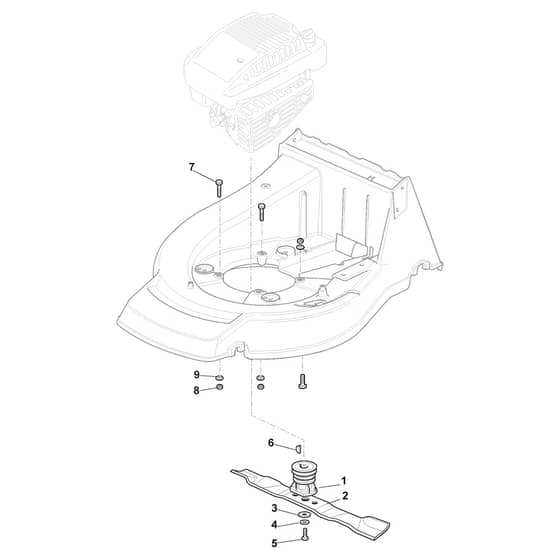

Castel Garden NP 534 TR/E-B Parts Diagram

Product Name - NP 534 TR/E-B 675 series XLC ES R.Start

Model Year - 2012-2016

Model Type - NP 534 TR/E

Art.N - 292155523/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.29 £7.74
2	MO181004366/2 In stock	Blade Stiga Packed into 181004366.2 To 31-8-2018	£15.36 £12.80
2	MO181004381/1 In stock	Blade Standard	£17.10 £14.25
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 Available to backorder	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
