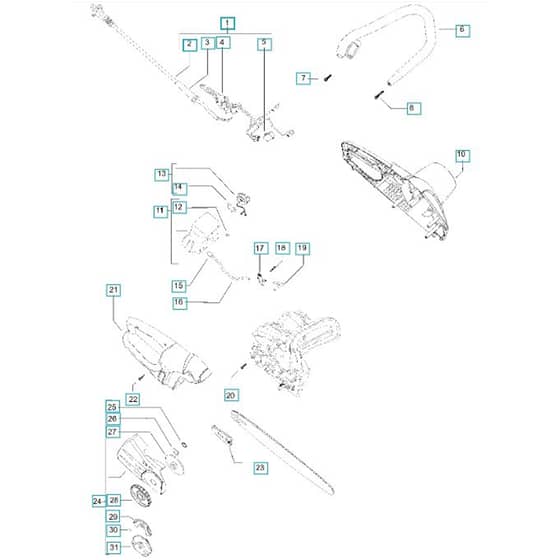

McCulloch PROMAC 2200-16 ASSY UK - 2006-03 - Main Assy (2) Parts Diagram

Description

McCulloch PROMAC 2200-16 ASSY UK - 2006-03 - Main Assy (2) Parts Diagram

	Part No.	Details
1	HV538 24 35-82 Available to backorder	Cable Uk	£41.27 £34.39
2	HV538 24 35-22 Available to backorder	Plug Schuko	£25.64 £21.37
3	HV538 24 10-51 Available to backorder	Sleeve	£7.70 £6.42
5	HV538 24 26-87 Available to backorder	Switch	£15.08 £12.57
6	HV538 24 34-74 Available to backorder	Front Handle	£24.36 £20.30
7	HV503 21 75-20 Available to backorder	Screw Ihscft 5x20	£2.05 £1.71
12	HV538 23 56-58 Available to backorder	Grommet	£8.98 £7.48
13	HV538 24 08-65 Available to backorder	Fuel/Oil Cap Assy	£10.26 £8.55
14	HV538 23 55-10 Available to backorder	O-Ring	£3.82 £3.18
15	HV538 22 50-62 Available to backorder	Oil Filter	£6.40 £5.33
16	HV538 24 34-56 Available to backorder	Oil Hose 30cm	£15.12 £12.60
17	HV538 24 34-53 Available to backorder	Oil Pump	£16.98 £14.15
18	HV538 24 08-62 Available to backorder	Screw 4x18	£1.56 £1.30
19	HV538 00 53-34 Available to backorder	Hose 13+5 cm	£1.67 £1.39
23	HV538 24 34-76 Available to backorder	Chain Tensioner	£10.26 £8.55
24	HV538 24 34-77 Available to backorder	Chain Cover Assy	£31.80 £26.50
25	HV538 24 34-84 Available to backorder	Washer	£2.56 £2.13
27	HV538 24 34-83 Available to backorder	Chain Tensioner	£7.70 £6.42
30	HV538 00 53-67 Available to backorder	Pen	£1.56 £1.30
