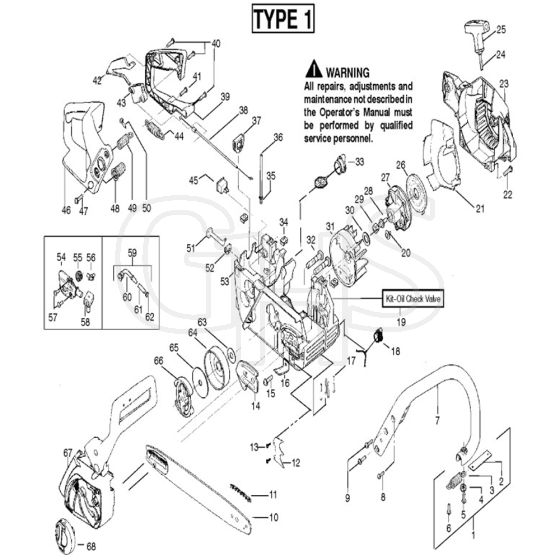

McCulloch MAC CAT 442 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Name: McCulloch MAC CAT 442 - 2008-05 - Chassis & Enclosures (1) Parts Diagram
SKU: mac_cat_442_2008_05_chassis_enclosures_1_-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC CAT 442 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Description

McCulloch MAC CAT 442 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 00 60-36 Available to backorder	Insulator	£24.24 £20.20
5	HV530 01 60-18 Available to backorder	Screw	£2.58 £2.15
6	HV530 01 58-43 Available to backorder	Screw	£2.06 £1.72
7	HV545 04 80-01 Available to backorder	Handle	£95.64 £79.70
8	HV530 01 59-40 Available to backorder	Screw	£2.34 £1.95
11	HV577 61 51-27 Available to backorder	Saw Chain	£25.43 £21.19
12	HV530 01 43-81 In stock	Felling Dog	£13.42 £11.18
13	HV530 01 58-86 Available to backorder	Screw	£2.06 £1.72
14	HV530 03 82-38 Available to backorder	Plate	£9.72 £8.10
15	HV530 01 58-14 Available to backorder	Screw	£2.06 £1.72
16	HV530 02 98-50 Available to backorder	Chain Catcher	£4.98 £4.15
17	HV530 01 61-32 Available to backorder	Bolt	£5.04 £4.20
19	HV530 07 16-66 Available to backorder	Valve	£19.00 £15.83
20	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
21	HV530 05 57-23 Available to backorder	Partition	£6.16 £5.13
22	HV530 01 58-92 Available to backorder	Screw	£1.63 £1.36
24	HV530 06 92-32 Available to backorder	Starter Rope	£4.20 £3.50
25	HV530 05 64-02 Available to backorder	Handle	£5.66 £4.72
26	HV545 00 80-15 Available to backorder	Spring	£16.38 £13.65
28	HV530 01 59-20 Available to backorder	Screw	£2.34 £1.95
29	HV530 01 61-34 Available to backorder	Nut	£2.46 £2.05
30	HV530 01 51-27 Available to backorder	Washer	£2.76 £2.30
32	HV530 01 61-33 Available to backorder	Bolt	£5.82 £4.85
33	HV580 94 09-01 In stock	Tank	£9.52 £7.93
34	HV530 01 59-22 Available to backorder	Nut	£1.82 £1.52
35	HV530 02 38-77 Available to backorder	Nipple	£6.94 £5.78
36	HV530 06 92-16 Available to backorder	Fuel Hose	£12.78 £10.65
37	HV530 04 76-31 Available to backorder	Grommet	£5.18 £4.32
39	HV530 04 75-81 Available to backorder	Handle	£26.54 £22.12
40	HV530 01 59-06 Available to backorder	Screw	£1.80 £1.50
43	HV530 03 60-97 Available to backorder	Throttle Trigger	£8.40 £7.00
45	HV530 06 95-72 Available to backorder	Switch	£16.52 £13.77
46	HV530 04 75-82 Available to backorder	Handle	£28.82 £24.02
50	HV530 01 58-75 Available to backorder	Screw	£1.82 £1.52
51	HV530 04 76-05 Available to backorder	Knob	£6.46 £5.38
53	HV530 05 65-96 Available to backorder	Crankcase	£150.66 £125.55
54	HV530 07 12-59 Available to backorder	Oil Pump	£34.98 £29.15
55	HV530 03 78-20 Available to backorder	Worm Gear	£7.66 £6.38
56	HV530 04 94-77 Available to backorder	Elbow	£5.82 £4.85
57	HV545 22 71-01 Available to backorder	Screw	£1.78 £1.48
58	HV530 01 92-06 Available to backorder	Sealing	£7.76 £6.47
59	HV530 04 76-63 Available to backorder	Hose	£13.48 £11.23
61	HV530 05 65-33 Available to backorder	Filter	£8.72 £7.27
64	HV530 04 70-61 Available to backorder	Clutch Drum Assy	£34.44 £28.70
65	HV530 01 56-11 Available to backorder	Washer	£8.40 £7.00
66	HV599 58 86-01 Available to backorder	Clutch	£53.32 £44.43
