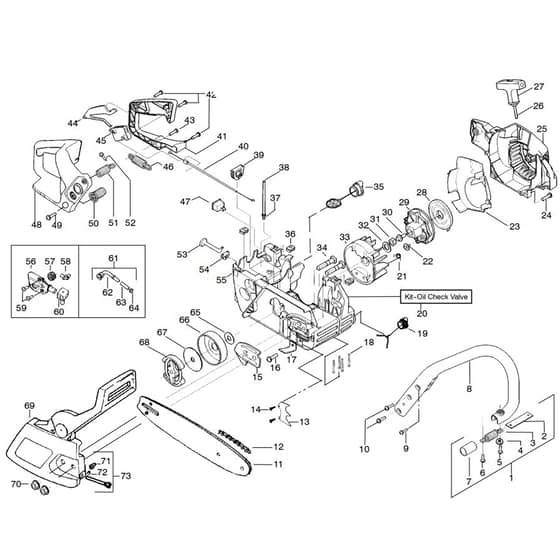

McCulloch MAC CAT 436 - 2008-05 - Chassis & Enclosures (3) Parts Diagram

Name: McCulloch MAC CAT 436 - 2008-05 - Chassis & Enclosures (3) Parts Diagram
SKU: mac_cat_436_2008_05_chassis_enclosures_3_-group
Price: 0.94 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC CAT 436 - 2008-05 - Chassis & Enclosures (3) Parts Diagram

Description

McCulloch MAC CAT 436 - 2008-05 - Chassis & Enclosures (3) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 00 60-36 Out of stock	Insulator	£23.64 £19.70
5	HV530 01 60-18 Out of stock	Screw	£2.40 £2.00
6	HV530 01 58-43 Out of stock	Screw	£1.63 £1.36
8	HV545 04 80-01 Out of stock	Handle	£77.95 £64.96
9	HV530 01 59-40 Out of stock	Screw	£1.84 £1.53
10	HV530 01 58-14 Out of stock	Screw	£1.63 £1.36
11	HV577 61 43-26 Out of stock	Bar	£31.48 £26.23
12	HV577 61 51-22 Out of stock	Saw Chain	£22.81 £19.01
13	HV530 01 43-81 In stock	Felling Dog	£10.76 £8.97
14	HV530 01 58-86 Out of stock	Screw	£1.63 £1.36
15	HV530 03 82-38 Out of stock	Plate	£7.62 £6.35
17	HV530 02 98-50 Out of stock	Chain Catcher	£4.09 £3.41
18	HV530 01 61-32 Out of stock	Bolt	£4.09 £3.41
20	HV530 07 16-66 Out of stock	Valve	£15.17 £12.64
21	HV530 02 38-17 Out of stock	Spring	£2.78 £2.32
22	HV530 01 60-80 Out of stock	Screw	£1.19 £0.99
23	HV530 05 57-23 Out of stock	Partition	£4.98 £4.15
24	HV530 01 58-92 Out of stock	Screw	£1.39 £1.16
26	HV530 06 92-32 Out of stock	Starter Rope	£4.20 £3.50
27	HV530 05 64-02 Out of stock	Handle	£4.76 £3.97
28	HV545 00 80-15 Out of stock	Spring	£13.10 £10.92
30	HV530 01 59-20 Out of stock	Screw	£1.84 £1.53
31	HV530 01 61-34 Out of stock	Nut	£2.02 £1.68
32	HV530 01 51-27 Out of stock	Washer	£2.36 £1.97
34	HV530 01 61-33 Out of stock	Bolt	£4.70 £3.92
35	HV580 94 09-01 In stock	Tank	£9.05 £7.54
36	HV530 01 59-22 Out of stock	Nut	£1.42 £1.18
37	HV530 02 38-77 Out of stock	Nipple	£5.77 £4.81
38	HV530 06 92-16 Out of stock	Fuel Hose	£10.25 £8.54
39	HV530 04 76-31 Out of stock	Grommet	£4.24 £3.53
41	HV530 04 75-81 Out of stock	Handle	£21.25 £17.71
42	HV530 01 59-06 Out of stock	Screw	£1.39 £1.16
45	HV530 03 60-97 Out of stock	Throttle Trigger	£6.64 £5.53
47	HV530 06 95-72 Out of stock	Switch	£13.03 £10.86
48	HV530 04 75-82 Out of stock	Handle	£23.62 £19.68
52	HV530 01 58-75 Out of stock	Screw	£1.39 £1.16
53	HV530 04 76-05 Out of stock	Knob	£5.33 £4.44
54	HV530 04 90-05 Out of stock	Guide	£3.31 £2.76
55	HV530 05 65-97 Out of stock	Chassis	£149.42 £124.52
56	HV530 07 12-59 Out of stock	Oil Pump	£28.42 £23.68
57	HV530 03 78-20 Out of stock	Worm Gear	£6.43 £5.36
58	HV530 04 94-77 Out of stock	Elbow	£4.68 £3.90
59	HV530 01 60-64 Out of stock	Screw	£1.13 £0.94
60	HV530 01 92-06 Out of stock	Sealing	£6.22 £5.18
61	HV530 04 76-63 In stock	Hose	£10.97 £9.14
63	HV530 05 65-33 Out of stock	Filter	£7.14 £5.95
65	HV530 01 59-07 Out of stock	Washer	£2.36 £1.97
66	HV530 04 70-61 In stock	Clutch Drum Assy	£27.74 £23.12
67	HV530 01 56-11 Out of stock	Washer	£6.78 £5.65
68	HV599 58 86-01 Out of stock	Clutch	£51.79 £43.16
69	HV545 13 99-02 Out of stock	Chain Brake	£69.00 £57.50
70	HV530 01 59-17 Out of stock	Nut	£2.35 £1.96
71	HV530 01 58-26 Out of stock	Pen	£1.39 £1.16
72	HV530 03 85-93 Out of stock	Retainer	£1.93 £1.61
73	HV530 06 96-11 Out of stock	Retainer	£5.78 £4.82
