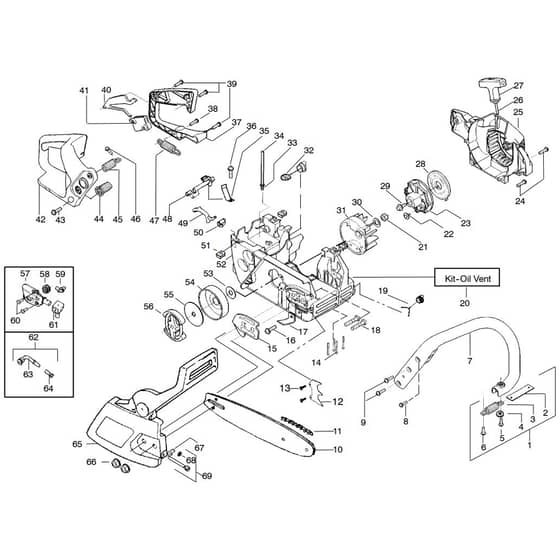

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (4) Parts Diagram

Name: McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (4) Parts Diagram
SKU: mac_cat_435_2008_05_chassis_enclosures_4_-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (4) Parts Diagram

Description

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (4) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 00 60-36	Insulator	Out of stock	£24.24 £20.20
5	HV530 01 60-18	Screw	Out of stock	£2.46 £2.05
6	HV530 01 58-43	Screw	Out of stock	£1.99 £1.66
7	HV545 04 80-01	Handle	Out of stock	£85.32 £71.10
8	HV530 01 59-40	Screw	Out of stock	£1.98 £1.65
10	HV577 61 43-26	Bar	Out of stock	£31.48 £26.23
12	HV577 61 51-22	Saw Chain	Out of stock	£23.40 £19.50
13	HV577 61 51-27	Saw Chain	Out of stock	£26.70 £22.25
14	HV530 01 43-81	Felling Dog	In stock	£11.34 £9.45
15	HV530 01 64-39	Screw	Out of stock	£1.39 £1.16
16	HV530 01 61-32	Bolt	Out of stock	£4.86 £4.05
17	HV530 03 82-38	Plate	Out of stock	£9.34 £7.78
18	HV530 01 58-14	Screw	Out of stock	£1.74 £1.45
19	HV530 02 98-50	Chain Catcher	Out of stock	£4.32 £3.60
20	HV530 01 61-33	Bolt	Out of stock	£5.60 £4.67
22	HV530 07 16-66	Valve	Out of stock	£18.25 £15.21
23	HV530 01 61-34	Nut	Out of stock	£2.36 £1.97
24	HV530 01 60-80	Screw	Out of stock	£1.51 £1.26
26	HV530 01 58-92	Screw	Out of stock	£1.63 £1.36
27	HV530 04 93-35	Starter Housing	Out of stock	£34.80 £29.00
28	HV530 06 92-32	Starter Rope	Out of stock	£4.20 £3.50
29	HV530 01 59-20	Screw	Out of stock	£2.23 £1.86
30	HV530 01 51-27	Washer	Out of stock	£2.75 £2.29
32	HV580 94 09-01	Tank	In stock	£9.05 £7.54
33	HV530 02 38-77	Nipple	Out of stock	£6.85 £5.71
34	HV530 06 92-16	Fuel Hose	Out of stock	£10.97 £9.14
35	HV530 01 61-49	Spring	Out of stock	£3.35 £2.79
36	HV530 01 57-75	Screw	Out of stock	£2.23 £1.86
37	HV530 04 75-81	Handle	Out of stock	£25.49 £21.24
38	HV530 01 58-86	Screw	Out of stock	£1.99 £1.66
39	HV530 01 59-06	Screw	Out of stock	£1.74 £1.45
41	HV530 03 60-97	Throttle Trigger	Out of stock	£8.09 £6.74
42	HV530 04 75-82	Handle	Out of stock	£27.71 £23.09
46	HV530 01 58-75	Screw	Out of stock	£1.74 £1.45
48	HV530 05 74-73	Lever	Out of stock	£8.45 £7.04
49	HV530 05 74-74	Lever	Out of stock	£3.84 £3.20
50	HV530 04 90-05	Guide	Out of stock	£3.89 £3.24
51	HV530 01 59-22	Nut	Out of stock	£1.74 £1.45
53	HV530 01 59-07	Washer	Out of stock	£2.41 £2.01
54	HV530 04 70-61	Clutch Drum Assy	Out of stock	£36.17 £30.14
55	HV530 01 56-11	Washer	Out of stock	£6.85 £5.71
56	HV599 58 86-01	Clutch	Out of stock	£52.82 £44.02
57	HV530 07 12-59	Oil Pump	Out of stock	£33.60 £28.00
58	HV530 03 78-20	Worm Gear	Out of stock	£7.55 £6.29
59	HV530 04 94-77	Elbow	Out of stock	£5.62 £4.68
60	HV530 01 60-64	Screw	Out of stock	£1.15 £0.96
61	HV530 01 92-06	Sealing	Out of stock	£7.46 £6.22
62	HV530 04 76-63	Hose	In stock	Was £10.97 £9.14 Special Price £8.86 £7.38
64	HV530 05 65-33	Screen	Out of stock	£8.41 £7.01
65	HV545 13 99-01	Chain Brake	Out of stock	£65.52 £54.60
66	HV530 01 59-17	Nut	Out of stock	£2.35 £1.96
67	HV530 01 58-26	Pen	In stock	£1.75 £1.46
68	HV530 03 85-93	Retainer	In stock	£1.94 £1.62
69	HV530 06 96-11	Retainer	Out of stock	£5.93 £4.94
