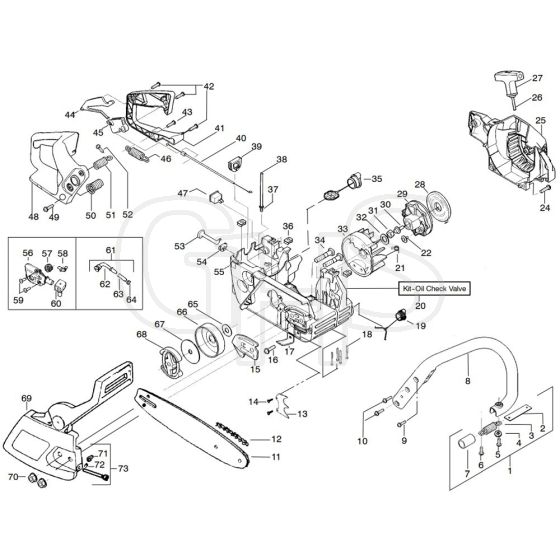

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Name: McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (1) Parts Diagram
SKU: mac_cat_435_2008_05_chassis_enclosures_1_-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Description

McCulloch MAC CAT 435 - 2008-05 - Chassis & Enclosures (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 00 60-36 Out of stock	Insulator	£24.24 £20.20
5	HV530 01 60-18 Out of stock	Screw	£2.46 £2.05
6	HV530 01 58-43 Out of stock	Screw	£1.99 £1.66
8	HV545 04 80-01 Out of stock	Handle	£85.32 £71.10
9	HV530 01 59-40 Out of stock	Screw	£1.98 £1.65
10	HV530 01 58-14 Out of stock	Screw	£1.74 £1.45
11	HV577 61 43-26 Out of stock	Bar	£31.48 £26.23
12	HV577 61 51-22 Out of stock	Saw Chain	£23.40 £19.50
13	HV530 01 43-81 In stock	Felling Dog	£11.34 £9.45
14	HV530 01 58-86 Out of stock	Screw	£1.99 £1.66
15	HV530 03 82-38 Out of stock	Plate	£9.34 £7.78
17	HV530 02 98-50 Out of stock	Chain Catcher	£4.32 £3.60
18	HV530 01 61-32 Out of stock	Bolt	£4.86 £4.05
20	HV530 07 16-66 Out of stock	Valve	£18.25 £15.21
21	HV530 02 38-17 Out of stock	Spring	£3.23 £2.69
22	HV530 01 60-80 Out of stock	Screw	£1.51 £1.26
24	HV530 01 58-92 Out of stock	Screw	£1.63 £1.36
25	HV530 04 93-35 Out of stock	Starter Housing	£34.80 £29.00
26	HV530 06 92-32 Out of stock	Starter Rope	£4.20 £3.50
27	HV530 05 64-02 Out of stock	Handle	£5.66 £4.72
28	HV545 00 80-15 Out of stock	Spring	£15.72 £13.10
30	HV530 01 59-20 Out of stock	Screw	£2.23 £1.86
31	HV530 01 61-34 Out of stock	Nut	£2.36 £1.97
32	HV530 01 51-27 Out of stock	Washer	£2.75 £2.29
34	HV530 01 61-33 Out of stock	Bolt	£5.60 £4.67
35	HV580 94 09-01 In stock	Tank	£9.05 £7.54
36	HV530 01 59-22 Out of stock	Nut	£1.74 £1.45
37	HV530 02 38-77 Out of stock	Nipple	£6.85 £5.71
38	HV530 06 92-16 Out of stock	Fuel Hose	£10.97 £9.14
39	HV530 04 76-31 Out of stock	Grommet	£4.97 £4.14
41	HV530 04 75-81 Out of stock	Handle	£25.49 £21.24
42	HV530 01 59-06 Out of stock	Screw	£1.74 £1.45
45	HV530 03 60-97 Out of stock	Throttle Trigger	£8.09 £6.74
47	HV530 06 95-72 Out of stock	Switch	£16.73 £13.94
48	HV530 04 75-82 Out of stock	Handle	£27.71 £23.09
52	HV530 01 58-75 Out of stock	Screw	£1.74 £1.45
53	HV530 04 76-05 Out of stock	Knob	£6.20 £5.17
54	HV530 04 90-05 Out of stock	Guide	£3.89 £3.24
55	HV530 05 65-96 Out of stock	Crankcase	£134.40 £112.00
56	HV530 07 12-59 Out of stock	Oil Pump	£33.60 £28.00
57	HV530 03 78-20 Out of stock	Worm Gear	£7.55 £6.29
58	HV530 04 94-77 Out of stock	Elbow	£5.62 £4.68
59	HV530 01 60-64 Out of stock	Screw	£1.15 £0.96
60	HV530 01 92-06 Out of stock	Sealing	£7.46 £6.22
61	HV530 04 76-63 In stock	Hose	Was £10.97 £9.14 Special Price £8.86 £7.38
63	HV530 05 65-33 Out of stock	Filter	£8.41 £7.01
66	HV530 04 70-61 Out of stock	Clutch Drum Assy	£36.17 £30.14
67	HV530 01 56-11 Out of stock	Washer	£7.08 £5.90
68	HV599 58 86-01 Out of stock	Clutch	£52.82 £44.02
69	HV545 13 99-01 Out of stock	Chain Brake	£65.52 £54.60
70	HV530 01 59-17 Out of stock	Nut	£2.35 £1.96
71	HV530 01 58-26 In stock	Pen	£1.75 £1.46
72	HV530 03 85-93 In stock	Retainer	£1.94 £1.62
73	HV530 06 96-11 Out of stock	Retainer	£5.93 £4.94
