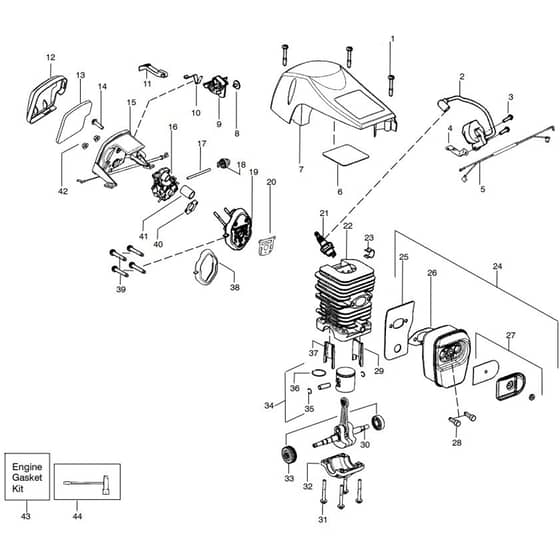

McCulloch MAC 7-40 - MAC 740 - 2011-03 - Engine (2) Parts Diagram

Description

McCulloch MAC 7-40 - MAC 740 - 2011-03 - Engine (2) Parts Diagram

	Part No.	Details
1	HV530 01 61-53 Available to backorder	Screw	£2.05 £1.71
3	HV530 01 64-32 Available to backorder	Screw	£2.09 £1.74
4	HV530 05 86-61 Available to backorder	Plate	£2.60 £2.17
5	HV530 05 79-43 Available to backorder	Assembly	£10.90 £9.08
7	HV530 05 78-72 Available to backorder	Hub Cap (1+6)	£43.57 £36.31
8	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
9	HV530 05 78-91 Available to backorder	Lever	£8.34 £6.95
10	HV530 05 79-08 Available to backorder	Spring	£3.32 £2.77
11	HV530 05 93-99 Available to backorder	Choke Control	£6.40 £5.33
12	HV530 05 90-01 Available to backorder	Air Filter Cover	£8.34 £6.95
13	HV530 05 78-69 In stock	Air Filter	£7.73 £6.44
16	HV545 07 06-01 Available to backorder	Carburettor (18)	£84.48 £70.40
17	HV530 06 92-47 In stock	Hose	£9.36 £7.80
18	HV530 04 77-21 Available to backorder	Purge	£12.97 £10.81
19	HV530 07 18-89 Available to backorder	Kit (20+38+41)	£30.14 £25.12
20	HV530 07 18-94 Available to backorder	Kit	£19.69 £16.41
21	9494 In stock	Spark Plug Rcj-7Y	£3.60 £3.00
22	HV530 07 18-84 Available to backorder	Kit (29+37)	£81.96 £68.30
24	HV545 00 60-07 Available to backorder	Muffler (25+26+27+28)	£30.48 £25.40
27	HV545 08 17-01 Available to backorder	Spark Arrester	£6.85 £5.71
28	HV530 01 63-38 Available to backorder	Bolt	£2.14 £1.78
29	HV545 01 53-01 Available to backorder	Insert Lh	£5.05 £4.21
33	HV530 05 63-63 Available to backorder	Bearing	£7.39 £6.16
34	HV530 07 18-83 Available to backorder	Kit (35+36)	£61.62 £51.35
35	HV530 01 56-97 Available to backorder	Locking Ring	£0.77 £0.64
36	HV545 16 04-01 Available to backorder	Piston Ring	£7.14 £5.95
37	HV545 01 54-01 Available to backorder	Insert Rh	£5.18 £4.32
39	HV530 01 64-26 Available to backorder	Screw	£2.30 £1.92
41	HV530 05 79-26 Available to backorder	Tube	£7.70 £6.42
42	HV530 01 61-01 Available to backorder	Nut	£1.56 £1.30
44	HV530 03 11-35 Available to backorder	Wrench	£4.75 £3.96
