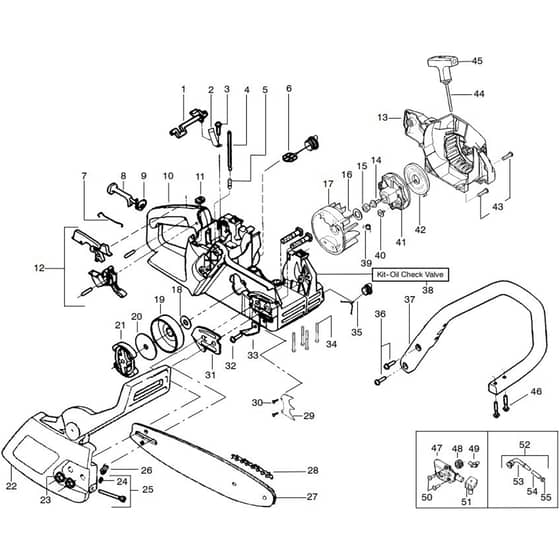

McCulloch MAC 325 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

Name: McCulloch MAC 325 - 2008-05 - Chassis & Enclosures (2) Parts Diagram
SKU: mac_325_2008_05_chassis_enclosures_2_-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC 325 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

Description

McCulloch MAC 325 - 2008-05 - Chassis & Enclosures (2) Parts Diagram

ELECTRAMAC 275, ELECTRAMAC 280, PREFIX 08 , 953900729, 953900801, 2007-09

Be the first to review this product

0 product questions

	Part No.	Details
2	HV530 01 61-49 Available to backorder	Spring	£3.48 £2.90
3	HV530 01 57-75 Available to backorder	Screw	£2.34 £1.95
4	HV530 06 92-16 Available to backorder	Fuel Hose	£12.78 £10.65
5	HV530 02 38-77 Available to backorder	Nipple	£6.94 £5.78
6	HV580 94 09-01 In stock	Tank	£9.52 £7.93
8	HV530 04 79-89 Available to backorder	Choke Control	£5.22 £4.35
11	HV530 01 59-22 Available to backorder	Nut	£1.82 £1.52
13	HV530 04 93-35 Available to backorder	Starter Housing	£36.22 £30.18
14	HV530 01 59-20 Available to backorder	Screw	£2.34 £1.95
15	HV530 01 61-34 Available to backorder	Nut	£2.46 £2.05
16	HV530 01 51-27 Available to backorder	Washer	£2.76 £2.30
19	HV530 04 70-61 Available to backorder	Clutch Drum Assy	£34.44 £28.70
20	HV530 01 56-11 Available to backorder	Washer	£8.40 £7.00
21	HV599 58 86-01 Available to backorder	Clutch	£53.32 £44.43
22	HV545 13 99-01 Available to backorder	Chain Brake	£73.48 £61.23
23	HV530 01 59-17 In stock	Nut	£2.88 £2.40
24	HV530 03 85-93 In stock	Retainer	£2.34 £1.95
25	HV530 06 96-11 Available to backorder	Retainer	£7.12 £5.93
26	HV530 01 58-26 In stock	Pen	£1.76 £1.47
28	HV577 61 51-27 Available to backorder	Saw Chain	£25.43 £21.19
29	HV530 01 43-81 In stock	Felling Dog	£13.42 £11.18
30	HV530 01 58-86 Available to backorder	Screw	£2.06 £1.72
31	HV530 03 82-38 Available to backorder	Plate	£9.72 £8.10
32	HV530 01 58-14 Available to backorder	Screw	£2.06 £1.72
33	HV530 02 98-50 Available to backorder	Chain Catcher	£4.98 £4.15
34	HV530 01 61-32 Available to backorder	Bolt	£5.04 £4.20
38	HV530 07 16-66 Available to backorder	Valve	£19.00 £15.83
39	HV530 02 38-17 Available to backorder	Spring	£3.36 £2.80
40	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
42	HV545 00 80-15 Available to backorder	Spring	£16.38 £13.65
43	HV530 01 58-92 Available to backorder	Screw	£1.63 £1.36
44	HV530 06 92-32 Available to backorder	Starter Rope	£4.20 £3.50
45	HV530 05 64-02 Available to backorder	Handle	£5.66 £4.72
46	HV530 01 59-40 Available to backorder	Screw	£2.34 £1.95
47	HV530 07 12-59 Available to backorder	Oil Pump	£34.98 £29.15
48	HV530 03 78-20 Available to backorder	Worm Gear	£7.66 £6.38
49	HV530 04 94-77 Available to backorder	Elbow	£5.82 £4.85
50	HV545 22 71-01 Available to backorder	Screw	£1.78 £1.48
51	HV530 01 92-06 Available to backorder	Sealing	£7.76 £6.47
52	HV530 04 76-63 Available to backorder	Hose	£13.48 £11.23
54	HV530 05 65-33 Available to backorder	Filter	£8.72 £7.27
