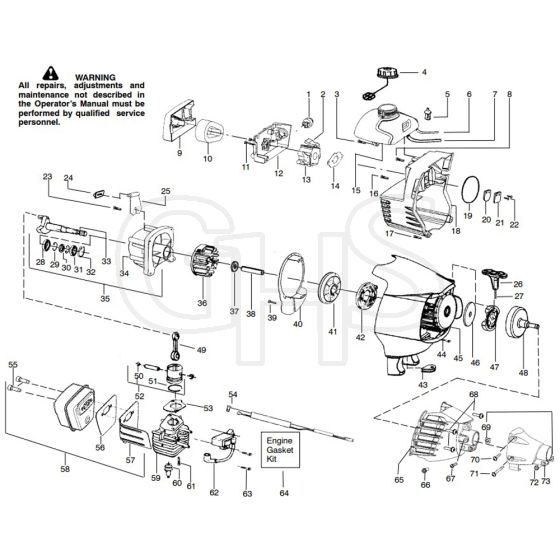

McCulloch MAC 320 B GT - 2009-10 - Engine Parts Diagram

Name: McCulloch MAC 320 B GT - 2009-10 - Engine Parts Diagram
SKU: mac_320_b_gt_2009_10_engine-group
Price: 0.69 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC 320 B GT - 2009-10 - Engine Parts Diagram

Description

McCulloch MAC 320 B GT - 2009-10 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 04 77-21 Available to backorder	Purge	£15.64 £13.03
2	HV530 07 17-17 Available to backorder	Choke Control	£6.46 £5.38
3	HV530 01 58-43 Available to backorder	Screw	£2.06 £1.72
4	HV578 93 16-04 Available to backorder	Tank	£17.92 £14.93
5	HV530 09 56-46 In stock	Filter	£8.16 £6.80
6	HV530 06 92-47 In stock	Hose	£8.89 £7.41
7	HV530 06 92-16 Available to backorder	Fuel Hose	£12.78 £10.65
9	HV545 00 05-01 Available to backorder	Cover	£15.54 £12.95
10	HV545 08 23-01 Available to backorder	Air Filter	£8.00 £6.67
11	HV530 01 58-49 Available to backorder	Screw	£3.12 £2.60
13	HV545 00 60-17 Available to backorder	Kit	£73.28 £61.07
14	HV545 03 01-02 Available to backorder	Kit	£19.24 £16.03
16	HV530 01 57-71 Available to backorder	Screw	£2.84 £2.37
17	HV530 01 59-52 Available to backorder	Screw	£1.82 £1.52
20	HV530 02 75-93 Available to backorder	Reed	£1.72 £1.43
22	HV545 22 71-01 Available to backorder	Screw	£1.78 £1.48
23	HV530 01 58-75 Available to backorder	Screw	£1.82 £1.52
25	HV530 05 49-41 Available to backorder	Ret.-Fuel Tank	£0.83 £0.69
27	HV545 05 04-09 Available to backorder	Kit	£7.06 £5.88
28	HV545 08 16-01 Available to backorder	Bearing	£19.64 £16.37
30	HV530 01 91-58 Available to backorder	Sealing Ring	£5.12 £4.27
34	HV545 08 19-01 Available to backorder	Crankcase Assy	£85.16 £70.97
37	HV530 01 64-63 Available to backorder	Washer	£2.58 £2.15
39	HV530 01 57-75 Available to backorder	Screw	£2.34 £1.95
40	HV545 11 52-01 Available to backorder	Baffle Plate	£6.02 £5.02
41	HV545 05 04-08 Available to backorder	Kit	£43.88 £36.57
42	HV545 00 80-14 Available to backorder	Spring	£19.00 £15.83
44	HV530 01 63-86 Available to backorder	Screw	£1.78 £1.48
45	HV530 05 52-48 Available to backorder	Housing	£86.40 £72.00
46	HV530 09 41-89 Available to backorder	Washer	£10.36 £8.63
47	HV530 05 51-22 Available to backorder	Clutch Assy	£54.68 £45.57
48	HV530 15 02-47 Available to backorder	Clutch Drum	£52.54 £43.78
49	HV530 01 09-60 Available to backorder	Connecting Rod	£52.34 £43.62
50	HV530 01 51-62 Available to backorder	Circlip	£2.34 £1.95
52	HV530 07 19-98 Available to backorder	Kit	£68.78 £57.32
54	HV530 05 88-46 Available to backorder	Assembly	£7.06 £5.88
55	HV530 01 63-87 Available to backorder	Screw	£2.84 £2.37
57	HV545 03 32-01 Available to backorder	Shield	£5.08 £4.23
58	HV545 00 60-16 Available to backorder	Muffler Kit	£72.04 £60.03
59	HV530 01 25-86 Available to backorder	Cylinder Machined 32cc	£78.38 £65.32
60	9411 In stock	Spark Plug	£3.36 £2.80
62	HV501 09 28-01 Available to backorder	Ignition Coil	£51.76 £43.13
68	HV530 01 58-86 Available to backorder	Screw	£2.06 £1.72
70	HV530 01 61-79 Available to backorder	Screw	£1.67 £1.39
71	HV530 01 64-06 Available to backorder	Screw	£2.34 £1.95
