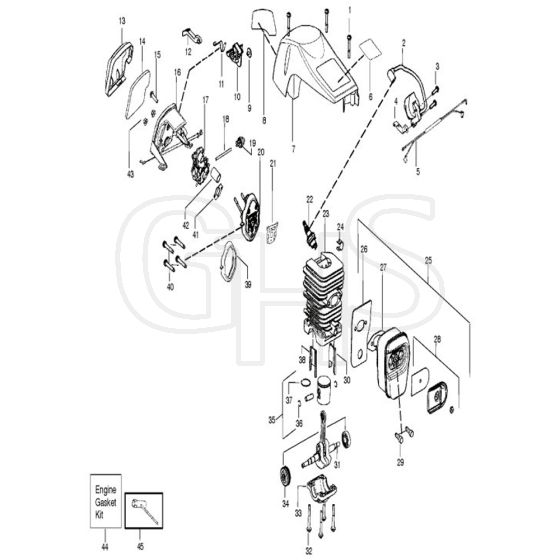

McCulloch CS420T - 2012-07 - Engine Parts Diagram

McCulloch CS420T - 2012-07 - Engine Parts Diagram
McCulloch CS420T - 2012-07 - Engine Parts Diagram

Description

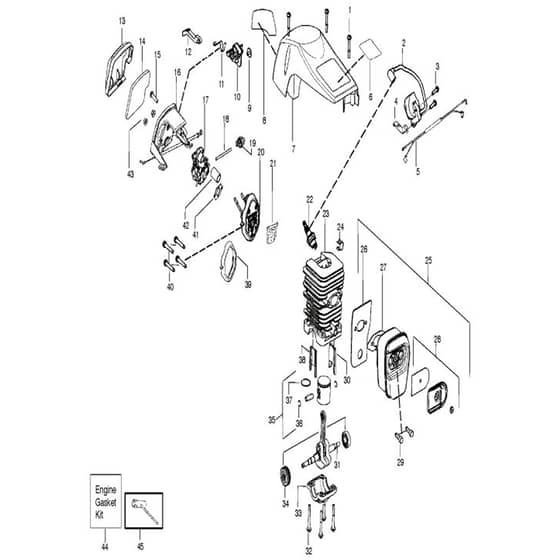

McCulloch CS420T - 2012-07 - Engine Parts Diagram

Ref. Img. Part No. Details
  1 Screw HV530 01 61-53
Screw
Out of stock
£1.99 £1.66

  3 Screw HV530 01 64-32
Screw
Out of stock
£1.84 £1.53

  4 Plate HV530 05 86-61
Plate
Out of stock
£2.50 £2.08

  5 Assembly HV530 05 79-43
Assembly
Out of stock
£10.40 £8.67

  6 Decal HV577 92 37-02
Decal
Out of stock
£4.07 £3.39

  8 Decal HV580 78 38-01
Decal
Out of stock
£4.04 £3.37

  9 Screw HV530 01 60-80
Screw
Out of stock
£1.51 £1.26

  10 Lever HV530 05 78-91
Lever
Out of stock
£7.85 £6.54

  11 Spring HV530 05 79-08
Spring
Out of stock
£3.23 £2.69

  12 Choke Control HV530 05 93-99
Choke Control
Out of stock
£6.25 £5.21

  13 Air Filter Cover HV530 05 90-01
Air Filter Cover
Out of stock
£8.06 £6.72

  14 Air Filter HV530 05 78-69
Air Filter
In stock
£7.92 £6.60

  16 Filter Holder HV545 04 69-01
Filter Holder
Out of stock
£11.94 £9.95

  17 Carburettor HV545 07 06-01
Carburettor
Out of stock
£78.72 £65.60

  18 Fuel Hose HV580 72 71-01
Fuel Hose
Out of stock
£17.72 £14.77

  19 Purge HV530 04 77-21
Purge
Out of stock
£15.12 £12.60

  20 Kit HV530 07 18-89
Kit
Out of stock
£29.35 £24.46

  22 Spark Plug 9494
Spark Plug
In stock
£3.72 £3.10

  23 Kit HV530 07 18-85
Kit
Out of stock
£76.32 £63.60

  25 Muffler HV545 00 60-07
Muffler
Out of stock
£29.46 £24.55

  28 Spark Arrester HV545 08 17-01
Spark Arrester
Out of stock
£6.85 £5.71

  29 Bolt HV530 01 63-38
Bolt
Out of stock
£2.12 £1.77

  30 Insert HV545 01 53-01
Insert
Out of stock
£4.91 £4.09

  31 Crankshaft Assy HV545 11 29-01
Crankshaft Assy
Out of stock
£239.28 £199.40

  34 Bearing HV530 05 63-63
Bearing
Out of stock
£7.46 £6.22

  35 Piston Assy HV530 07 18-82
Piston Assy
Out of stock
£39.73 £33.11

  36 Locking Ring HV530 01 56-97
Locking Ring
Out of stock
£0.74 £0.62

  37 Piston Ring HV545 16 04-01
Piston Ring
Out of stock
£6.94 £5.78

  38 Insert HV545 01 54-01
Insert
Out of stock
£5.03 £4.19

  40 Screw HV530 01 64-26
Screw
Out of stock
£2.23 £1.86

  42 Tube HV530 05 79-26
Tube
Out of stock
£7.46 £6.22

  43 Nut HV530 01 61-01
Nut
Out of stock
£1.55 £1.29

  44 Kit HV530 07 18-94
Kit
Out of stock
£19.86 £16.55

  45 Wrench HV530 03 11-35
Wrench
Out of stock
£4.63 £3.86
