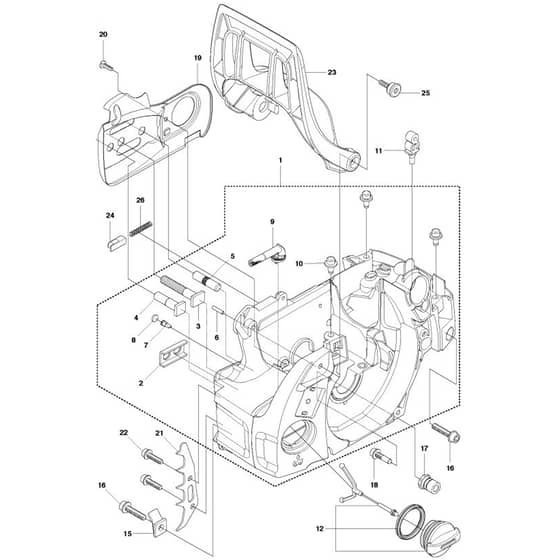

McCulloch CS390 - 2011-07 - Crankcase Parts Diagram

Description

McCulloch CS390 - 2011-07 - Crankcase Parts Diagram

	Part No.	Details
1	HV576 24 78-01 Available to backorder	Crankcase	£117.00 £97.50
2	HV503 87 58-02 Available to backorder	Stiffening Plate (1)	£4.22 £3.52
3	HV503 87 54-02 Available to backorder	Bar Bolt	£5.51 £4.59
4	HV537 33 46-01 Available to backorder	Bar Bolt	£4.86 £4.05
5	HV544 03 64-01 Available to backorder	Bar Bolt (1)	£4.12 £3.43
6	HV503 24 09-05 Available to backorder	Needle Roller (1)	£1.31 £1.09
7	HV530 02 61-19 In stock	Check Valve (1)	£6.40 £5.33
8	HV537 40 35-01 Available to backorder	Filter (1)	£4.50 £3.75
9	HV544 08 33-01 Available to backorder	Oil Screen (1)	£5.78 £4.82
10	HV544 33 16-01 Available to backorder	Guide Pin (1)	£4.12 £3.43
11	HV503 86 93-01 Available to backorder	Support	£5.90 £4.92
12	HV544 11 12-04 Available to backorder	Tank Cap Assy	£9.79 £8.16
15	HV503 88 63-01 Available to backorder	Pin	£5.00 £4.17
16	HV503 21 88-76 Available to backorder	Screw Ihsct	£2.14 £1.78
17	HV501 00 76-01 Available to backorder	Support	£1.94 £1.62
18	HV503 21 51-03 Available to backorder	Screw Ihsct	£2.30 £1.92
19	HV544 28 46-01 Available to backorder	Chain Guide Plate	£10.40 £8.67
20	HV503 21 70-10 Available to backorder	Screw ccrpant	£1.61 £1.34
21	HV544 28 65-01 Available to backorder	Spike	£9.08 £7.57
22	HV503 21 75-20 Available to backorder	Screw Ihscft	£2.05 £1.71
23	HV576 27 41-01 Available to backorder	Hand Guard	£18.29 £15.24
24	HV503 89 24-01 Available to backorder	Lock	£6.29 £5.24
25	HV503 89 30-01 Available to backorder	Screw	£2.60 £2.17
26	HV503 43 65-01 Available to backorder	Position Spring	£3.52 £2.93
