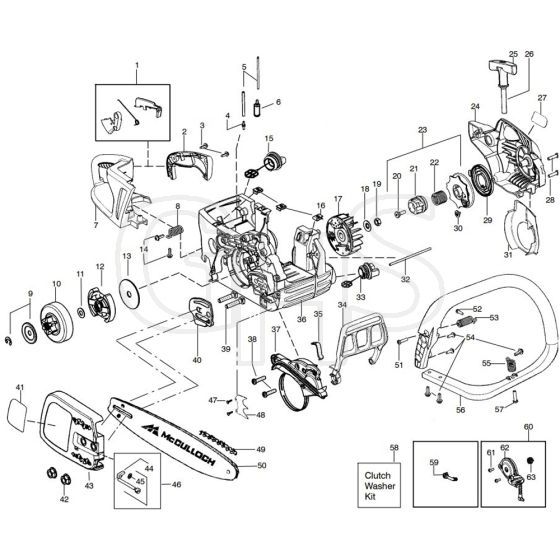

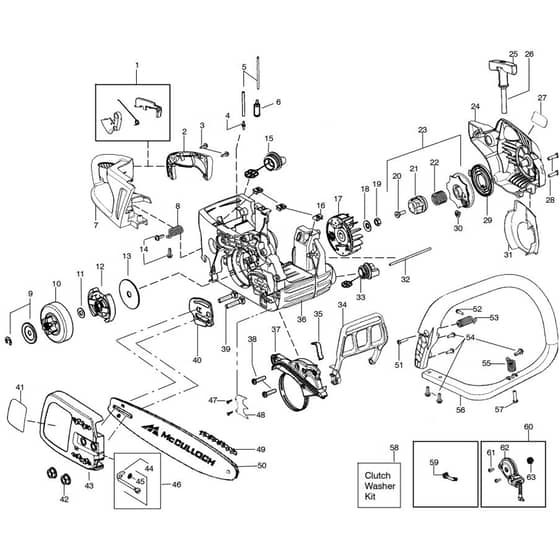

McCulloch CS360 - 2012-06 - Chassis Lower Parts Diagram

Name: McCulloch CS360 - 2012-06 - Chassis Lower Parts Diagram
SKU: cs360_2012_06_chassis_lower-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CS360 - 2012-06 - Chassis Lower Parts Diagram

Description

McCulloch CS360 - 2012-06 - Chassis Lower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV580 86 42-01 Available to backorder	Trigger	£9.06 £7.55
2	HV545 01 19-12 Available to backorder	Cover	£11.80 £9.83
3	HV530 01 64-33 Available to backorder	Screw	£1.82 £1.52
4	HV530 02 38-77 Available to backorder	Nipple	£6.94 £5.78
5	HV580 72 71-01 Available to backorder	Fuel Hose	£17.02 £14.18
6	HV530 09 56-46 In stock	Filter	£8.16 £6.80
7	HV545 01 21-12 Available to backorder	Rear Handle	£32.08 £26.73
8	HV530 05 94-75 Available to backorder	Spring	£4.78 £3.98
10	HV501 62 83-01 Available to backorder	Clutch Drum	£54.68 £45.57
12	HV530 05 79-07 Available to backorder	Clutch Assy	£54.68 £45.57
13	HV530 01 64-19 Available to backorder	Washer	£8.40 £7.00
14	HV530 01 59-06 Available to backorder	Screw	£1.80 £1.50
15	HV580 94 09-01 In stock	Assembly	£9.52 £7.93
16	HV530 01 59-22 Available to backorder	Nut	£1.82 £1.52
17	HV545 01 63-08 Available to backorder	Flywheel Assy	£64.20 £53.50
18	HV530 01 51-27 Available to backorder	Washer	£2.76 £2.30
19	HV530 01 61-34 Available to backorder	Nut	£2.46 £2.05
20	HV530 02 11-79 Available to backorder	Screw	£2.34 £1.95
21	HV530 05 96-77 Available to backorder	Sleeve	£7.44 £6.20
22	HV530 02 11-80 In stock	Spring	£5.68 £4.73
23	HV530 07 19-66 In stock	Starter Pulley	£17.02 £14.18
24	HV545 04 59-01 Available to backorder	Hsg Fan Euro Black	£29.12 £24.27
25	HV580 83 52-01 Available to backorder	Starter Handle	£5.88 £4.90
26	HV530 06 92-32 Available to backorder	Starter Rope	£4.20 £3.50
27	HV580 76 70-01 Available to backorder	Decal	£3.62 £3.02
28	HV530 01 64-32 Available to backorder	Screw	£2.06 £1.72
29	HV576 65 78-01 In stock	Spring	£7.66 £6.38
30	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
31	HV580 67 85-01 Available to backorder	Baffle	£5.82 £4.85
32	HV530 05 87-86 Available to backorder	Assembly	£5.08 £4.23
35	HV530 01 64-16 Available to backorder	Spring	£3.62 £3.02
36	HV579 06 15-01 Available to backorder	Chassis	£113.72 £94.77
37	HV530 07 18-93 Available to backorder	Kit	£11.64 £9.70
39	HV530 01 61-33 Available to backorder	Bolt	£5.82 £4.85
40	HV530 05 79-10 Available to backorder	Plate Bar Mounting	£9.72 £8.10
42	HV530 01 59-17 In stock	Nut	£2.88 £2.40
43	HV545 01 22-01 Available to backorder	Clutch Cover Assy	£42.36 £35.30
44	HV530 01 58-26 In stock	Pen	£1.76 £1.47
45	HV530 03 85-93 In stock	Retainer	£2.34 £1.95
46	HV530 06 96-11 Available to backorder	Retainer	£7.12 £5.93
47	HV530 01 64-39 Available to backorder	Screw	£1.39 £1.16
48	HV530 01 43-81 In stock	Felling Dog	£13.42 £11.18
50	HV577 61 43-26 Available to backorder	Bar	£31.48 £26.23
53	HV530 05 94-80 Available to backorder	Spring	£5.56 £4.63
55	HV530 05 94-79 Available to backorder	Spring	£4.54 £3.78
56	HV530 05 78-78 Available to backorder	Handle	£40.68 £33.90
58	HV530 07 19-45 Available to backorder	Kit	£4.92 £4.10
59	HV530 05 79-24 Available to backorder	Assembly	£5.08 £4.23
60	HV530 07 18-91 Available to backorder	Kit	£32.88 £27.40
62	HV581 07 14-01 Available to backorder	Oil Pump Assy	£33.56 £27.97
63	HV530 03 78-20 Available to backorder	Worm Gear	£7.66 £6.38
