McCulloch CS350 - 2011-07 - Chain Brake & Clutch Cover Parts Diagram

Description

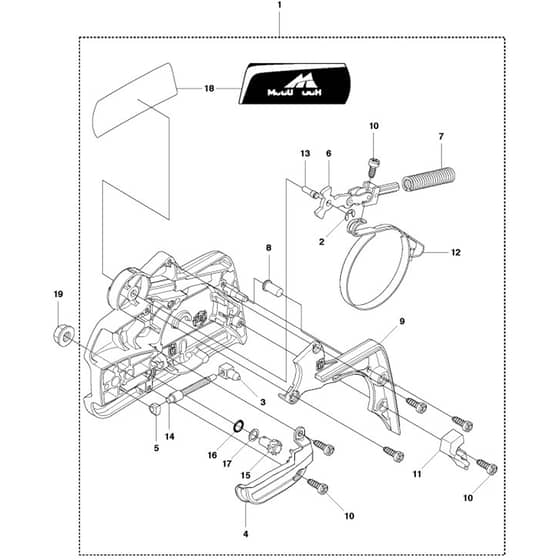

McCulloch CS350 - 2011-07 - Chain Brake & Clutch Cover Parts Diagram

	Part No.	Details
1	HV501 38 82-07 Available to backorder	Clutch Cover Assy	£109.44 £91.20
2	HV735 31 08-20 Available to backorder	E-Clip (1)	£0.78 £0.65
3	HV537 28 66-01 Available to backorder	Pawl (1)	£6.40 £5.33
4	HV540 06 33-01 Available to backorder	Chain Guide (1)	£5.51 £4.59
5	HV537 01 74-01 Available to backorder	Bearing Sleeve (1)	£5.75 £4.79
6	HV503 89 08-02 Available to backorder	Knee Joint Assy (1)	£27.20 £22.67
7	HV505 89 26-01 Available to backorder	Brake Spring (1)	£5.02 £4.18
8	HV503 85 52-01 Available to backorder	Guide Bushing (1)	£5.75 £4.79
9	HV544 24 85-01 Available to backorder	Cover Lid (1)	£8.34 £6.95
10	HV503 21 70-10 Available to backorder	Screw ccrpant (1)	£1.61 £1.34
11	HV544 25 31-01 Available to backorder	Wear Protection (1)	£6.14 £5.12
12	HV544 30 60-03 In stock	Brake Band Assy (1)	£11.24 £9.37
13	HV503 89 29-01 Available to backorder	Pin (1)	£1.46 £1.22
14	HV537 39 70-01 Available to backorder	Worm Screw (1)	£12.66 £10.55
15	HV537 07 94-02 Available to backorder	Worm Wheel (1)	£12.84 £10.70
16	HV740 48 07-02 Available to backorder	O-Ring (1)	£3.82 £3.18
17	HV503 23 00-63 Available to backorder	Washer (1)	£2.30 £1.92
