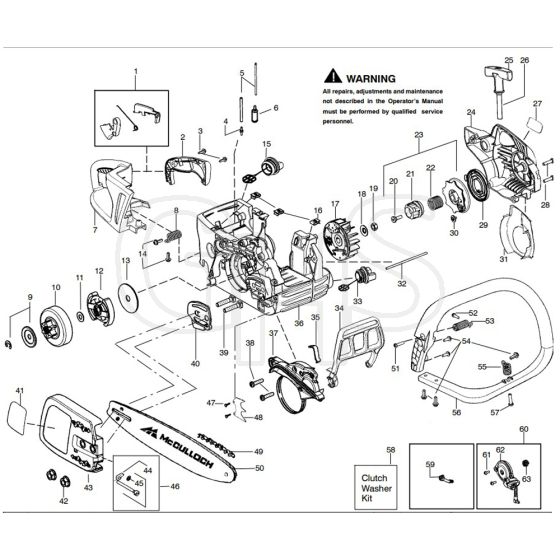

McCulloch CS330 - 2012-09 - Chassis & Enclosures Parts Diagram

Name: McCulloch CS330 - 2012-09 - Chassis & Enclosures Parts Diagram
SKU: cs330_2012_09_chassis_enclosures-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CS330 - 2012-09 - Chassis & Enclosures Parts Diagram

Description

McCulloch CS330 - 2012-09 - Chassis & Enclosures Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV580 86 42-01	Trigger	Out of stock	£8.77 £7.31
2	HV545 01 19-12	Cover	Out of stock	£11.36 £9.47
3	HV530 01 64-33	Screw	Out of stock	£1.67 £1.39
4	HV530 02 38-77	Nipple	Out of stock	£6.85 £5.71
5	HV580 72 71-01	Fuel Hose	Out of stock	£17.72 £14.77
6	HV530 09 56-46	Filter	In stock	£6.94 £5.78
7	HV545 01 21-12	Rear Handle	Out of stock	£31.00 £25.83
8	HV530 05 94-75	Spring	Out of stock	£4.64 £3.87
10	HV530 05 79-05	Clutch Drum	Out of stock	£36.97 £30.81
12	HV530 05 79-07	Clutch Assy	Out of stock	£52.55 £43.79
13	HV530 01 64-19	Washer	Out of stock	£8.09 £6.74
14	HV530 01 59-06	Screw	Out of stock	£1.74 £1.45
15	HV580 94 09-01	Assembly	In stock	£9.05 £7.54
16	HV530 01 59-22	Nut	Out of stock	£1.74 £1.45
17	HV545 01 63-08	Flywheel Assy	Out of stock	£61.68 £51.40
18	HV530 01 51-27	Washer	Out of stock	£2.75 £2.29
19	HV530 01 61-34	Nut	Out of stock	£2.36 £1.97
20	HV530 02 11-79	Screw	Out of stock	£2.23 £1.86
21	HV530 05 96-77	Sleeve	Out of stock	£7.44 £6.20
22	HV530 02 11-80	Spring	In stock	£4.88 £4.07
23	HV530 07 19-66	Starter Pulley Incl 20+ 21+ 22+ 30	Out of stock	£14.60 £12.17
24	HV545 04 59-01	Hsg Fan Euro Black	Out of stock	£27.97 £23.31
25	HV580 83 52-01	Starter Handle	Out of stock	£5.65 £4.71
26	HV530 06 92-32	Starter Rope	Out of stock	£4.20 £3.50
27	HV580 76 70-01	Decal	Out of stock	£3.43 £2.86
28	HV530 01 64-32	Screw	Out of stock	£1.84 £1.53
29	HV576 65 78-01	Spring	Out of stock	£7.55 £6.29
30	HV530 01 60-80	Screw	Out of stock	£1.51 £1.26
31	HV580 67 85-01	Baffle	Out of stock	£5.65 £4.71
32	HV530 05 87-86	Assembly	Out of stock	£4.88 £4.07
33	HV530 05 72-36	Tank	Out of stock	£9.34 £7.78
35	HV530 01 64-16	Spring	Out of stock	£3.52 £2.93
36	HV579 06 15-01	Chassis Incl 4+ 5+ 8+ 14+ 15+ 16+ 32+ 33+ 35+ 39+ 55	Out of stock	£108.60 £90.50
37	HV530 07 18-93	Kit	In stock	£9.72 £8.10
39	HV530 01 61-33	Bolt	Out of stock	£5.60 £4.67
40	HV530 05 79-10	Plate Bar Mounting	Out of stock	£9.34 £7.78
42	HV530 01 59-17	Nut	Out of stock	£2.35 £1.96
43	HV545 01 22-01	Clutch Cover Assy Incl 46	Out of stock	£40.68 £33.90
44	HV530 01 58-26	Pen	In stock	£1.75 £1.46
45	HV530 03 85-93	Retainer	In stock	£1.94 £1.62
46	HV530 06 96-11	Retainer Incl 44+ 45	Out of stock	£5.93 £4.94
47	HV530 01 64-39	Screw	Out of stock	£1.39 £1.16
48	HV530 01 43-81	Felling Dog Incl 47	In stock	£11.34 £9.45
49	HV577 61 51-05	Saw Chain	Out of stock	£28.34 £23.62
50	HV577 61 43-26	Bar	Out of stock	£31.48 £26.23
53	HV530 05 94-80	Spring	Out of stock	£5.39 £4.49
55	HV530 05 94-79	Spring	Out of stock	£4.39 £3.66
56	HV530 05 78-78	Handle	Out of stock	£39.47 £32.89
58	HV530 07 19-45	Kit Incl 9+ 11	Out of stock	£4.72 £3.93
59	HV530 05 79-24	Assembly	Out of stock	£4.91 £4.09
60	HV530 07 18-91	Kit Incl 61+ 62+ 63	In stock	Was £33.19 £27.66 Special Price £17.99 £14.99
62	HV581 07 14-01	Oil Pump Assy	Out of stock	£32.23 £26.86
63	HV530 03 78-20	Worm Gear	Out of stock	£7.55 £6.29
