John Deere Z425 - PC9594 - Mower Drive - ST516551

Name: John Deere Z425 - PC9594 - Mower Drive - ST516551
SKU: Z425_PC9594_ST516551-group
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere Z425 - PC9594 - Mower Drive - ST516551

Description

John Deere Z425

PC Number - PC9594

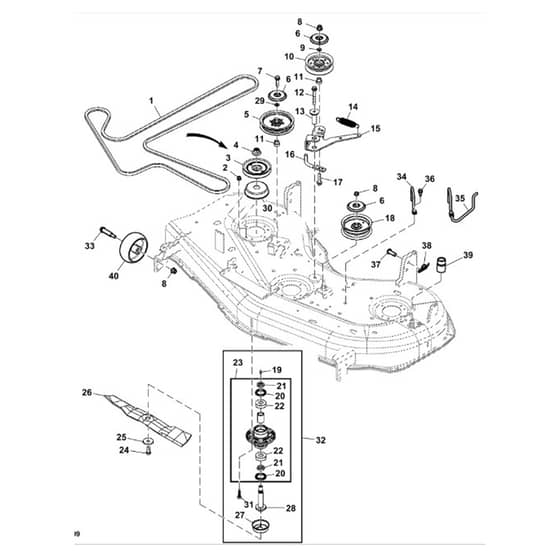

Mower Drive Belt, Sheaves, Spindles And Blades, 48C - ST516551

Be the first to review this product

0 product questions

	Part No.	Details
1	JDM158131 Available to backorder	Mower Deck Drive V-Belt Effective Length 3867.6 mm 152.3 inch	£158.27 £131.89
1	JDM158130 Available to backorder	V-Belt Effective Length 3809.6 mm 149.98 inch	£171.35 £142.79
2	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
3	JDM163464 Available to backorder	Offset Drive Pulley	£76.69 £63.91
4	JDM153583 Available to backorder	Hexagonal Flange Nut M16	£6.92 £5.77
5	JDAM143737 Available to backorder	Mower Deck Drive Idler Pulley	£63.56 £52.97
6	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
7	JD19M7804 Available to backorder	19M7804 Hexagonal Head Flange Bolt M10 x 40	£3.66 £3.05
8	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
9	JD24H1682 Available to backorder	24H1682 Round Hole Washer	£1.16 £0.97
10	JDAM128118 Available to backorder	Mower Deck Drive Idler	£43.74 £36.45
11	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
12	JD19M9128 Available to backorder	19M9128 Hexagonal Head Flanged Screw M10 x 75	£5.08 £4.23
13	JDM126752 Available to backorder	Cylindrical Flanged Alloy Bushing	£18.96 £15.80
14	JDM156827 Available to backorder	Extension Spring	£15.31 £12.76
17	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
18	JDAM135526 Available to backorder	Mower Deck Drive Sheave Assembly	£78.86 £65.72
19	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
19	JDJD7803 Available to backorder	Lubrication Fitting	£1.19 £0.99
20	JDET15755 In stock	Internal Oil Seal	£9.60 £8.00
21	JDM110008 Available to backorder	One End Expanded Inner Diameter Bushing	£6.76 £5.63
22	JDM110024 Available to backorder	Single Row Cylindrical Ball Bearing	£19.46 £16.22
24	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.69 £2.24
25	JDM147138 In stock	Concave Washer	£16.66 £13.88
26	JDUC22009 In stock	Mower Blade 48 Inch	£32.88 £27.40
27	JDM157142 Available to backorder	Lower Cutting Unit Deflector	£10.46 £8.72
28	JDAM148011 Available to backorder	Spindle Kit with Grease Zerk	£38.28 £31.90
29	JD24M7028 Available to backorder	24M7028 Round Hole Washer	£0.73 £0.61
30	JDM157664 Available to backorder	Upper Deflector	£18.37 £15.31
31	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
32	JDAM144377 In stock	Spindle	£152.92 £127.43
33	JDGX21012 In stock	Hexagonal Flanged Head Self-Locking Screw M10 x 70	£6.14 £5.12
36	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.70 £1.42
37	JD45M7084 Available to backorder	45M7084 Pin Fastener	£7.97 £6.64
38	JDM154221 Available to backorder	Cotter Pin	£1.56 £1.30
39	JDGX22425 Available to backorder	Deck Wash Port Quick Coupler	£9.83 £8.19
40	JDGX10168 In stock	Gauge Wheel	£19.34 £16.12
