John Deere Z425 - PC9594 - Mower Deck - ST1005258

Name: John Deere Z425 - PC9594 - Mower Deck - ST1005258
SKU: Z425_PC9594_ST1005258-group
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

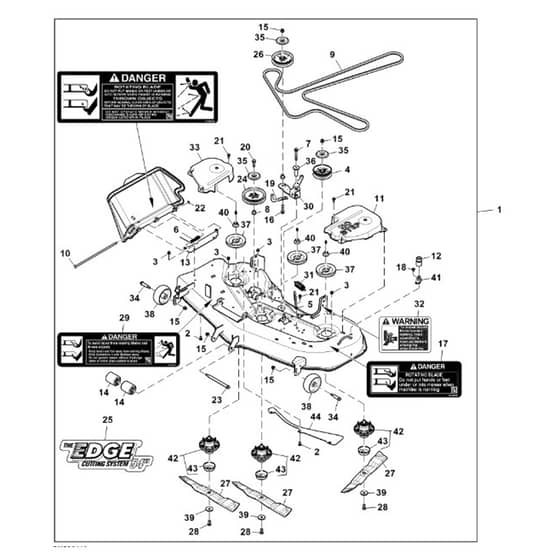

John Deere Z425 - PC9594 - Mower Deck - ST1005258

Description

John Deere Z425

PC Number - PC9594

Mower Deck, Attachment, 54C - ST1005258

Be the first to review this product

0 product questions

	Part No.	Details
2	JD03M7184 Available to backorder	03M7184 Round Head Square Neck Bolt M8 x 20	£1.14 £0.95
3	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
4	JDAM128118 Available to backorder	Mower Deck Drive Idler	£43.74 £36.45
6	JDUC18422 Available to backorder	Torsion Spring	£5.92 £4.93
7	JD19M9128 Available to backorder	19M9128 Hexagonal Head Flanged Screw M10 x 75	£5.08 £4.23
8	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
9	JDM158131 Available to backorder	Mower Deck Drive V-Belt Effective Length 3867.6 mm 152.3 inch	£158.27 £131.89
10	JDM136849 Available to backorder	Groove Pin Fastener	£39.35 £32.79
11	JDM158493 Available to backorder	Belt Shield Left Side	£47.93 £39.94
12	JDGX22425 Available to backorder	Deck Wash Port Quick Coupler	£9.83 £8.19
13	JDM159491 Available to backorder	Discharge Chute Hinge	£16.25 £13.54
14	JDM113955 In stock	Smooth Black Deck Wheel	£14.80 £12.33
15	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
16	JD19M7806 Available to backorder	19M7806 Hexagonal Head Flanged Screw M10 x 50	£4.96 £4.13
18	JDAM146246 Available to backorder	Screw with Washer M6 x 11.25	£1.48 £1.23
20	JD19M7804 Available to backorder	19M7804 Hexagonal Head Flange Bolt M10 x 40	£3.66 £3.05
21	JDM159825 Available to backorder	Hexagonal Flanged Head Self-Tapping Screw M8 x 23.5	£1.70 £1.42
22	JDH141123 Available to backorder	Push Nut 10 mm 0.394"	£1.85 £1.54
23	JDM158262 Available to backorder	Hexagonal Head Flanged Screw M10 x 192	£15.73 £13.11
24	JDAM143737 Available to backorder	Mower Deck Drive Idler Pulley	£63.56 £52.97
26	JDAM135526 Available to backorder	Mower Deck Drive Sheave Assembly	£78.86 £65.72
27	JDUC22010 In stock	Mower Blade 54 inch	£47.02 £39.18
28	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.69 £2.24
29	JDM139128 Available to backorder	Safety Sign English	£9.72 £8.10
31	JDM156827 Available to backorder	Extension Spring	£15.31 £12.76
33	JDM158492 Available to backorder	Belt Shield Right Side	£51.00 £42.50
34	JDGX21012 In stock	Hexagonal Flanged Head Self-Locking Screw M10 x 70	£6.14 £5.12
35	JDM165519 Available to backorder	Idler Shield	£4.80 £4.00
36	JDM126752 Available to backorder	Cylindrical Flanged Alloy Bushing	£18.96 £15.80
37	JDM163464 Available to backorder	Offset Drive Pulley	£76.69 £63.91
38	JDGX10168 In stock	Gauge Wheel	£19.34 £16.12
39	JDM147138 In stock	Concave Washer	£16.66 £13.88
40	JDM153583 Available to backorder	Hexagonal Flange Nut M16	£6.92 £5.77
41	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
42	JDAM144377 In stock	Spindle	£152.92 £127.43
43	JDM157142 Available to backorder	Lower Cutting Unit Deflector	£10.46 £8.72
