Husqvarna Tc242T - Chassis & Frame

Name: Husqvarna Tc242T - Chassis & Frame
SKU: tc242t_chassis_frame-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Tc242T

Model Year -

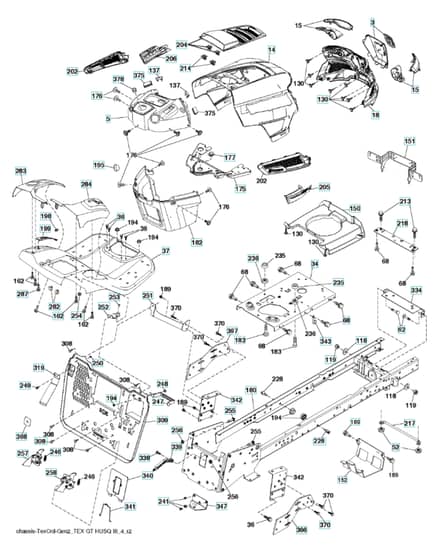

Chassis & Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
37	HV532 44 14-19 Available to backorder	Fender	£266.04 £221.70
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
150	HV532 43 97-74 Available to backorder	Air Duct	£58.86 £49.05
151	HV532 43 66-70 Available to backorder	Bracket	£70.52 £58.77
152	HV532 19 95-35 Available to backorder	Shield	£48.52 £40.43
175	HV590 60 77-02 Available to backorder	Cross Member	£66.64 £55.53
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushing	£10.78 £8.98
182	HV586 73 86-02 Available to backorder	Dash	£119.68 £99.73
205	HV532 43 97-30 Available to backorder	Skirtrh	£27.18 £22.65
206	HV532 43 97-29 Available to backorder	Skirtlh	£33.00 £27.50
214	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
246	HV591 44 90-01 Available to backorder	Spring	£1.16 £0.97
247	HV582 55 26-02 Available to backorder	Strap	£16.18 £13.48
249	HV586 93 60-01 Available to backorder	Screw	£1.42 £1.18
251	HV589 31 89-04 Available to backorder	Bracket	£22.64 £18.87
252	HV581 99 22-04 Available to backorder	Bracket	£9.72 £8.10
257	HV589 74 66-02 Available to backorder	Latch Assy	£32.36 £26.97
258	HV589 74 67-02 Available to backorder	Latch Assy	£32.36 £26.97
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
283	HV532 44 72-12 Available to backorder	Console	£73.12 £60.93
308	HV532 17 18-77 Available to backorder	Bolt	£5.04 £4.20
309	HV582 55 25-02 Available to backorder	Backplate	£191.04 £159.20
319	HV581 31 39-07 Available to backorder	Lever	£11.64 £9.70
340	HV582 55 27-02 Available to backorder	Door	£42.04 £35.03
341	HV582 06 08-01 Available to backorder	Latch	£7.76 £6.47
342	HV582 82 68-02 Available to backorder	Bracket	£42.68 £35.57
368	HV581 42 48-01 Available to backorder	Shroud	£5.18 £4.32
370	HV817 12 06-16 Available to backorder	Screw	£5.32 £4.43
375	HV586 90 82-01 Available to backorder	Bumper	£5.96 £4.97
378	HV590 84 98-01 Available to backorder	Bushing	£6.08 £5.07
