Husqvarna R 214C - 970519401 - Mower Lift / Deck Lift

Name: Husqvarna R 214C - 970519401 - Mower Lift / Deck Lift
SKU: R_214C_970519401_TU_964388_HighResPng-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 214C - 970519401 - Mower Lift / Deck Lift

Description

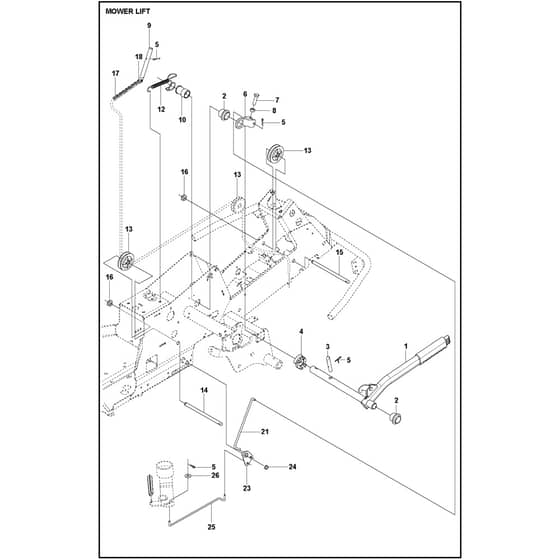

Husqvarna R 214C - 970519401 - Mower Lift / Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV590 88 06-01 Available to backorder	Lifting Lever Assy	£69.11 £57.59
2	HV588 92 69-01 Available to backorder	Bearing	£7.12 £5.93
3	HV525 40 66-01 Available to backorder	Pen	£11.35 £9.46
4	HV588 92 71-01 Available to backorder	Anvil	£5.68 £4.73
5	HV721 61 83-01 Available to backorder	Split Pin	£0.77 £0.64
6	HV588 92 70-01 Available to backorder	Lifting Arm	£11.00 £9.17
7	HV725 24 97-51 Available to backorder	Screw	£7.12 £5.93
8	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.04 £2.53
9	HV588 92 74-01 Available to backorder	Rod	£14.22 £11.85
10	HV588 92 73-01 Available to backorder	Anvil	£10.36 £8.63
12	HV588 92 75-01 Available to backorder	Spring	£11.64 £9.70
13	HV506 90 56-01 Available to backorder	Offset Pulley	£23.76 £19.80
14	HV582 87 19-01 Available to backorder	Shaft	£20.06 £16.72
15	HV582 87 19-02 Available to backorder	Shaft	£19.90 £16.58
16	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
17	HV506 55 46-09 Available to backorder	Chain	£53.98 £44.98
18	HV506 55 47-01 In stock	Linkage	£4.92 £4.10
21	HV544 45 69-01 Available to backorder	Connection Rod	£7.68 £6.40
23	HV544 37 86-01 Available to backorder	Link	£10.08 £8.40
24	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
25	HV544 44 88-01 Available to backorder	Connection Rod	£9.72 £8.10
26	HV734 11 64-41 In stock	Washer	£3.28 £2.73
