Husqvarna K 7000 - 970744501 - Belt Guard And Pulley

Name: Husqvarna K 7000 - 970744501 - Belt Guard And Pulley
SKU: K_7000_970744501_TG_067806_Original_20file-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K 7000 - 970744501 - Belt Guard And Pulley

Description

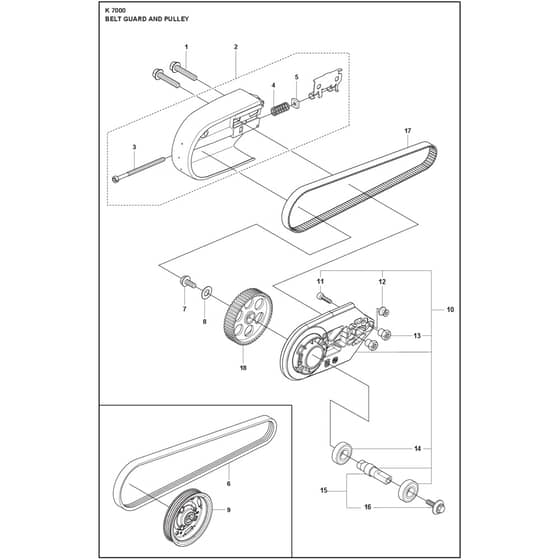

Husqvarna K 7000 - 970744501 - Belt Guard And Pulley - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV506 28 44-01 Available to backorder	Screw Ehhfm	£6.41 £5.34
2	HV506 39 36-04 Available to backorder	Belt Guard (Befor S.N 240718163)	£38.39 £31.99
3	HV503 20 72-05 Available to backorder	Screw Citxscm	£5.98 £4.98
4	HV506 26 68-01 Available to backorder	Compression Spring	£4.92 £4.10
5	HV506 40 93-01 Available to backorder	Nut	£2.78 £2.32
6	HV544 97 63-06 Available to backorder	Drive Belt (Befor S.N 240718163)	£26.72 £22.27
7	HV503 20 00-45 Available to backorder	Screw Ehhfm	£4.02 £3.35
8	HV503 23 01-16 Available to backorder	Washer	£1.34 £1.12
9	HV584 43 94-01 Available to backorder	Pulley (Befor S.N 240718163)	£41.26 £34.38
10	HV589 39 03-03 Available to backorder	Bearing Housing	£125.28 £104.40
11	HV505 57 41-16 Available to backorder	Screw Itxscm	£2.00 £1.67
13	HV584 78 81-01 Available to backorder	Nut	£1.84 £1.53
14	HV583 95 33-01 Available to backorder	Ball Bearing	£15.96 £13.30
15	HV588 13 84-01 Available to backorder	Shaft	£24.24 £20.20
16	HV590 50 38-01 In stock	Screw	£13.87 £11.56
17	HV546 12 69-01 Available to backorder	Drive Belt (From S.N 240718163)	£30.62 £25.52
18	HV546 05 36-01 Available to backorder	Pulley (From S.N 240718163)	£221.93 £184.94
