Husqvarna COMBI 112 RIDER COLLECTION - 44"/112cm Cutting Deck 4

Description

Husqvarna COMBI 112 RIDER COLLECTION

Model Year -

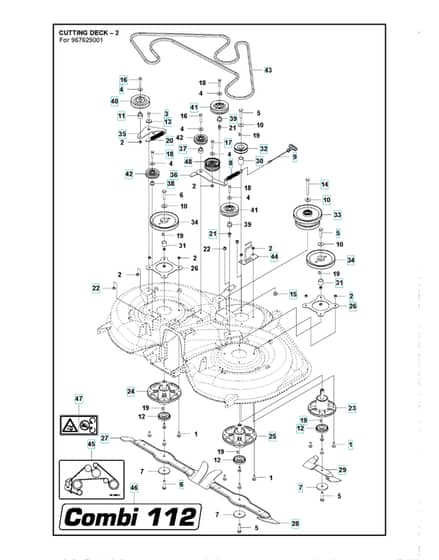

44"/112cm Cutting Deck 4 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
2	HV732 21 18-01 In stock	Lock Nut	£2.40 £2.00
3	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
4	HV734 11 64-41 In stock	Washer	£3.28 £2.73
5	HV588 79 32-01 Available to backorder	Screw	£7.76 £6.47
6	HV544 11 41-01 In stock	Screw Ehhm	£1.82 £1.52
7	HV588 14 56-01 Available to backorder	Plate	£8.40 £7.00
8	HV504 62 24-01 Available to backorder	Spring	£11.98 £9.98
9	HV504 62 21-03 Available to backorder	Handle Assy	£17.46 £14.55
10	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
11	HV535 48 48-01 Available to backorder	Bushing	£34.28 £28.57
12	HV535 50 42-02 In stock	Adapter	£23.28 £19.40
14	HV725 25 09-71 Available to backorder	Screw Ehhm	£9.06 £7.55
15	HV576 64 57-05 Available to backorder	Nut Flange	£4.40 £3.67
18	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.18 £5.15
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.42 £3.68
20	HV506 53 31-01 In stock	Spring	£12.04 £10.03
21	HV506 91 62-01 Available to backorder	Nut	£6.08 £5.07
23	HV582 13 83-01 Available to backorder	Blade Housing Assy	£111.16 £92.63
24	HV582 02 00-01 Available to backorder	Blade Housing Assy	£135.26 £112.72
25	HV582 02 00-02 Available to backorder	Blade Housing Assy	£111.16 £92.63
26	HV589 35 46-01 Available to backorder	Washer	£16.18 £13.48
27	HV597 71 47-10 In stock	Blade	£54.96 £45.80
28	HV597 71 47-20 In stock	Blade	£54.77 £45.64
29	HV588 82 44-10 In stock	Blade	£27.10 £22.58
30	HV588 81 87-02 Available to backorder	Spacing Sleeve	£23.94 £19.95
31	HV588 81 87-01 Available to backorder	Spacing Sleeve	£16.82 £14.02
32	HV588 81 88-01 Available to backorder	Pulley	£28.80 £24.00
33	HV582 00 96-01 Available to backorder	Pulley Assy	£96.44 £80.37
34	HV588 81 92-01 Available to backorder	Pulley Assy	£52.54 £43.78
35	HV588 81 97-01 Available to backorder	Belt Tensioner	£17.46 £14.55
36	HV588 81 98-01 Available to backorder	Belt Tensioner	£16.82 £14.02
37	HV588 82 00-01 Available to backorder	Hub	£35.58 £29.65
38	HV588 82 01-01 Available to backorder	Bushing	£18.12 £15.10
39	HV588 82 02-01 Available to backorder	Bushing	£23.94 £19.95
40	HV506 97 48-01 Available to backorder	Pulley	£56.83 £47.36
41	HV590 17 23-01 In stock	Pulley	£26.33 £21.94
43	HV589 97 42-01 Available to backorder	Belt	£98.88 £82.40
44	HV582 64 59-01 Available to backorder	Belt Guide	£13.58 £11.32
45	HV589 68 62-01 Available to backorder	Decal	£4.78 £3.98
46	HV544 23 81-15 Available to backorder	Label	£4.40 £3.67
47	HV574 51 00-01 Available to backorder	Decal	£3.12 £2.60
48	HV539 91 90-78 In stock	Pulley	£38.09 £31.74
