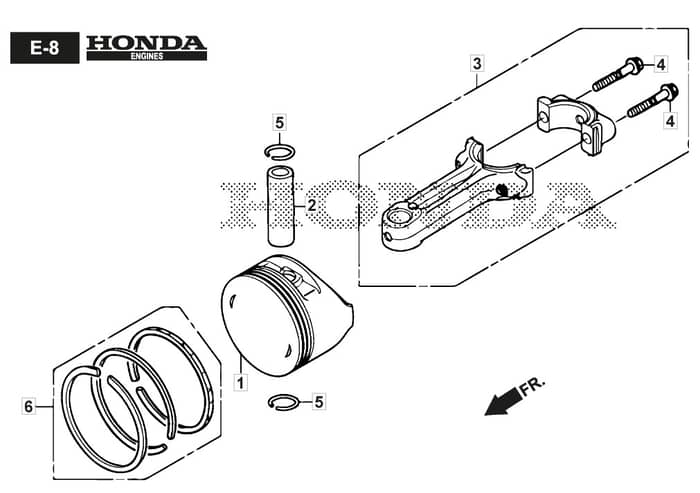

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Piston Diagram

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Piston Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Piston Diagram

Description

Mountfield HP425 Parts Diagram

Product Name - HP425

Model Year - 2019-2021

Model Type - CP1 434 Q

Art.N - 2L0431038/M19

Engine Model - Honda GCV145 OHV Autochoke

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP13101-Z9P-000 Available to backorder	Piston		£40.32 £33.60
	2		HP13111-ZE0-000 Available to backorder	Pin. Piston		£10.48 £8.73
	3		HP13200-Z9L-000 Available to backorder	Rod Assy. Connecting		£50.08 £41.73
	4		HP90001-Z1L-000 Available to backorder	Bolt. Connecting Rod		£4.08 £3.40
	5		HP90551-ZE0-000 Available to backorder	Clip. Piston Pin. 13mm		£1.81 £1.51
	6		HP13010-Z9P-003 Available to backorder	Ring Set. Piston		£35.16 £29.30

Description

Mountfield HP425 Parts Diagram

Product Name - HP425

Model Year - 2019-2021

Model Type - CP1 434 Q

Art.N - 2L0431038/M19

Engine Model - Honda GCV145 OHV Autochoke
