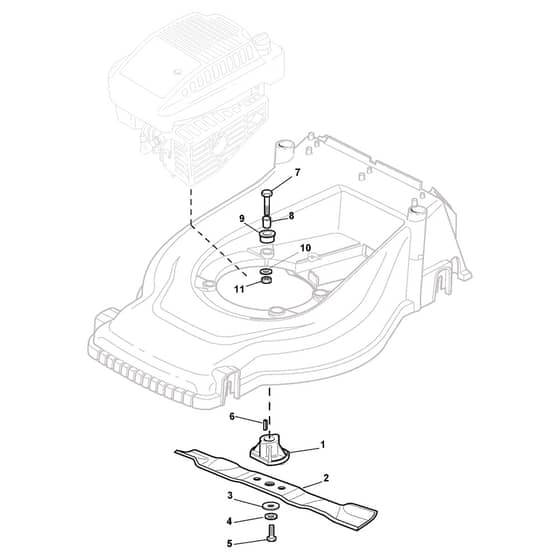

GO/ON 3540 P - 2013 - 297430043/ZE - Castel Garden Rotary Mower Blade Diagram

Name: GO/ON 3540 P - 2013 - 297430043/ZE - Castel Garden Rotary Mower Blade Diagram
SKU: go_on_3540_p_297430043_ze_blade-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GO/ON 3540 P - 2013 - 297430043/ZE - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden GO/ON 3540 P Parts Diagram

Product Name - GO/ON 3540 P

Model Year - 2013

Model Type - EP 434

Art.N - 297430043/ZE

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-9-2008	£8.02 £6.68
2	MO181004341/3 In stock	Mulching Blade	£12.79 £10.66
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO122167842/0 Available to backorder	Spacer	£3.38 £2.82
9	MO122040265/0 Available to backorder	Bushing	£1.40 £1.17
10	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
11	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
