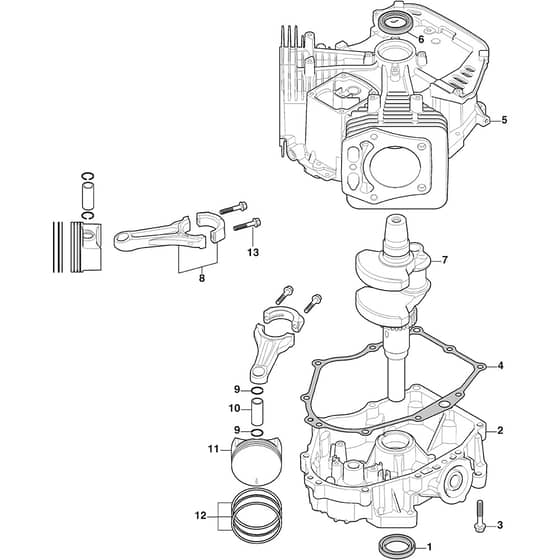

ESTATE 9102 W - 2023 - 2T0985481/ST1 - Stiga Ride On Mower Crankcase Diagram

Description

Stiga ESTATE 9102 W Parts Diagram

Product Name - ESTATE 9102 W

Model Year - 2023

Model Type - TNSE 102 Hydro

Art.N - 2T0985481/ST1

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551602/0 Available to backorder	Oil Seal	£14.08 £11.73
2	MO118551541/0 Available to backorder	Crankcase Cover	£175.97 £146.64
4	MO118551542/0 Available to backorder	Gasket	£20.69 £17.24
5	MO118552565/0 Available to backorder	Cilynder	£546.20 £455.17
6	MO118551418/0 Available to backorder	Oil Seal d.35_D.52_b.7	£11.96 £9.97
7	MO118551555/0 Available to backorder	Crankshaft	£260.44 £217.03
8	MO118551554/1 Available to backorder	Connecting Rod Assy	£45.04 £37.53
9	MO118551600/0 Available to backorder	Oil Seal	£1.69 £1.41
10	MO118551552/0 Available to backorder	Piston Pin	£7.25 £6.04
11	MO118551551/0 Available to backorder	Piston	£42.23 £35.19
12	MO118551553/0 Available to backorder	Piston. Ring Set	£32.24 £26.87
13	MO118552498/0 Available to backorder	Bolt	£2.12 £1.77
