Atco Balmoral 17SE - 001892A Onwards - Rear Roller Assembly

Name: Atco Balmoral 17SE - 001892A Onwards - Rear Roller Assembly
SKU: balmoral_17se_001892a_onwards_rear_roller_assy-group
Price: 1.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Balmoral 17SE - 001892A Onwards - Rear Roller Assembly

Description

Atco Balmoral 17SE

Article number: 001892A Onwards

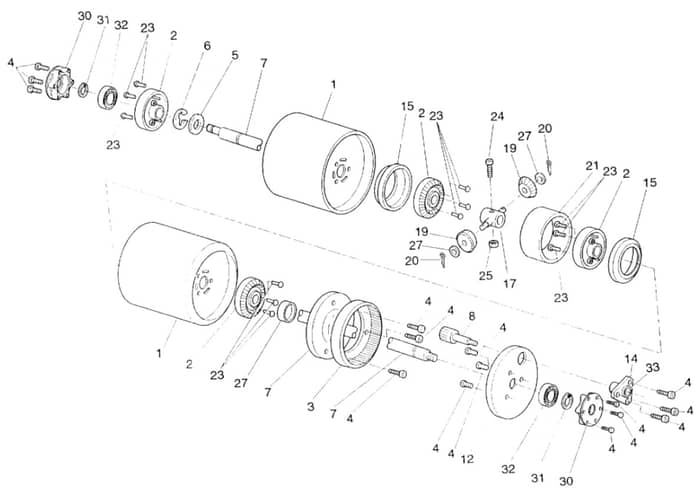

Rear Roller Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ALF016A57546 Out of stock	Roller Rear Half 17	£256.26 £213.55
2	ALF016A57674 In stock	Bush	£14.64 £12.20
3	ALF016A57635 In stock	Ring Gear	£58.20 £48.50
4	ALF016A57756 In stock	Screw M5	£1.56 £1.30
6	ALF016A58577 Out of stock	Washer Distance	£1.99 £1.66
8	ALF016A57698 In stock	Pinion Shaft Assy	£24.36 £20.30
15	ALF016A57823 In stock	Differential End Cover	£8.74 £7.28
19	ALF016A57499 In stock	Differential Pinion Vis	£14.09 £11.74
20	ALF016L13230 Out of stock	Split Pin 3/32" x 5/8"	£2.46 £2.05
21	ALF016A57832 Out of stock	Differential Cover	£30.71 £25.59
23	ALF016A58178 In stock	Rivet	£2.68 £2.23
24	ALF016A58385 Out of stock	Bolt	£2.38 £1.98
25	ALF016L35388 In stock	Nut M6 x 10 Nyloc P Type	£2.68 £2.23
27	ALF016L35411 Out of stock	Washer	£1.42 £1.18
28	ALF016A58235 Out of stock	Spacer	£37.46 £31.22
31	ALF016A58441 In stock	Circlip	£6.00 £5.00
32	ALF016A57838 In stock	Bearing	£22.92 £19.10
33	ALF016A57764 In stock	Bush	£10.08 £8.40
