ZT 7132 T - 2019-2022 - 2F1020861/ST1 - Stiga Zero Turn Mower Deck Belts Blades and Spindles Diagram

Name: ZT 7132 T - 2019-2022 - 2F1020861/ST1 - Stiga Zero Turn Mower Deck Belts Blades and Spindles Diagram
SKU: zt_7132_t_2f1020861_st1_deck_belts_blades_and_spindles-group
Price: 10.56 GBP
Availability: InStock

Part No. zt_7132_t_2f1020861_st1_deck_belts_blades_and_spindles-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ZT 7132 T - 2019-2022 - 2F1020861/ST1 - Stiga Zero Turn Mower Deck Belts Blades and Spindles Diagram

Description

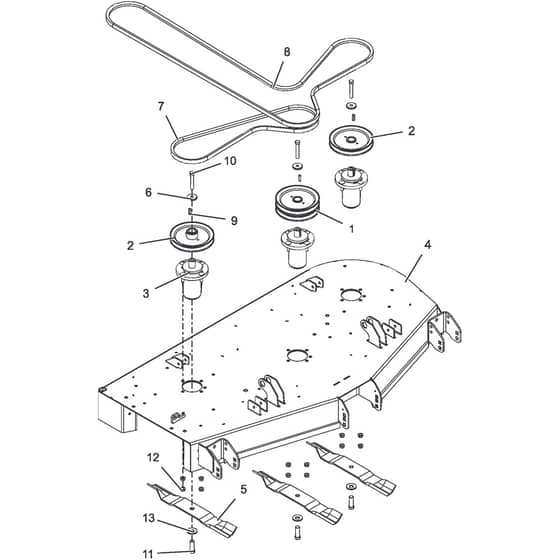

Stiga ZT 7132 T Parts Diagram

Product Name - ZT 7132 T

Model Year - 2019-2022

Model Type - 991313

Art.N - 2F1020861/ST1

Engine Model -

	Part No.	Details
1	MO118830799/0 Available to backorder	Pulley. Double 1.000 Id X 6.750 Od-Black	£140.77 £117.31
2	MO118830800/0 Available to backorder	Pulley. V-1.000 Id X 6.750 Od	£122.29 £101.91
3	MO118830808/0 Available to backorder	Asm. Alum Spindle	£422.32 £351.93
4	MO118830809/0 Available to backorder	Wldmt. 52 Side Disch Deck Ce (Yellow)	£3,055.81 £2,546.51
5	MO1134-9238-01 Available to backorder	Blade. 18" "Kit of 3 blades. printed code ""03253800"""	£127.94 £106.62

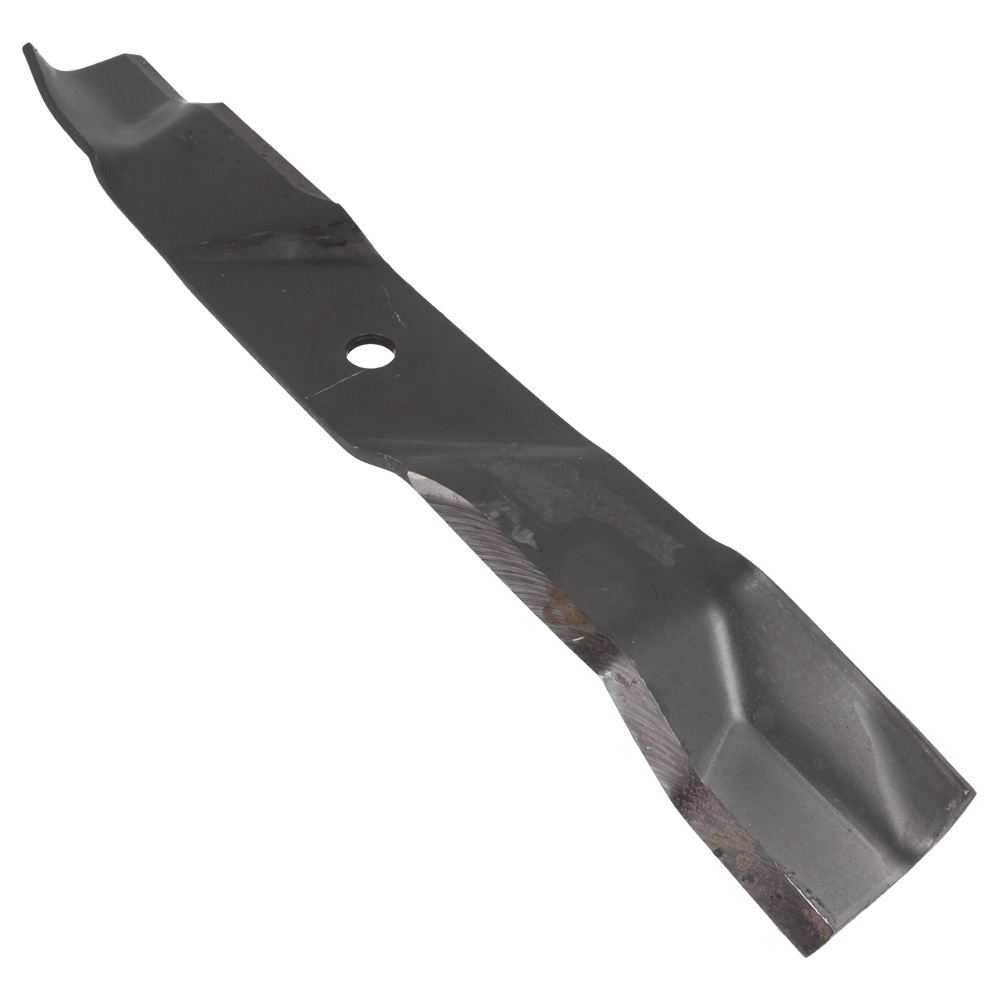

5	MO118830930/0 Available to backorder	Blade. 18" - Mulching "printed code ""04887600"""	£48.98 £40.82

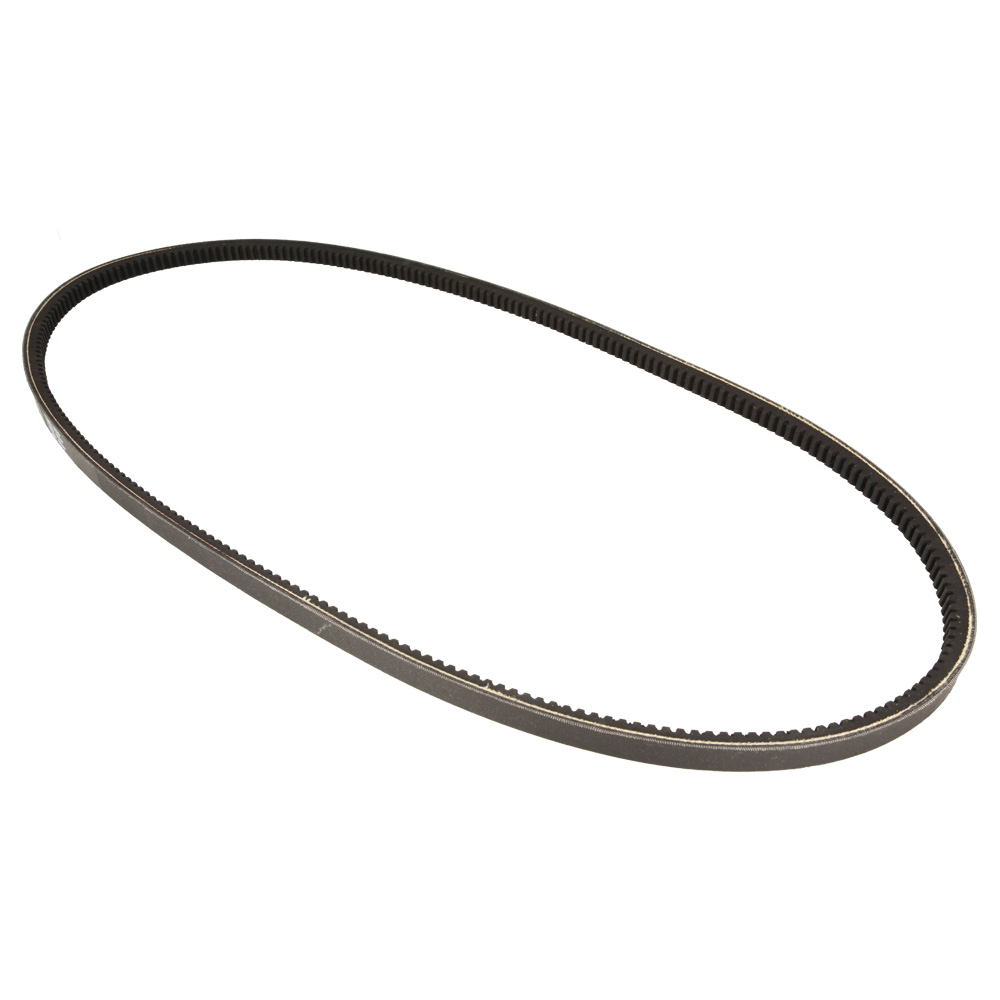

7	MO1134-9236-01 Available to backorder	V-Belt	£61.97 £51.64

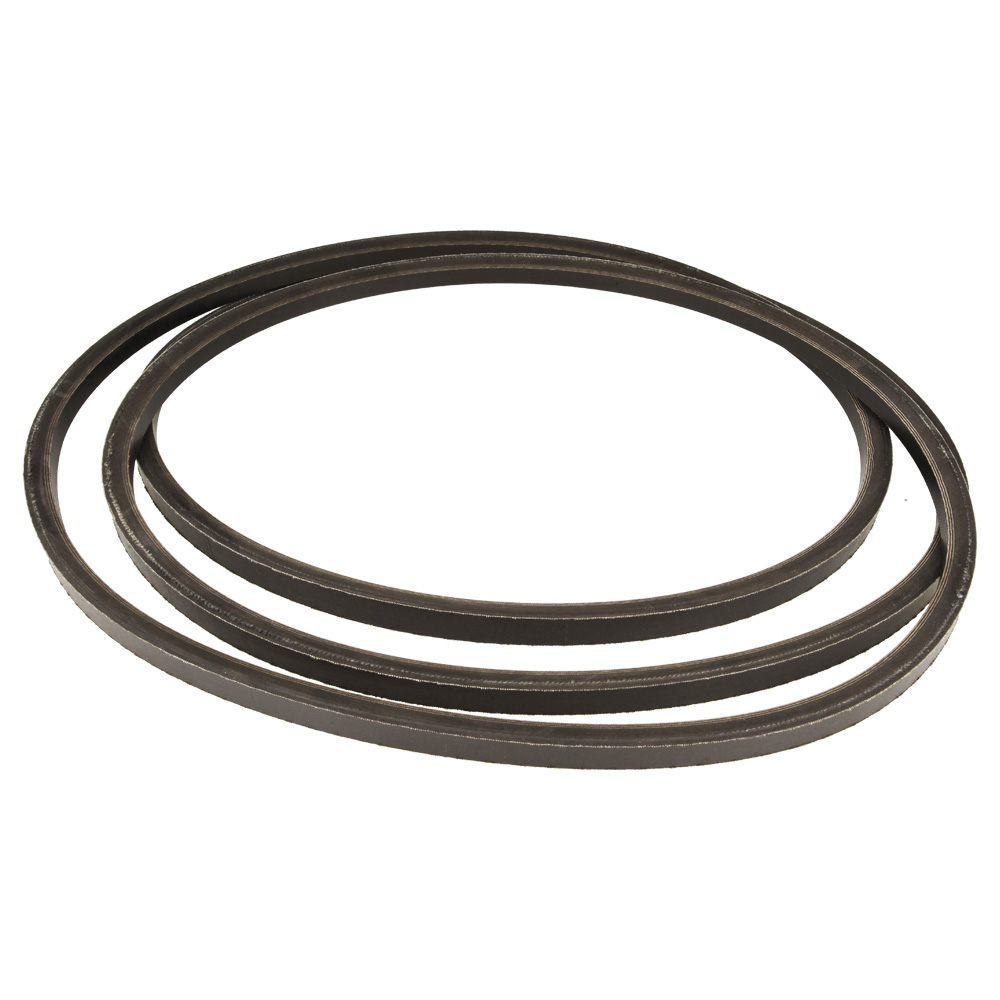

8	MO118830797/0 Available to backorder	V-Belt. Hb Section	£95.20 £79.33
11	MO118830791/0 Available to backorder	Bolt. Hex 0.625-11X1.75 Gr8 Scc	£12.67 £10.56
13	MO118830309/0 Available to backorder	Washer	£13.25 £11.04
