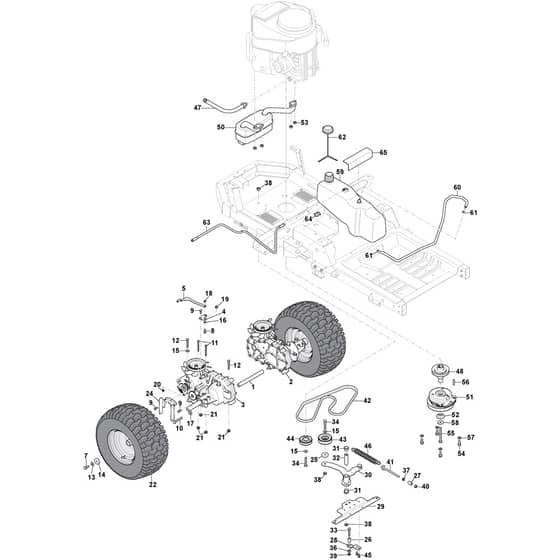

ZT 5132 T - 2017-2022 - 2F1020821/S17 - Stiga Zero Turn Mower Exhaust, Belts, Fuel Tank, Rear Wheels Diagram

Name: ZT 5132 T - 2017-2022 - 2F1020821/S17 - Stiga Zero Turn Mower Exhaust, Belts, Fuel Tank, Rear Wheels Diagram
SKU: zt_5132_t_2f1020821_s17_exhaust_belts_fuel_tank_rear_wheels-grou
Price: 1.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ZT 5132 T - 2017-2022 - 2F1020821/S17 - Stiga Zero Turn Mower Exhaust, Belts, Fuel Tank, Rear Wheels Diagram

Description

Stiga ZT 5132 T Parts Diagram

Product Name - ZT 5132 T

Model Year - 2017-2022

Model Type - 915334

Art.N - 2F1020821/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118830244/0 Available to backorder	Rod. Transaxle Brace (Grey Pearl)	£11.53 £9.61
2	MO118830250/0 Available to backorder	Transmission Unit (Hydrogear Ezt D-Shaft). Left	£994.03 £828.36
3	MO118830251/0 Available to backorder	Transmission Unit (Hydrogear Ezt D-Shaft). Right	£994.03 £828.36
4	MO118830258/0 Available to backorder	Bracket	£8.95 £7.46
5	MO118830260/0 Available to backorder	Bracket Right Side	£2.53 £2.11
5	MO118830261/0 Available to backorder	Bracket Left Side	£2.53 £2.11
7	MO118830549/0 Available to backorder	Screw	£4.66 £3.88
8	MO118830560/0 Available to backorder	Bolt	£2.26 £1.88
9	MO118830565/0 Available to backorder	Screw	£4.39 £3.66
10	MO118830572/0 Available to backorder	Screw	£8.42 £7.02
11	MO118830574/0 Available to backorder	Screw	£3.89 £3.24
12	MO118830580/0 Available to backorder	Screw	£3.79 £3.16
13	MO118830603/0 Available to backorder	Washer	£2.40 £2.00
14	MO118830606/0 Available to backorder	Washer	£6.31 £5.26
15	MO118830611/0 Available to backorder	Washer	£2.26 £1.88
16	MO118830619/0 Available to backorder	Washer	£2.68 £2.23
17	MO118830628/0 Available to backorder	Washer	£6.76 £5.63
18	MO118830635/0 Available to backorder	Nut	£2.26 £1.88
19	MO118830644/0 Available to backorder	Nut	£2.26 £1.88
20	MO118830654/0 Available to backorder	Nut	£4.66 £3.88
21	MO118830679/0 Available to backorder	Nut	£6.76 £5.63
22	MO118830169/0 Available to backorder	Rear Wheel Assy	£309.70 £258.08
24	MO118830290/0 Available to backorder	Guard Right Side	£46.68 £38.90
24	MO118830289/0 Available to backorder	Guard Left Side	£11.69 £9.74
25	MO118830204/0 Available to backorder	Spacer	£6.90 £5.75
26	MO118830072/0 Available to backorder	Rubber Spacer	£7.74 £6.45
27	MO118830082/0 Available to backorder	Spacer	£7.66 £6.38
28	MO118830248/0 Available to backorder	Lever	£6.47 £5.39
29	MO118830270/0 Available to backorder	Lever	£19.55 £16.29
30	MO118830271/0 Available to backorder	Idler Ground Drive	£51.50 £42.92
31	MO118830293/0 Available to backorder	Bush	£24.64 £20.53
32	MO118830303/0 Available to backorder	Bush	£32.38 £26.98
33	MO118830567/0 Available to backorder	Screw	£2.53 £2.11
34	MO118830578/0 Available to backorder	Screw	£2.53 £2.11
36	MO118830645/0 Available to backorder	Nut	£4.66 £3.88
37	MO118830647/0 Available to backorder	Nut	£2.26 £1.88
38	MO118830934/0 Available to backorder	Nut	£1.61 £1.34
39	MO118830161/0 Available to backorder	Nut	£3.71 £3.09
40	MO118830656/0 Available to backorder	Nut	£2.26 £1.88
41	MO118830317/0 Available to backorder	Bolt. Eye	£26.75 £22.29

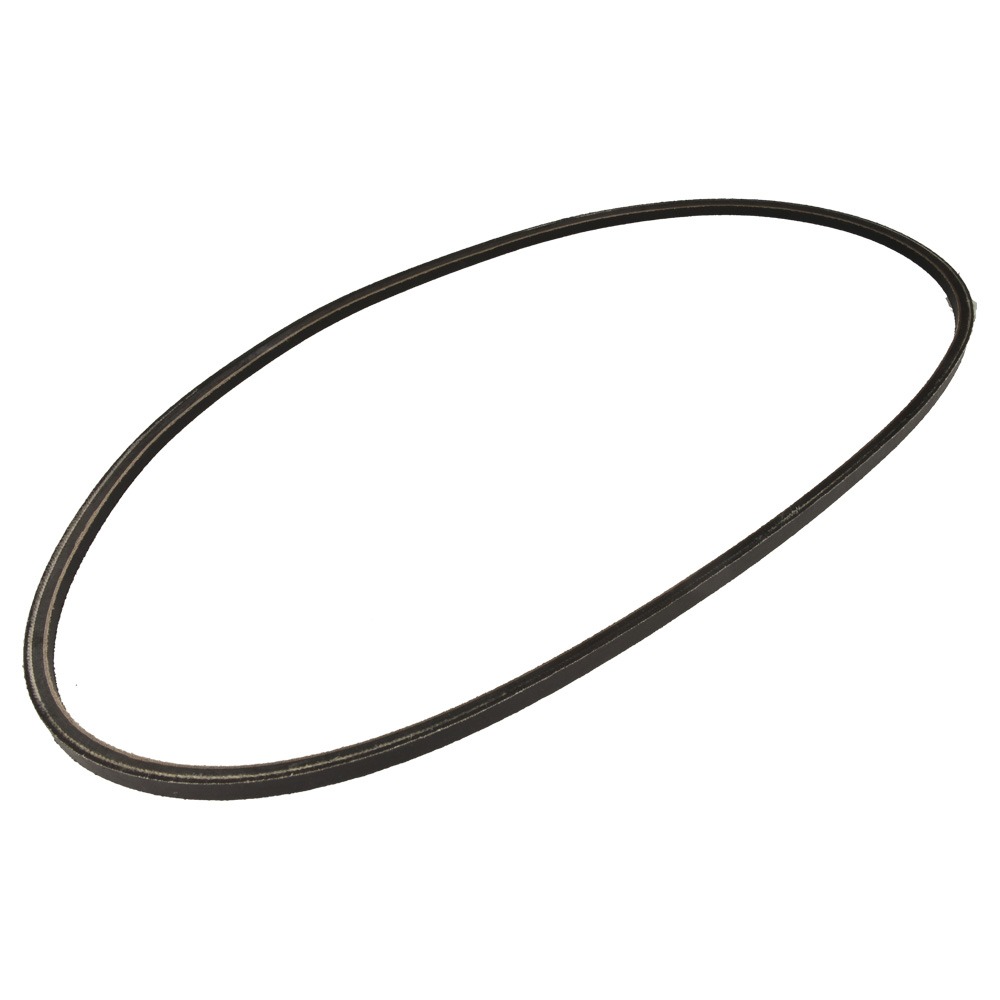

42	MO1134-9213-01 Available to backorder	Drive Belt	£72.72 £60.60

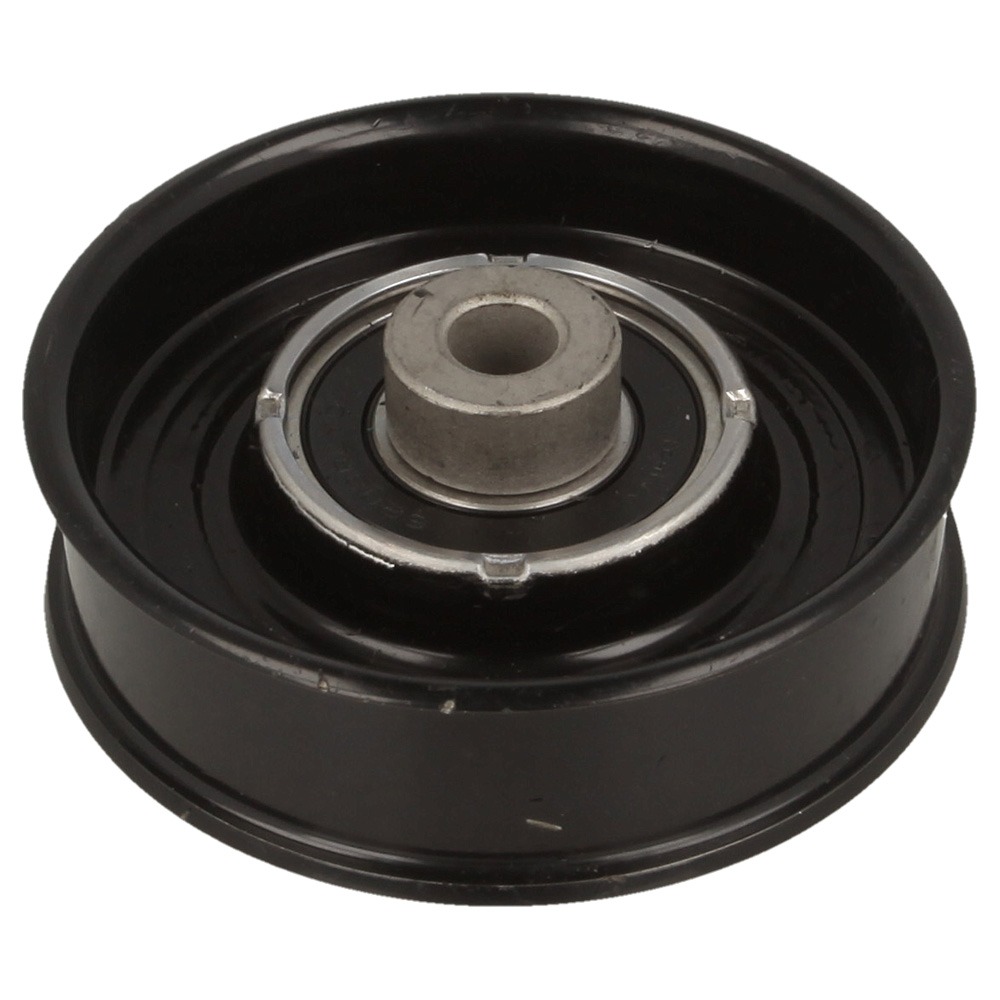

43	MO118830323/0 Available to backorder	Drive Wheel	£40.62 £33.85
44	MO118830325/0 Available to backorder	Drive Wheel	£73.56 £61.30
45	MO118830326/0 Available to backorder	Screw	£4.39 £3.66
46	MO118830341/0 Available to backorder	Spring	£50.68 £42.23
47	MO118830319/0 Available to backorder	Oil Drain Tube	£64.75 £53.96
48	MO118830324/0 Available to backorder	Engine Belt Pulley	£81.66 £68.05
50	MO118830211/0 Available to backorder	Muffler Assy	£225.24 £187.70
51	MO118830213/0 Available to backorder	Magnet Clutch	£900.95 £750.79
52	MO118830299/0 Available to backorder	Bush	£35.20 £29.33
53	MO118830634/0 Available to backorder	Nut	£2.26 £1.88
54	MO118830556/0 Available to backorder	Screw	£2.26 £1.88
55	MO118830306/0 Available to backorder	Bolt	£7.74 £6.45
56	MO118830658/0 Available to backorder	Key	£6.90 £5.75
57	MO118830609/0 Available to backorder	Washer	£6.23 £5.19
58	MO118830308/0 Available to backorder	Washer	£35.20 £29.33
59	MO118830219/0 Available to backorder	Fuel Tank	£401.21 £334.34
60	MO118830541/0 Available to backorder	Fuel Tube	£2.29 £1.91
61	MO118830029/0 Available to backorder	Clamp. Fuel Line	£2.26 £1.88
62	MO118830212/0 Available to backorder	Tank Cap Assy	£64.02 £53.35
63	MO118830276/0 Available to backorder	Fuel Tube	£20.14 £16.78
64	MO118830318/0 Available to backorder	Clip	£5.35 £4.46
65	MO118830268/0 Available to backorder	Grommet	£8.02 £6.68
