Toro Z Master 152cm - 74056TE (418031645 - 418290467) Frame

Part No. z_master_152cm_74056te_4183164541829467_frame-group
Toro Z Master 152cm - 74056TE (418031645 - 418290467) Frame
Toro Z Master 152cm - 74056TE (418031645 - 418290467) Frame

Description

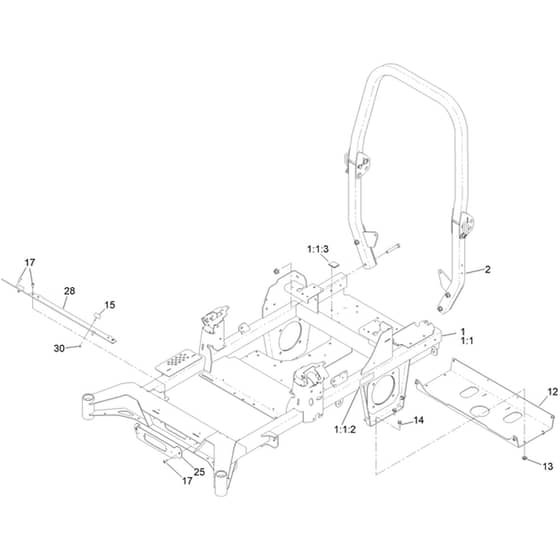

Toro Z Master 152cm - 74056TE (418031645 - 418290467) Frame Parts Diagram

Ref. Img. Part No. Details
  0 Belt Routing Decal
Belt Routing Decal
HA144-2687
Available to backorder
Belt Routing Decal
£2.96 £2.47

  1 Frame Asm-60 [4000 Service]
Frame Asm-60 [4000 Service]
HA147-7833
Available to backorder
Frame Asm-60 [4000 Service]
£2,900.80 £2,417.33

  2 Rollover Protection System (Rops) Assembly
Rollover Protection System (Rops) Assembly
HA139-8063
Available to backorder
Rollover Protection System (Rops) Assembly
£783.12 £652.60

  12 Hydro Plate
Hydro Plate
HA139-6717-01
Available to backorder
Hydro Plate
£256.32 £213.60

  13 Nut-Flange. Ni
Nut-Flange. Ni
HA109-6658
Available to backorder
Nut-Flange. Ni
£1.09 £0.91

  14 Hex Head Flange (Hhf) Screw
Hex Head Flange (Hhf) Screw
HA3234-42
Available to backorder
Hex Head Flange (Hhf) Screw
£1.88 £1.57

  15 Bumper
Bumper
HA131-8834
Available to backorder
Bumper
£13.61 £11.34

  17 Screw
Screw
HA138-9753
Available to backorder
Screw
£0.48 £0.40

  25 Light Bracket - Red
Light Bracket - Red
HA140-4994-01
Available to backorder
Light Bracket - Red
£26.60 £22.17

  28 Suspension Toeboard
Suspension Toeboard
HA140-4997-01
Available to backorder
Suspension Toeboard
£88.44 £73.70

  30 Ni Lock Nut
Ni Lock Nut
HA3296-42
Available to backorder
Ni Lock Nut
£0.48 £0.40


Description

Toro Z Master 152cm - 74056TE (418031645 - 418290467) Frame Parts Diagram
