Toro Z Master 152cm - 74056TE (418290468 - 418579617) Deck

Description

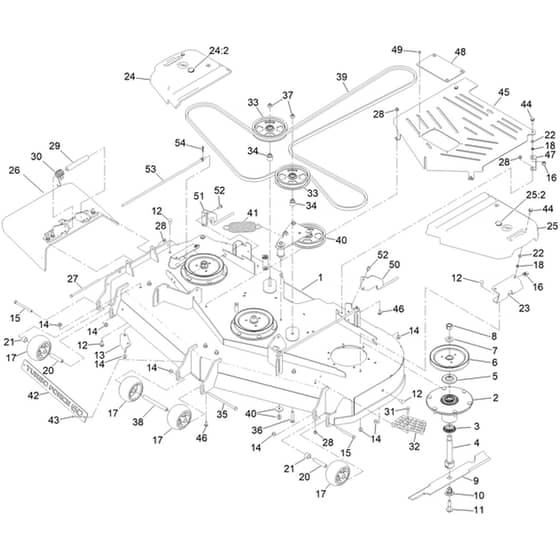

Toro Z Master 152cm - 74056TE (418290468 - 418579617) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA147-4997 Available to backorder	Deck Decal Asm [60. 4000. Service]	£2,062.80 £1,719.00
2	HA137-9780 Available to backorder	Spindle Assembly	£172.28 £143.57
3	HA137-9784 Available to backorder	Bottom Guard	£7.04 £5.87
4	HA138-6045 Available to backorder	Spindle Shaft	£50.24 £41.87
5	HA103-1330 Available to backorder	Guard-Bearing. Top	£5.84 £4.87
6	HA138-6059 Available to backorder	7.23 Blade Drive Sheave	£32.30 £26.92
7	HA103-2802 Available to backorder	Washer	£6.42 £5.35
8	HA116-7306 Available to backorder	Hex Nut	£3.10 £2.58
9	HA140-1240 Available to backorder	20.5 Inch Hi-Flow Blade	£19.22 £16.02
10	HA137-9787 Available to backorder	Hex Bushing	£11.40 £9.50
11	HA109-9220 Available to backorder	Blade Screw	£9.08 £7.57
12	HA3231-27 Available to backorder	Carriage Screw	£1.03 £0.86
13	HA106-3216-01 Available to backorder	Discharge Baffle	£28.70 £23.92
14	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
15	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.24 £2.70
16	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
17	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£26.30 £21.92
18	HA117-2749 Available to backorder	Push Nut	£0.48 £0.40
20	HA133-2129 Available to backorder	Shafting Tube	£16.74 £13.95
21	HA133-2128 Available to backorder	Spacer Tube	£19.12 £15.93
22	HA73-0041 Available to backorder	Thrust Washer	£2.34 £1.95
23	HA114-5882-01 Available to backorder	Lg Belt Cover Bracket - Red	£92.12 £76.77
24	HA117-7815 Available to backorder	Rh Assembly With Asm [60	£104.08 £86.73
25	HA117-3824 Available to backorder	[25.2] Plastic Plug	£3.10 £2.58
25	HA117-7816 Available to backorder	Lh Assembly With Asm [60	£104.08 £86.73
26	HA144-2635 Available to backorder	Rubber Deflector Assembly	£190.22 £158.52
27	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.62 £4.68
28	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
29	HA105-4622 Available to backorder	Spacer	£11.94 £9.95
30	HA108-4052 Available to backorder	Torsion Spring	£28.70 £23.92
31	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£1.01 £0.84
32	HA126-4781-03 Available to backorder	Step-Deck	£40.20 £33.50
33	HA132-9424 Available to backorder	Flat Idler Pulley	£49.04 £40.87
34	HA139-8061 Available to backorder	Idler Bushing	£7.04 £5.87
35	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£17.94 £14.95
36	HA323-17 Available to backorder	Carriage Screw	£3.20 £2.67
37	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
38	HA98-5967 Available to backorder	Wheel Spacer	£17.94 £14.95
39	HA144-0357 Available to backorder	Deck Assembly V-Belt	£177.06 £147.55
40	HA139-1087 Available to backorder	Idler Arm Assembly	£189.84 £158.20
41	HA116-6317 Available to backorder	Extension Spring	£32.30 £26.92
42	HA147-4631-03 Available to backorder	Turbo Force Plate - 60 Inch	£22.52 £18.77
43	HA130-8451 Available to backorder	Trifold Rivet	£1.42 £1.18
44	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
45	HA145-1271-03 Available to backorder	Center Belt Guard	£193.08 £160.90
46	HA3230-23 Available to backorder	Carriage Screw	£1.27 £1.06
47	HA126-9646 Available to backorder	Bracket-Guard	£39.18 £32.65
48	HA144-0420 Available to backorder	Rubber Shield	£22.52 £18.77
49	HA132-5064 Available to backorder	Pop Rivet	£0.84 £0.70
50	HA140-4913 Available to backorder	Left Hand Lower Support	£221.28 £184.40
51	HA140-4914 Available to backorder	Right Hand Lower Support	£221.28 £184.40
52	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
53	HA140-8027 Available to backorder	Lower Skirt Rod	£41.82 £34.85
54	HA119-1415 Available to backorder	Pin-Cotter. Locking	£0.41 £0.34
