Toro Z Master 152cm - 74056TE (412000000 - 414072157) Deck Lift

Description

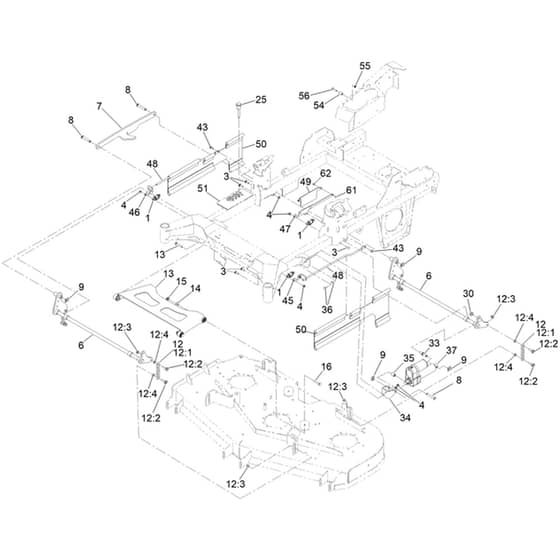

Toro Z Master 152cm - 74056TE (412000000 - 414072157) Deck Lift Parts Diagram

	Part No.	Details
1	HA115-5065 Available to backorder	Flange Bushing	£7.78 £6.48
3	HA3230-22 Available to backorder	Carriage Screw	£2.46 £2.05
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
6	HA140-4975-03 Available to backorder	Deck Lift Shaft Assembly	£128.76 £107.30
7	HA126-4639-03 Available to backorder	Lift Link	£99.72 £83.10
8	HA126-9181 Available to backorder	Clevis Pin	£9.40 £7.83
9	HA138-8491 Available to backorder	Pin Clip	£10.14 £8.45
12	HA126-8877 Available to backorder	Deck Chain Asm	£16.08 £13.40
12	HA1-633447 Available to backorder	[12.1] Chain-Lift. Deck	£12.35 £10.29
12	HA130-0742 Available to backorder	[12.2] Shoulder Bolt	£2.21 £1.84
12	HA104-8301 Available to backorder	[12.3] Hex Flange (Hf) Nut	£1.80 £1.50
12	HA43-0940 Available to backorder	[12.4] Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£2.15 £1.79
13	HA140-1179 Available to backorder	Deck Strut Assembly With Bushings	£204.12 £170.10
14	HA1-373034 Available to backorder	Washer	£5.46 £4.55
15	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
16	HA323-17 Available to backorder	Carriage Screw	£3.52 £2.93
25	HA126-5401 Available to backorder	Pin-Hoc	£25.99 £21.66
30	HA99-5107 Available to backorder	Lock Nut	£3.04 £2.53
33	HA139-8135 Available to backorder	Actuator Pivot Pin	£24.95 £20.79
34	HA147-0271-01 Available to backorder	Cylinder Mounting Plate	£19.97 £16.64
35	HA127-6751 Available to backorder	Aluminum Spacer	£10.39 £8.66
36	HA3230-2 Available to backorder	Carriage Bolt	£0.80 £0.67
37	HA147-7868 Available to backorder	Deck Lift Linear Actuator	£656.84 £547.37
43	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.21 £1.84
45	HA140-4918 Available to backorder	Left Hand Upper Front Mount Bracket	£39.94 £33.28
46	HA140-4919 Available to backorder	Right Hand Upper Front Mount Bracket	£39.94 £33.28
47	HA145-1275 Available to backorder	Upper Mounting Bracket	£18.31 £15.26
48	HA126-7760 Available to backorder	Rod-Support. Upper	£106.44 £88.70
49	HA145-1276-03 Available to backorder	Flag Bracket	£21.62 £18.02
50	HA126-8561 Available to backorder	Guard-Side	£238.92 £199.10
51	HA140-4927 Available to backorder	Decal - Height Of Cut (Hoc)	£58.18 £48.48
54	HA114-2754 Available to backorder	Spacer	£13.61 £11.34
55	HA3296-47 Available to backorder	Lock Nut	£4.45 £3.71
56	HA126-7439 Available to backorder	Screw-Torx	£2.21 £1.84
61	HA3229-11 Available to backorder	Carriage Screw	£1.22 £1.02
62	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
