Toro Z Master 152cm - 72942TE (400000000 - 410999999) Frame

Description

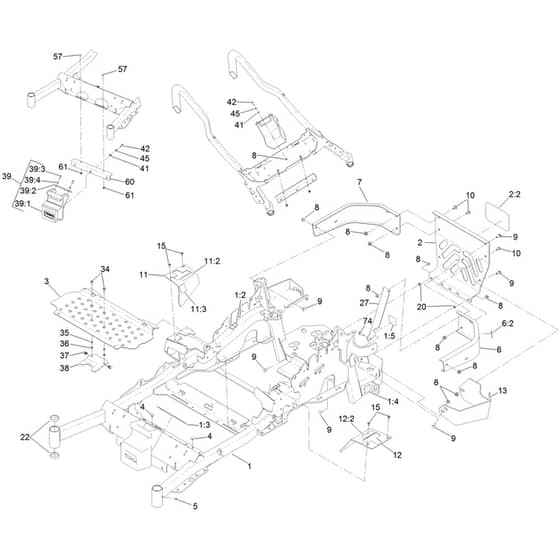

Toro Z Master 152cm - 72942TE (400000000 - 410999999) Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA116-9720 Available to backorder	Mainframe Asm	£1,923.60 £1,603.00
1	HA132-0871 Available to backorder	[1.3] Danger Decal	£13.50 £11.25
1	HA106-2655 Available to backorder	[1.4] Decal - Pinched Finger Hazard	£2.24 £1.87
1	HA133-8062 Available to backorder	[1.5] Decal - Spark Arrestor	£3.76 £3.13
2	HA115-7410 Available to backorder	Rear Guard Assembly With Decals	£259.92 £216.60
2	HA67-7320 Available to backorder	[2.2] Decal [Toro Logo. 7.57X4.96]	£49.88 £41.57
3	HA116-8898-01 Available to backorder	Floorpan	£120.82 £100.68
4	HA1-513658 Available to backorder	Bumper	£7.28 £6.07
5	HA1-811010 Available to backorder	Plug	£5.84 £4.87
6	HA116-0180 Available to backorder	Lh Bumper Asm	£191.52 £159.60
6	HA106-5517 Available to backorder	[6.2] Warning Decal	£4.18 £3.48
7	HA116-0057-03 Available to backorder	Bumper-Rh	£233.04 £194.20
8	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
9	HA3231-22 Available to backorder	Carriage Screw	£1.34 £1.12
10	HA3231-21 Available to backorder	Carriage Screw	£1.42 £1.18
11	HA116-5899 Available to backorder	Rh Motion Control Cover Asm	£49.96 £41.63
11	HA116-5988 Available to backorder	[11.3] Decal - Park Brake	£16.74 £13.95
12	HA116-0580 Available to backorder	Lh Motion Control Cover Asm	£32.30 £26.92
12	HA99-8936 Available to backorder	[12.2] Decal - Motion Control	£25.12 £20.93
13	HA117-0908-03 Available to backorder	Guard Assembly - Black	£192.62 £160.52
15	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.12 £4.27
20	HA107-3154 Available to backorder	Push Nut	£1.42 £1.18
22	HA1-543508 Available to backorder	Bearing Cup	£8.72 £7.27
27	HA127-0324-03 Available to backorder	Strap	£38.60 £32.17
34	HA323-44 Available to backorder	Hex Head Flange (Hhf) Screw	£4.42 £3.68
35	HA3256-60 Available to backorder	Washer-Flat[.266X.500.Stl.Yz..030 Thk]	£2.34 £1.95
36	HA32115-15 Available to backorder	Retainer Nut	£1.18 £0.98
37	HA107069 Available to backorder	Clip	£2.14 £1.78
38	HA119-0395-03 Available to backorder	Captive Adapter	£26.30 £21.92
39	HA115-3616-01 Available to backorder	[39.2] Weight Support Tab	£35.88 £29.90
39	HA323-4 Available to backorder	[39.3] Hex Head (Hh) Screw	£1.60 £1.33
39	HA120-7885 Available to backorder	Weight Assembly	£867.60 £723.00
39	HA120-7881 Available to backorder	[39.1] Weight	£840.00 £700.00
41	HA3256-4 Available to backorder	Flat Washer	£0.53 £0.44
42	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.25 £1.04
45	HA3253-5 Available to backorder	Lock Washer	£0.55 £0.46
57	HA3230-23 Available to backorder	Carriage Screw	£1.27 £1.06
60	HA115-3615-01 Available to backorder	Weight Mount Bracket	£53.82 £44.85
61	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
