Toro Z Master 152cm - 72942TE (414000000 - 999999999) Deck

Name: Toro Z Master 152cm - 72942TE (414000000 - 999999999) Deck
SKU: z_master_152cm_72942te_414999999999_deck-group
Price: 0.36 GBP
Availability: InStock

Part No. z_master_152cm_72942te_414999999999_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 152cm - 72942TE (414000000 - 999999999) Deck

Description

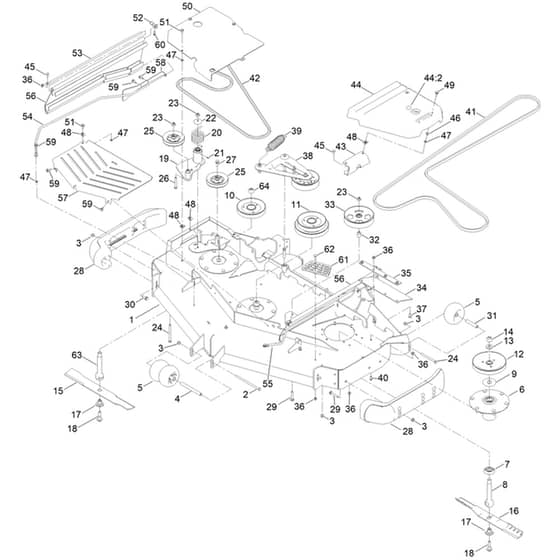

Toro Z Master 152cm - 72942TE (414000000 - 999999999) Deck Parts Diagram

	Part No.	Details
1	HA139-8131 Available to backorder	Deck Decal Asm	£3,255.28 £2,712.73
2	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£18.56 £15.47
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA98-5967 Available to backorder	Wheel Spacer	£18.56 £15.47
5	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
6	HA137-9780 Available to backorder	Spindle Assembly	£172.32 £143.60
7	HA137-9784 Available to backorder	Bottom Guard	£7.28 £6.07
8	HA138-6045 Available to backorder	Spindle Shaft	£51.97 £43.31
9	HA103-1330 Available to backorder	Guard-Bearing. Top	£6.04 £5.03
10	HA140-1184 Available to backorder	Double Blade Drive Sheave	£93.36 £77.80
11	HA140-1183 Available to backorder	Double Blade Drive Sheave	£139.92 £116.60
12	HA138-6059 Available to backorder	7.23 Blade Drive Sheave	£33.41 £27.84
13	HA103-2802 Available to backorder	Washer	£6.97 £5.81
14	HA116-7306 Available to backorder	Hex Nut	£3.20 £2.67
15	HA163-3493 Available to backorder	20.50 Inch Low Flow Blade	£19.88 £16.57

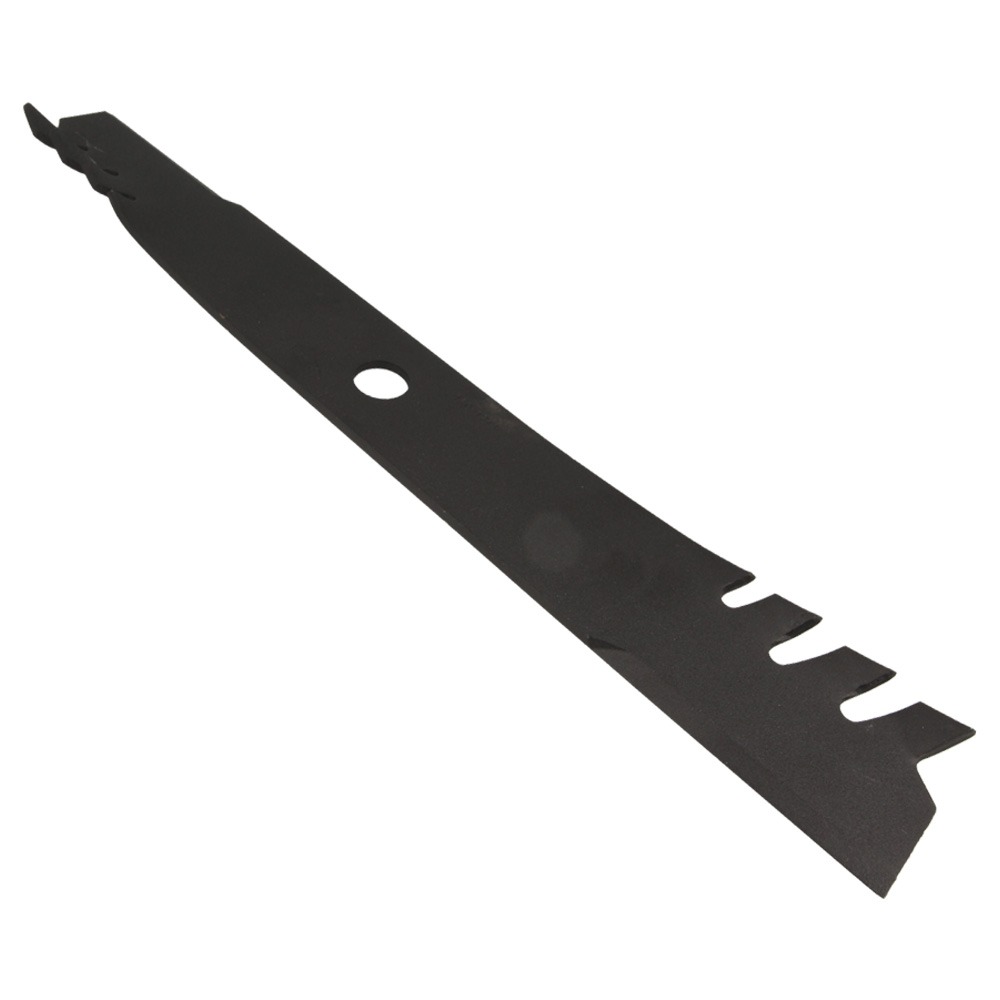

16	HA140-1241 Available to backorder	20.5 Inch Atomic Blade	£24.68 £20.57
17	HA137-9787 Available to backorder	Hex Bushing	£12.14 £10.12
18	HA109-9220 Available to backorder	Blade Screw	£9.64 £8.03
19	HA127-6659 Available to backorder	Deck Idler Assembly	£367.56 £306.30
20	HA108-1921 Available to backorder	Spring-Torsion	£35.06 £29.22
21	HA302-19 Available to backorder	Fitting-Grease [1.4-28X.51.W.Chk]	£1.06 £0.88
22	HA103-2916 Available to backorder	Guard-Top	£2.96 £2.47
23	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
24	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
25	HA126-1478 Available to backorder	Sheave	£95.76 £79.80
26	HA323-13 In stock	Hex Head (Hh) Screw	£2.06 £1.72
27	HA3234-11 Available to backorder	Hex Head Flange (Hhf) Screw	£2.11 £1.76
28	HA112-1479 Available to backorder	Skid-Bumper. Deck	£177.60 £148.00
29	HA323-17 Available to backorder	Carriage Screw	£3.52 £2.93
31	HA98-7912 In stock	Spanner Tube	£20.94 £17.45
32	HA1-633456 Available to backorder	Idler Bushing	£5.57 £4.64
33	HA136-5404 Available to backorder	Flat Idler Pulley	£69.36 £57.80
34	HA116-8191 Available to backorder	Guard-Tire	£19.78 £16.48
35	HA126-0413-01 Available to backorder	Support-Outer Flap	£23.51 £19.59
36	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
37	HA3230-16 Available to backorder	Carriage Screw	£2.21 £1.84
38	HA126-1720 Available to backorder	Deck Idler Asm	£361.44 £301.20
39	HA116-6317 Available to backorder	Extension Spring	£33.41 £27.84
40	HA3274-55 Available to backorder	Hex Socket Button Head (Hsbh) Screw	£3.95 £3.29
41	HA125-9371 Available to backorder	Z-Master Deck Assembly Belt	£174.72 £145.60
42	HA116-8187 Available to backorder	Deck Assembly 2Nd V-Belt	£124.44 £103.70
43	HA114-5882-01 Available to backorder	Lg Belt Cover Bracket - Red	£92.16 £76.80
44	HA117-3824 Available to backorder	[44.2] Plastic Plug	£3.20 £2.67
44	HA117-7816 Available to backorder	Lh Assembly With Asm [60	£104.04 £86.70
45	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
46	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
47	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
48	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
49	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
50	HA131-3997-03 Available to backorder	Spindle Cover	£197.88 £164.90
51	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.21 £1.84
52	HA131-4194-03 Available to backorder	Upper Mounting Bracket - Black	£43.26 £36.05
53	HA131-3987 Available to backorder	Upper Support Rod	£46.60 £38.83
54	HA132-5990 Available to backorder	Right Hand (Rh) Lower Rod Support	£69.24 £57.70
55	HA132-5988 Available to backorder	Left Hand (Lh) Lower Support Rod	£69.24 £57.70
56	HA131-4016 Available to backorder	Side Guard	£33.26 £27.72
57	HA131-3982-03 Available to backorder	Front Shield	£167.28 £139.40
58	HA131-4197-03 Available to backorder	Rd Rear Mounting Bracket - Black	£29.94 £24.95
59	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
60	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.29 £4.41
61	HA126-4781-03 Available to backorder	Step-Deck	£43.26 £36.05
62	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
63	HA140-1188 Available to backorder	Shaft-Spindle. Int. Hex Lh Thd	£51.97 £43.31
64	HA140-1230 Available to backorder	Left Hand (Lh) Hex Lock Nut	£19.97 £16.64
