Toro Z Master 152cm - 72942TE (411000000 - 413999999) Motion Control

Description

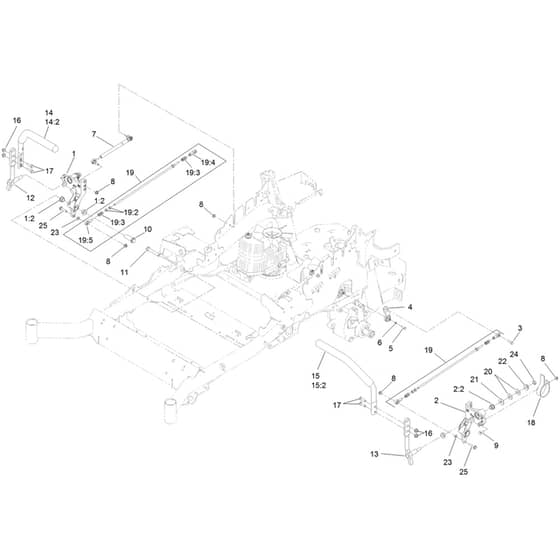

Toro Z Master 152cm - 72942TE (411000000 - 413999999) Motion Control Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA116-0880 Available to backorder	Rh Motion Control And Bushing Asm	£65.80 £54.83
2	HA116-0881 Available to backorder	Lh Motion Control And Bushing Asm	£65.80 £54.83
2	HA109-8054 Available to backorder	[2.2] Flange Bushing	£5.38 £4.48
3	HA116-0648 Available to backorder	Screw-Hh. Thd Lock	£1.54 £1.28
4	HA109-4581 Available to backorder	Arm-Control. Pump	£9.56 £7.97
5	HA9080046 Available to backorder	Hex Head (Hh) Screw	£4.06 £3.38
6	HA1-303435 Available to backorder	Spring Washer	£2.18 £1.82
8	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
9	HA3230-2 Available to backorder	Carriage Bolt	£0.86 £0.72
10	HA109-5891 Available to backorder	Hub-Threaded	£16.74 £13.95
11	HA325-12 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
12	HA116-0039 Available to backorder	Lever-Control Motion. Rh	£61.00 £50.83
13	HA116-0040 Available to backorder	Lever-Control Motion. Lh	£61.00 £50.83
14	HA135-4371 Available to backorder	Rh Handle Asm	£93.32 £77.77
15	HA135-4373 Available to backorder	Lh Handle Asm	£93.32 £77.77
15	HA109-5668 Available to backorder	[15.2] Grip-Lever. Control	£16.74 £13.95
16	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
17	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
18	HA109-5575 Available to backorder	Spring-Leaf	£17.94 £14.95
19	HA109-8106 Available to backorder	Front Pump Linkage Asm	£87.32 £72.77
19	HA1-543017 Available to backorder	[19.5] Balljoint-Rh	£23.92 £19.93
19	HA3219-2 Available to backorder	[19.2] Hex Nut	£0.70 £0.58
19	HA1-323245 Available to backorder	[19.3] Compression Spring	£7.28 £6.07
19	HA1-633152 Available to backorder	[19.4] Balljoint-Lh	£23.92 £19.93
20	HA109-9505 In stock	Spring Washer	Was £5.56 £4.63 Special Price £2.39 £1.99
21	HA3256-6 Available to backorder	Flat Washer	£0.65 £0.54
22	HA32128-56 Available to backorder	Hex Flange (Hf) Nut	£1.70 £1.42
23	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
24	HA3218-5 Available to backorder	Jam Nut	£0.50 £0.42
25	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.70 £2.25
