Toro Z Master 152cm - 72942TE (411000000 - 413999999) Deck

Name: Toro Z Master 152cm - 72942TE (411000000 - 413999999) Deck
SKU: z_master_152cm_72942te_411413999999_deck-group
Price: 0.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 152cm - 72942TE (411000000 - 413999999) Deck

Description

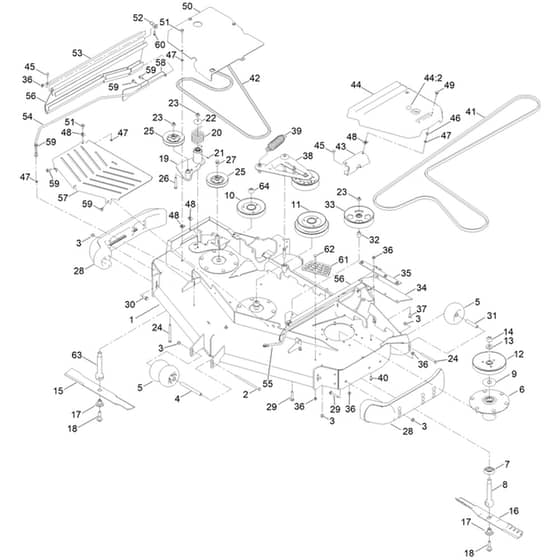

Toro Z Master 152cm - 72942TE (411000000 - 413999999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-8131 Available to backorder	Deck Decal Asm	£3,192.00 £2,660.00
2	HA108-5388 Available to backorder	Hex Head (Hh) Screw	£17.94 £14.95
3	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
4	HA98-5967 Available to backorder	Wheel Spacer	£17.94 £14.95
5	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£26.30 £21.92
6	HA137-9780 Available to backorder	Spindle Assembly	£165.36 £137.80
7	HA137-9784 Available to backorder	Bottom Guard	£7.04 £5.87
8	HA138-6045 Available to backorder	Spindle Shaft	£50.24 £41.87
9	HA103-1330 Available to backorder	Guard-Bearing. Top	£5.84 £4.87
10	HA140-1184 Available to backorder	Double Blade Drive Sheave	£93.32 £77.77
11	HA140-1183 Available to backorder	Double Blade Drive Sheave	£134.40 £112.00
12	HA138-6059 Available to backorder	7.23 Blade Drive Sheave	£32.30 £26.92
13	HA103-2802 Available to backorder	Washer	£6.74 £5.62
14	HA116-7306 Available to backorder	Hex Nut	£3.10 £2.58
15	HA163-3493 Available to backorder	20.50 Inch Low Flow Blade	£19.22 £16.02
16	HA140-1241 Available to backorder	20.5 Inch Atomic Blade	£23.20 £19.33
17	HA137-9787 Available to backorder	Hex Bushing	£11.74 £9.78
18	HA109-9220 Available to backorder	Blade Screw	£9.08 £7.57
19	HA127-6659 Available to backorder	Deck Idler Assembly	£337.92 £281.60
20	HA108-1921 Available to backorder	Spring-Torsion	£33.90 £28.25
21	HA302-19 Available to backorder	Fitting-Grease [1.4-28X.51.W.Chk]	£1.02 £0.85
22	HA103-2916 Available to backorder	Guard-Top	£2.86 £2.38
23	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.06 £0.88
24	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.44 £2.87
25	HA126-1478 Available to backorder	Sheave	£95.70 £79.75
26	HA323-13 In stock	Hex Head (Hh) Screw	£2.12 £1.77
27	HA3234-11 Available to backorder	Hex Head Flange (Hhf) Screw	£2.04 £1.70
28	HA112-1479 Available to backorder	Skid-Bumper. Deck	£170.52 £142.10
29	HA323-17 Available to backorder	Carriage Screw	£3.40 £2.83
31	HA98-7912 In stock	Spanner Tube	£20.24 £16.87
32	HA1-633456 Available to backorder	Idler Bushing	£5.38 £4.48
33	HA136-5404 Available to backorder	Flat Idler Pulley	£69.38 £57.82
34	HA116-8191 Available to backorder	Guard-Tire	£19.12 £15.93
35	HA126-0413-01 Available to backorder	Support-Outer Flap	£22.72 £18.93
36	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
37	HA3230-16 Available to backorder	Carriage Screw	£2.14 £1.78
38	HA126-1720 Available to backorder	Deck Idler Asm	£332.16 £276.80
39	HA116-6317 Available to backorder	Extension Spring	£32.30 £26.92
40	HA3274-55 Available to backorder	Hex Socket Button Head (Hsbh) Screw	£3.82 £3.18
41	HA125-9371 Available to backorder	Z-Master Deck Assembly Belt	£167.64 £139.70
42	HA116-8187 Available to backorder	Deck Assembly 2Nd V-Belt	£119.40 £99.50
43	HA114-5882-01 Available to backorder	Lg Belt Cover Bracket - Red	£92.12 £76.77
44	HA117-3824 Available to backorder	[44.2] Plastic Plug	£3.10 £2.58
44	HA117-7816 Available to backorder	Lh Assembly With Asm [60	£99.96 £83.30
45	HA3230-23 Available to backorder	Carriage Screw	£1.06 £0.88
46	HA73-0041 Available to backorder	Thrust Washer	£2.40 £2.00
47	HA117-2749 Available to backorder	Push Nut	£0.42 £0.35
48	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
49	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.04 £2.53
50	HA131-3997-03 Available to backorder	Spindle Cover	£189.96 £158.30
51	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.14 £1.78
52	HA131-4194-03 Available to backorder	Upper Mounting Bracket - Black	£41.82 £34.85
53	HA131-3987 Available to backorder	Upper Support Rod	£45.04 £37.53
54	HA132-5990 Available to backorder	Right Hand (Rh) Lower Rod Support	£69.18 £57.65
55	HA132-5988 Available to backorder	Left Hand (Lh) Lower Support Rod	£69.18 £57.65
56	HA131-4016 Available to backorder	Side Guard	£32.16 £26.80
57	HA131-3982-03 Available to backorder	Front Shield	£160.68 £133.90
58	HA131-4197-03 Available to backorder	Rd Rear Mounting Bracket - Black	£28.94 £24.12
59	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
60	HA32144-10 Available to backorder	Hex Washer Head (Hwh) Screw	£5.12 £4.27
61	HA126-4781-03 Available to backorder	Step-Deck	£41.82 £34.85
62	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.88 £0.73
63	HA140-1188 Available to backorder	Shaft-Spindle. Int. Hex Lh Thd	£50.24 £41.87
64	HA140-1230 Available to backorder	Left Hand (Lh) Hex Lock Nut	£19.30 £16.08
