Toro Z Master 152cm - 72279TE (406397919 - 406399999) Fork, Caster Wheel and Z Stand

Name: Toro Z Master 152cm - 72279TE (406397919 - 406399999) Fork, Caster Wheel and Z Stand
SKU: z_master_152cm_72279te_4639791946399999_fork_caster_wheelz_stand
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 152cm - 72279TE (406397919 - 406399999) Fork, Caster Wheel and Z Stand

Description

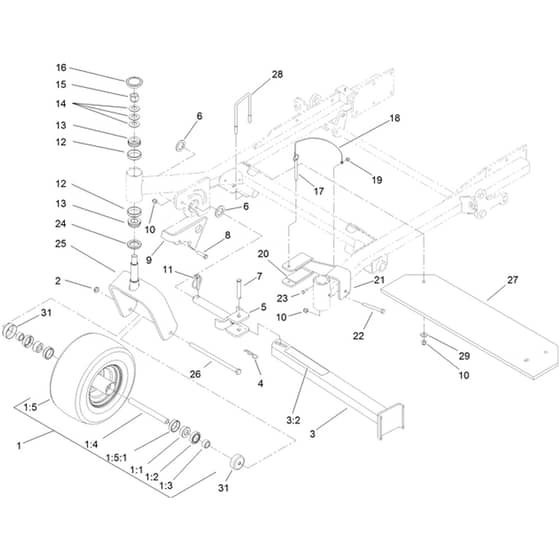

Toro Z Master 152cm - 72279TE (406397919 - 406399999) Fork, Caster Wheel and Z Stand Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	HA1-633584 Available to backorder	Cup Bearing	£9.56 £7.97
1	HA109-9127 Available to backorder	Wheel And Tire Asm	£409.20 £341.00
1	HA1-633585 Available to backorder	[1.1] Bearing-Cone. Taper	£25.12 £20.93
1	HA103-0063 Available to backorder	[1.2] Seal-Caster	£9.92 £8.27
1	HA103-3051 Available to backorder	[1.3] Spacer-Nut	£9.56 £7.97
1	HA126-5361 Available to backorder	[1.4] Axle Caster Assembly	£28.94 £24.12
2	HA3296-23 Available to backorder	Ni Lock Nut	£0.98 £0.82
3	HA107-1874 Available to backorder	Leg Assembly	£257.52 £214.60
3	HA106-7464 Available to backorder	[3.2] Decal-Z Stand	£10.76 £8.97
4	HA3290-355 Available to backorder	Hair Pin	£2.50 £2.08
5	HA100-9692-01 Available to backorder	Pivot Pan Assembly	£215.28 £179.40
6	HA3-6781 Available to backorder	Thrust Washer	£2.18 £1.82
7	HA283-55 Available to backorder	Clevis Pin	£13.32 £11.10
8	HA323-8 Available to backorder	Hex Head (Hh) Screw	£1.88 £1.57
9	HA136-1657-01 Available to backorder	Latch Plate - Red	£65.80 £54.83
10	HA3296-39 Available to backorder	Lock Nut	£2.74 £2.28
11	HA283-71 Available to backorder	Pin-Lynch	£4.28 £3.57
12	HA254-72 Available to backorder	1.98 Inch X 0.42 Inch Bearing Cup	£15.56 £12.97
13	HA254-94 Available to backorder	1.00 Inch X 0.58 Inch Cone Bearing	£13.30 £11.08
14	HA1-633508 In stock	Belleville Washer	£5.16 £4.30
15	HA3296-51 Available to backorder	Ni Lock Nut	£5.06 £4.22
16	HA103-4882 Available to backorder	Grease Cap	£8.72 £7.27
17	HA105-1647 Available to backorder	Cotterless Hitch Pin	£22.72 £18.93
18	HA100-9385 Available to backorder	Lanyard-Nylon	£8.42 £7.02
19	HA3296-42 Available to backorder	Ni Lock Nut	£0.44 £0.37
20	HA100-6547 Available to backorder	Rubber Cushion	£13.16 £10.97
21	HA100-6542-01 Available to backorder	Z Cradle Bracket - Red	£166.28 £138.57
22	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.00 £1.67
23	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.42 £1.18
24	HA116-5647 Available to backorder	Seal-Grease	£6.34 £5.28
25	HA116-6705-01 Available to backorder	Caster	£187.08 £155.90
26	HA325-24 Available to backorder	Hex Head (Hh) Screw	£22.52 £18.77
27	HA107-9874-01 Available to backorder	Weight	£847.20 £706.00
28	HA110-0817 Available to backorder	3 Inch U-Bolt	£26.30 £21.92
29	HA3256-4 Available to backorder	Flat Washer	£0.53 £0.44
31	HA103-2768 Available to backorder	Guard-Seal	£4.06 £3.38
