Toro Z Master 152cm - 72279TE (410000000 - 999999999) Traction Frame and Floor Pan

Description

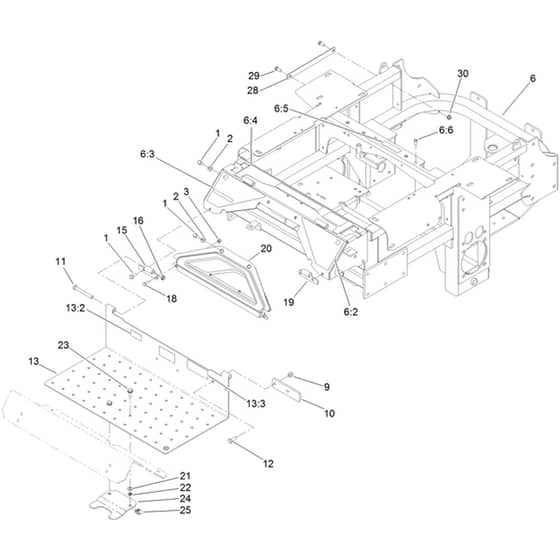

Toro Z Master 152cm - 72279TE (410000000 - 999999999) Traction Frame and Floor Pan Parts Diagram

	Part No.	Details
1	HA322-43 Available to backorder	Screw-Hh[.312-18X.750.Gr5.Bo.Full Thd]	£1.63 £1.36
2	HA3256-70 Available to backorder	Washer-Flat[.344X.688.Stl.Bz..080..051]	£0.43 £0.36
3	HA3296-42 Available to backorder	Ni Lock Nut	£0.48 £0.40
6	HA131-7712 Available to backorder	Traction Frame Assembly	£1,897.20 £1,581.00
6	HA107-3963 Available to backorder	[6.2] Decal - Danger Left Mainframe	£128.04 £106.70
6	HA107-3964 Available to backorder	[6.3] Decal - Warning For Right Main Frame	£128.04 £106.70
6	HA110-0820 Available to backorder	[6.4] Decal - Top Console	£80.16 £66.80
6	HA112-9028 Available to backorder	[6.5] Decal - Missing Cover	£25.99 £21.66
6	HA32148-11 Available to backorder	[6.6] Clinch Nut	£2.66 £2.22
9	HA3296-39 Available to backorder	Lock Nut	£2.83 £2.36
10	HA1-633964-03 Available to backorder	Stop-Brake. Park	£14.83 £12.36
11	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.20 £1.83
12	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
13	HA115-3851 Available to backorder	Floor Pan Assembly	£254.16 £211.80
13	HA98-4387 Available to backorder	[13.2] Decal-Protection. Ear	£119.99 £99.99
13	HA121-7559 Available to backorder	[13.3] Decal - Bio-Ready Diesel	£8.65 £7.21
15	HA106-7488-03 Available to backorder	Hinge Assembly - Lh [Black	£25.99 £21.66
16	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.34 £1.12
18	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
19	HA106-7489-03 Available to backorder	Right Hand Floorpan Hinge	£25.99 £21.66
20	HA106-7498 Available to backorder	Z-Master Pocket	£40.84 £34.03
21	HA73-0041 Available to backorder	Thrust Washer	£2.48 £2.07
22	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
23	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
24	HA119-0395-03 Available to backorder	Captive Adapter	£27.20 £22.67
25	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
28	HA131-8671-03 Available to backorder	Strip	£4.08 £3.40
29	HA323-5 Available to backorder	Hex Head (Hh) Screw	£0.71 £0.59
30	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
