Toro Z Master 152cm - 72279TE (410000000 - 999999999) Cooling System

Description

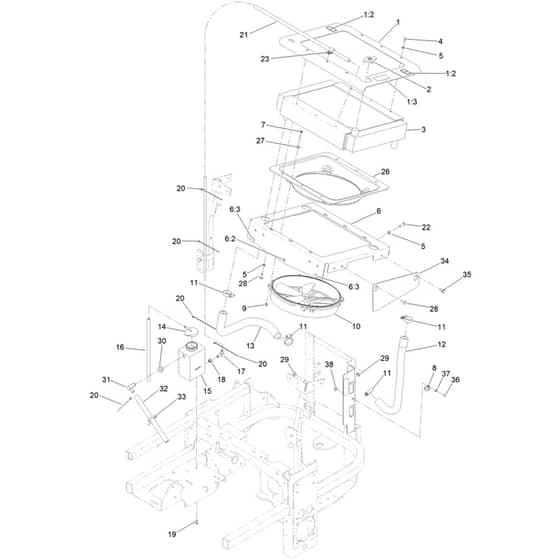

Toro Z Master 152cm - 72279TE (410000000 - 999999999) Cooling System Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA110-3845 Available to backorder	Top Radiator Plate Assembly	£199.92 £166.60
1	HA93-8069 Available to backorder	[1.2] Decal-Surface. Hot [(Europe)]	£16.16 £13.47
1	HA110-3842 Available to backorder	[1.3] Decal - Antifreeze	£10.04 £8.37
2	HA1-643161 Available to backorder	Radiator Cap	£95.70 £79.75
3	HA107-9932 Available to backorder	Radiator	£1,706.40 £1,422.00
4	HA322-1 Available to backorder	Hex Head (Hh) Screw	£0.41 £0.34
5	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
6	HA131-8748 Available to backorder	Bottom Radiator Plate Assembly	£248.88 £207.40
6	HA32148-6 Available to backorder	[6.2] Clinch Nut	£1.94 £1.62
6	HA1-513658 Available to backorder	[6.3] Bumper	£7.28 £6.07
7	HA108-5988 Available to backorder	Hex Washer Head (Hwh) Screw	£3.82 £3.18
8	HA103-0113 Available to backorder	Clip-Loom	£4.18 £3.48
9	HA1-804254 Available to backorder	Nut-Lock. Hh	£1.54 £1.28
10	HA1-633831 Available to backorder	Fan	£716.40 £597.00
11	HA2412-34 Available to backorder	Hose Clamp	£3.36 £2.80
12	HA108-5372 Available to backorder	Left Hand (Lh) Radiator Hose	£119.04 £99.20
13	HA108-5904 Available to backorder	Engine Outlet Hose	£143.18 £119.32
14	HA1-643164 Available to backorder	Cap-Tank. Overflow	£22.72 £18.93
15	HA117-0941 Available to backorder	Overflow Tank	£99.30 £82.75
16	HA1-603954 Available to backorder	Hose-Line. Fuel	£10.76 £8.97
17	HA46-6550 Available to backorder	Fitting-Elbow. 90 Deg [Barb-5. Barb.400]	£60.16 £50.13
18	HA46-6560 In stock	Bushing-Valve. Fuel	£4.60 £3.83
19	HA321-2 Available to backorder	Screw-Hh [.250-20X.500.Gr5.Yz]	£4.38 £3.65
20	HA1-303287 Available to backorder	Cable Tie	£0.98 £0.82
21	HA103-1428 Available to backorder	Hose-Overflow	£32.30 £26.92
22	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.65 £0.54
23	HA1-603727 Available to backorder	Clip-Loom	£3.10 £2.58
26	HA108-5971 Available to backorder	Engine Cooling Shroud	£244.56 £203.80
27	HA3256-67 Available to backorder	Washer	£0.94 £0.78
28	HA322-3 Available to backorder	Hex Head (Hh) Screw	£1.13 £0.94
29	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.42 £1.18
30	HA136-8531 Available to backorder	Bushing	£4.08 £3.40
31	HA117-0943 Available to backorder	Elbow Fitting	£27.50 £22.92
32	HA115-4969 Available to backorder	Overflow Hose	£11.94 £9.95
33	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
34	HA131-8678-03 Available to backorder	Radiator Shield	£14.34 £11.95
35	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
36	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.42 £1.18
37	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
38	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
