Toro Z Master 132cm - 77292TE (408875659 - 409999999) Hydraulic Drive

Description

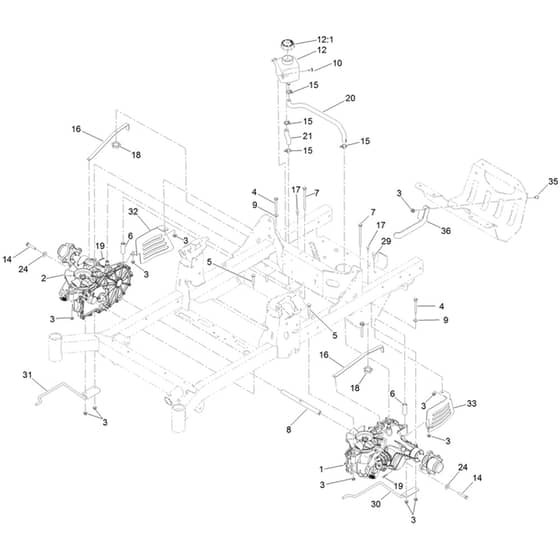

Toro Z Master 132cm - 77292TE (408875659 - 409999999) Hydraulic Drive Parts Diagram

	Part No.	Details
1	HA126-4882 Available to backorder	Lh Transaxle Asm	£1,685.57 £1,404.64
2	HA126-4883 Available to backorder	Rh Transaxle Asm	£1,685.57 £1,404.64
3	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
4	HA126-4687 Available to backorder	Hex Head Flange (Hhf) Screw	£1.84 £1.53
5	HA3230-7 Available to backorder	Carriage Bolt	£1.51 £1.26
6	HA116-5809 Available to backorder	Spacer-Hydro	£6.94 £5.78
7	HA126-5896 Available to backorder	Hex Head (Hh) Screw	£2.83 £2.36
8	HA116-6833 Available to backorder	Shaft-Spacer	£43.31 £36.09
9	HA1-303334 Available to backorder	Spring Washer	£2.98 £2.48
10	HA126-6266 Available to backorder	Screw-Tph	£1.60 £1.33
12	HA109-2250 Available to backorder	Tank-Hyd	£75.36 £62.80
12	HA109-3320 Available to backorder	[12.1] Cap-Reservoir. Hyd	£33.41 £27.84
14	HA94-7972 Available to backorder	Hex Head (Hh) Loctite Screw	£4.20 £3.50
15	HA126-0327 Available to backorder	Clamp-Hose	£1.49 £1.24
16	HA109-5395 Available to backorder	Hydro Bypass Arm	£12.35 £10.29
17	HA3229-1 Available to backorder	Carriage Bolt	£4.20 £3.50
18	HA108-6402 Available to backorder	Handle Knob	£1.72 £1.43
19	HA1-806003 Available to backorder	Cotter Pin	£1.72 £1.43
20	HA133-1325 Available to backorder	Hydraulic Hose	£19.78 £16.48
21	HA133-1320 Available to backorder	Hydraulic Hose	£7.40 £6.17
24	HA3256-4 In stock	Flat Washer	£0.48 £0.40
29	HA3230-22 Available to backorder	Carriage Screw	£2.46 £2.05
30	HA126-7778 Available to backorder	Support-Upper. Lh	£167.28 £139.40
31	HA126-7779 Available to backorder	Support-Upper. Rh	£167.28 £139.40
32	HA126-7755-03 Available to backorder	Guard-Clutch. Rh	£101.40 £84.50
33	HA126-7756-03 Available to backorder	Guard-Clutch. Lh	£101.40 £84.50
35	HA126-6268 Available to backorder	Screw-Tth	£1.72 £1.43
36	HA126-8946-03 Available to backorder	Bracket-Guard. Muffler	£64.32 £53.60
