Toro Z Master 132cm - 77292TE (408875659 - 409999999) Deck Lift

Name: Toro Z Master 132cm - 77292TE (408875659 - 409999999) Deck Lift
SKU: z_master_132cm_77292te_4887565949999999_deck_lift-group
Price: 0.55 GBP
Availability: InStock

Part No. z_master_132cm_77292te_4887565949999999_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 77292TE (408875659 - 409999999) Deck Lift

Description

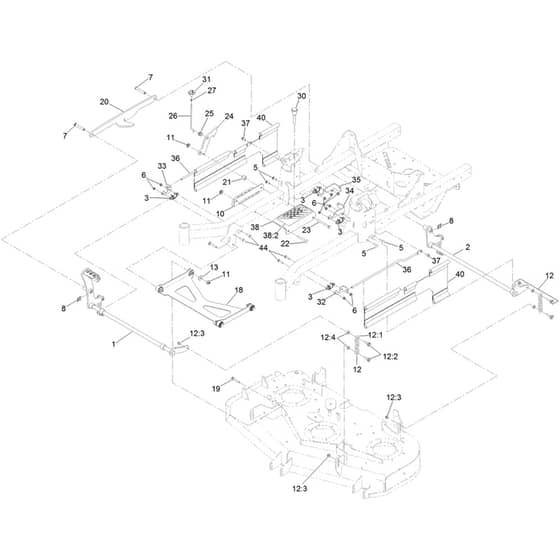

Toro Z Master 132cm - 77292TE (408875659 - 409999999) Deck Lift Parts Diagram

	Part No.	Details
1	HA126-3342-03 Available to backorder	Shaft-Lift. Deck	£175.32 £146.10
2	HA126-3343-03 Available to backorder	Shaft-Lift. Deck (Rear)	£141.60 £118.00
3	HA115-5065 Available to backorder	Flange Bushing	£7.78 £6.48
5	HA3230-22 Available to backorder	Carriage Screw	£2.46 £2.05
6	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
7	HA126-9181 Available to backorder	Clevis Pin	£9.40 £7.83
8	HA138-8491 Available to backorder	Pin Clip	£10.14 £8.45
10	HA126-4640-03 Available to backorder	Angle-Hoc. Lower	£129.24 £107.70
11	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
12	HA126-8877 Available to backorder	Deck Chain Asm	£16.08 £13.40
12	HA1-633447 Available to backorder	[12.1] Chain-Lift. Deck	£12.35 £10.29
12	HA130-0742 Available to backorder	[12.2] Shoulder Bolt	£2.21 £1.84
12	HA104-8301 Available to backorder	[12.3] Hex Flange (Hf) Nut	£1.80 £1.50
12	HA43-0940 Available to backorder	[12.4] Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£2.15 £1.79
13	HA1-373034 Available to backorder	Washer	£5.46 £4.55
18	HA126-8365 Available to backorder	Deck Strut Asm	£212.04 £176.70
19	HA323-17 Available to backorder	Carriage Screw	£3.52 £2.93
20	HA126-4639-03 Available to backorder	Lift Link	£99.72 £83.10
21	HA126-5221 Available to backorder	Spacer-Stepped	£6.66 £5.55
22	HA3231-42 Available to backorder	Carriage Screw	£4.00 £3.33
23	HA135-0313 Available to backorder	Screw-Carr	£4.46 £3.72
24	HA126-5222 Available to backorder	Plate-Lock. Transport	£21.02 £17.52
25	HA126-5593 Available to backorder	Grommet	£1.60 £1.33
26	HA126-5223 Available to backorder	Rod-Lock. Transport	£6.04 £5.03
27	HA3218-1 Available to backorder	Jam Nut	£1.60 £1.33
30	HA126-5401 Available to backorder	Pin-Hoc	£25.99 £21.66
31	HA126-7019 Available to backorder	Knob	£12.35 £10.29
32	HA126-7763 Available to backorder	Bracket-Mount. Front (Lh)	£62.16 £51.80
33	HA126-7810 Available to backorder	Bracket-Mount. Front (Rh)	£62.16 £51.80
34	HA126-7765 Available to backorder	Bracket-Mount. Upper Rear (Lh)	£65.76 £54.80
35	HA126-7812 Available to backorder	Bracket-Mount. Upper Rear (Rh)	£65.76 £54.80
36	HA126-7760 Available to backorder	Rod-Support. Upper	£106.44 £88.70
37	HA3234-47 Available to backorder	Hex Head Flange (Hhf) Screw	£2.21 £1.84
38	HA126-8146 Available to backorder	Hoc Plate W.Decal	£288.84 £240.70
38	HA126-7816 Available to backorder	[38.2] Decal-Hoc	£67.56 £56.30
40	HA126-8561 Available to backorder	Guard-Side	£238.92 £199.10
44	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
