Toro Z Master 132cm - 77292TE (414529978 - 999999999) Suspension Platform and Seat

Description

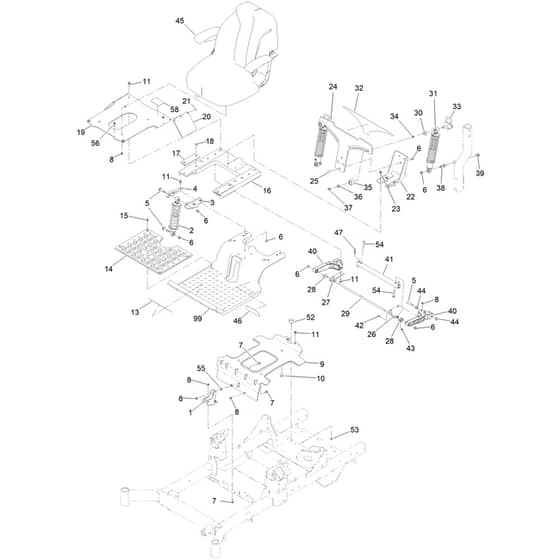

Toro Z Master 132cm - 77292TE (414529978 - 999999999) Suspension Platform and Seat Parts Diagram

	Part No.	Details
1	HA133-1864-03 Available to backorder	Front Lower Shock Bracket	£34.94 £29.12
2	HA136-8971 Available to backorder	Shock And Spring Assembly	£150.72 £125.60
3	HA133-9318-03 Available to backorder	Left Hand Upper Shock Mount Bracket	£18.56 £15.47
4	HA133-9319-03 Available to backorder	Right Hand Shock Mount Upper Bracket	£18.56 £15.47
5	HA136-9028 Available to backorder	Hex Washer Head (Hwh) Shoulder Bolt	£1.97 £1.64
6	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
7	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
8	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
9	HA136-8963-03 Available to backorder	Tank Bracket	£201.00 £167.50
10	HA135-0505 Available to backorder	Bumper-Seat	£1.46 £1.22
11	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
13	HA132-0871 Available to backorder	Danger Decal	£14.96 £12.47
14	HA144-2634 Available to backorder	Floor Mat	£64.32 £53.60
15	HA117-2382 Available to backorder	Plug-Plastic[Pa66. Fir Tree]	£0.85 £0.71
16	HA137-7031 Available to backorder	Rear Subframe	£130.32 £108.60
17	HA133-7089-03 Available to backorder	Backer Plate	£9.14 £7.62
18	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
19	HA136-8962-03 Available to backorder	Seat Plate	£131.88 £109.90
20	HA136-8967 Available to backorder	Rubber Flap	£9.26 £7.72
21	HA132-5064 Available to backorder	Pop Rivet	£0.72 £0.60
22	HA136-8955-03 Available to backorder	Bracket Assembly - Lower [Black	£101.40 £84.50
23	HA32144-109 Available to backorder	Screw-Thd [Form Hwh3.8-16 X 1.25. Yz]	£2.21 £1.84
24	HA136-1744-03 Available to backorder	Adjustable Shock Mounting Plate	£138.36 £115.30
25	HA3231-22 Available to backorder	Carriage Screw	£1.22 £1.02
26	HA136-1741-03 Available to backorder	Left Hand Trailing Bracket Arm	£16.08 £13.40
27	HA136-1742-03 Available to backorder	Right Hand Trailing Arm Bracket	£16.08 £13.40
28	HA127-0146 Available to backorder	Flange Bearing	£9.14 £7.62
29	HA136-1739 Available to backorder	Pivot Rod	£37.12 £30.93
30	HA131-4699 Available to backorder	Plastic Washer	£7.31 £6.09
31	HA133-5193 Available to backorder	Shock And Spring Assembly	£148.32 £123.60
32	HA136-1720 Available to backorder	Decal - Myride	£36.60 £30.50
33	HA136-9017 Available to backorder	Cam Lock Assembly - Black	£44.54 £37.12
34	HA133-5109 Available to backorder	Sleeve Bearing	£2.83 £2.36
35	HA136-5636 Available to backorder	Cam Lock Knob	£14.83 £12.36
36	HA3-6803 Available to backorder	Washer-Adjusting	£1.28 £1.07
37	HA3296-45 Available to backorder	Hex Nut	£4.69 £3.91
38	HA133-4401 Available to backorder	Shoulder Bolt	£21.62 £18.02
39	HA99-5107 Available to backorder	Lock Nut	£3.04 £2.53
40	HA136-8979 Available to backorder	Trailing Arm	£39.58 £32.98
41	HA137-9754-03 Available to backorder	Trailing Arm Tube	£156.72 £130.60
42	HA3229-20 Available to backorder	Carriage Screw	£1.49 £1.24
43	HA120-4578 Available to backorder	Hex Flange (Hf) Nut	£0.71 £0.59
44	HA125-5239 Available to backorder	Bushing-Flange	£7.22 £6.02
45	HA144-3771 Available to backorder	Fixed Seat (Service)	£931.40 £776.17
46	HA136-7470 Available to backorder	Decal	£7.40 £6.17
47	HA105-1853 Available to backorder	Hose Clamp	£4.32 £3.60
52	HA131-8834 Available to backorder	Bumper	£13.61 £11.34
53	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
54	HA3230-6 Available to backorder	Carriage Bolt	£1.01 £0.84
55	HA117-2749 Available to backorder	Push Nut	£0.43 £0.36
56	HA135-2015 Available to backorder	Shoulder Screw	£3.83 £3.19
58	HA136-9024 Available to backorder	Decal - Service Aid	£6.04 £5.03
99	HA147-1654 Available to backorder	Front Subframe	£468.01 £390.01
