Toro Z Master 132cm - 77292TE (413000000 - 414529977) LH Transaxle No. 126-4882

Name: Toro Z Master 132cm - 77292TE (413000000 - 414529977) LH Transaxle No. 126-4882
SKU: z_master_132cm_77292te_413414529977_lh_transaxle_no_126_4882-gro
Price: 3.97 GBP
Availability: InStock

Part No. z_master_132cm_77292te_413414529977_lh_transaxle_no_126_4882-gro

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 77292TE (413000000 - 414529977) LH Transaxle No. 126-4882

Description

Toro Z Master 132cm - 77292TE (413000000 - 414529977) LH Transaxle No. 126-4882 Parts Diagram

	Part No.	Details

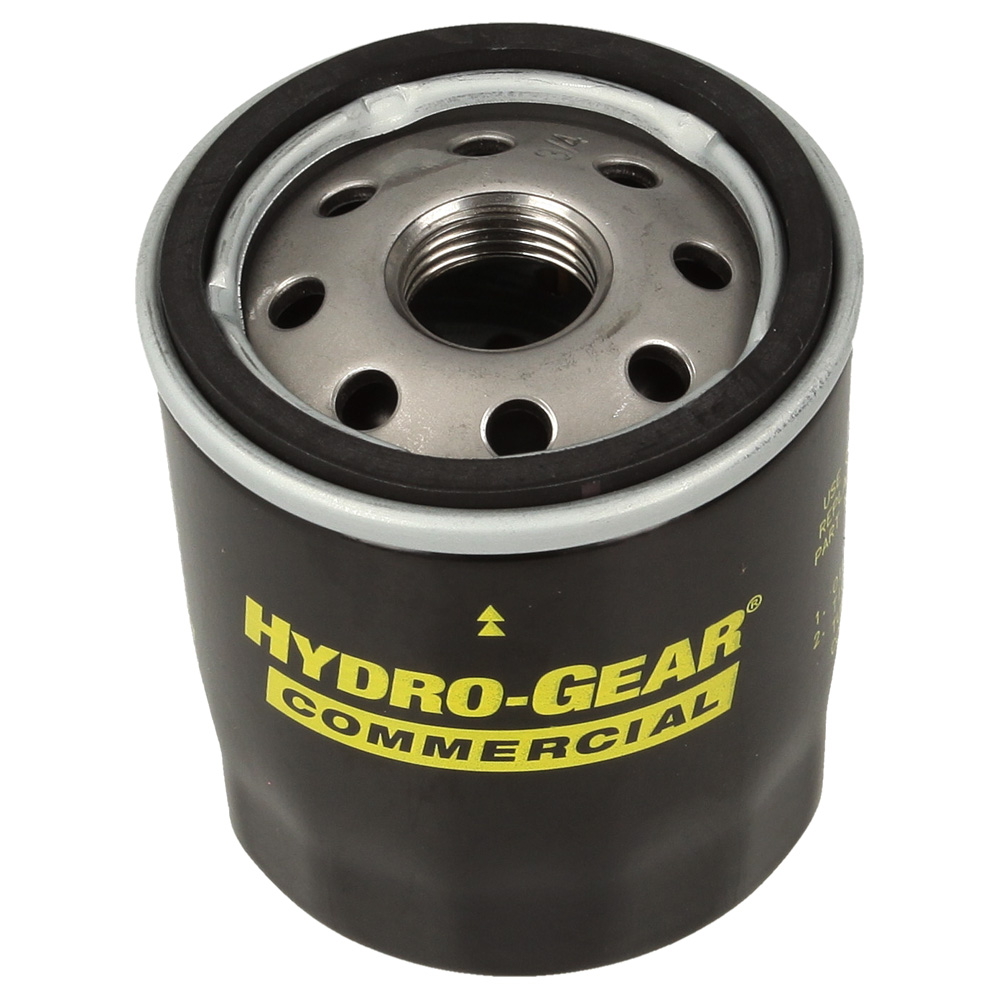

1	HA109-3321 Available to backorder	Oil Filter	£32.17 £26.81
2	HA109-3278 Available to backorder	Adapter-Straight	£196.32 £163.60
2	HA237-42 Available to backorder	[2.1] 0.468 Inch X 0.078 Inch O-Ring	£4.76 £3.97
3	HA114-8465 Available to backorder	Charge Kit	£175.32 £146.10
3	HA109-3540 Available to backorder	[3.3] O Ring-Seal	£7.54 £6.28
4	HA109-5592 Available to backorder	Extension Spring	£26.60 £22.17
5	HA116-3872 Available to backorder	Hub-Offset	£67.56 £56.30
6	HA109-3536 Available to backorder	Hub Nut	£36.60 £30.50

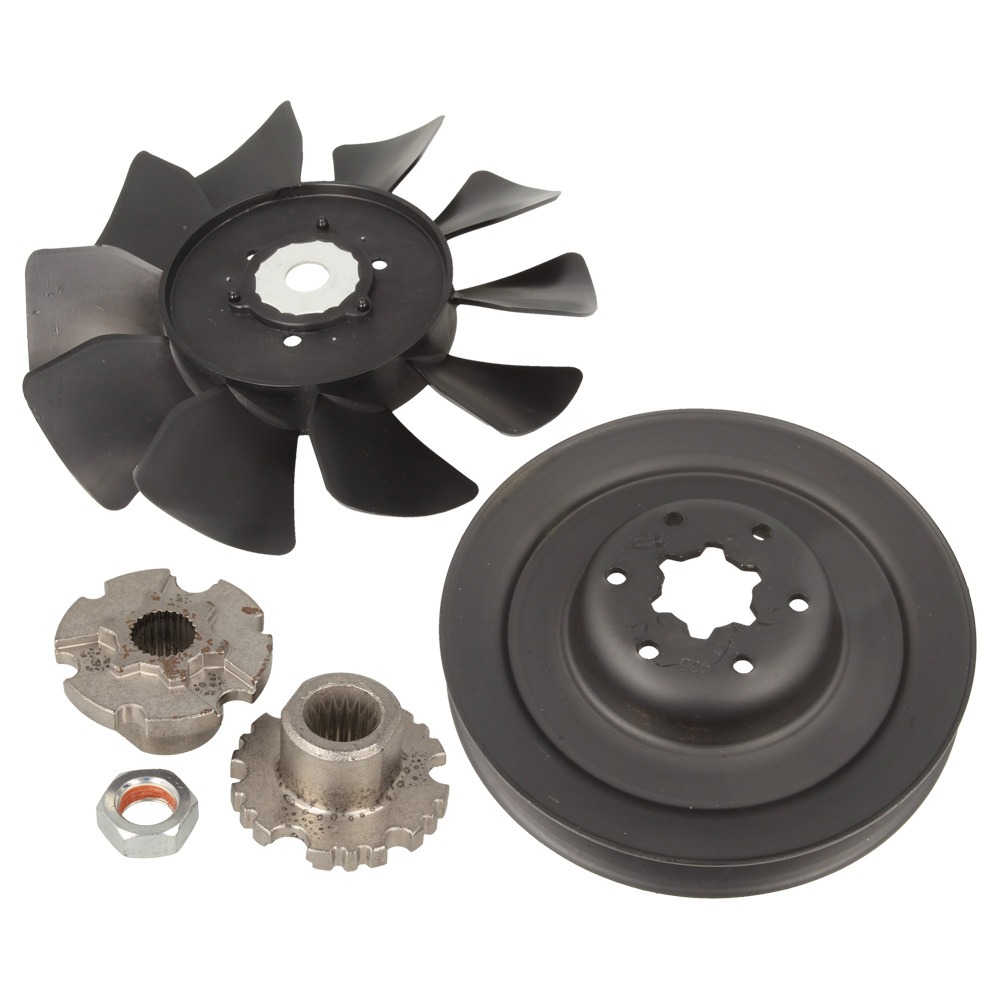

7	HA135-7347 Available to backorder	Fan And Pulley Kit	£144.84 £120.70
7	HA116-9714 Available to backorder	[7.1] Hj Nut	£4.82 £4.02
7	HA126-0226 Available to backorder	[7.2] Fan	£75.60 £63.00
8	HA116-6214 Available to backorder	Cap-Axle. Long	£17.32 £14.43
9	HA116-6213 Available to backorder	Tube-Axle	£14.83 £12.36
10	HA120-7979 Available to backorder	Left Hand Filter Guard	£33.48 £27.90
11	HA104-2120 Available to backorder	Screw	£9.02 £7.52
