Toro Z Master 132cm - 77292TE (413000000 - 414529977) Engine, Clutch and Muffler

Name: Toro Z Master 132cm - 77292TE (413000000 - 414529977) Engine, Clutch and Muffler
SKU: z_master_132cm_77292te_413414529977_engine_clutchmuffler-group
Price: 0.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Z Master 132cm - 77292TE (413000000 - 414529977) Engine, Clutch and Muffler

Description

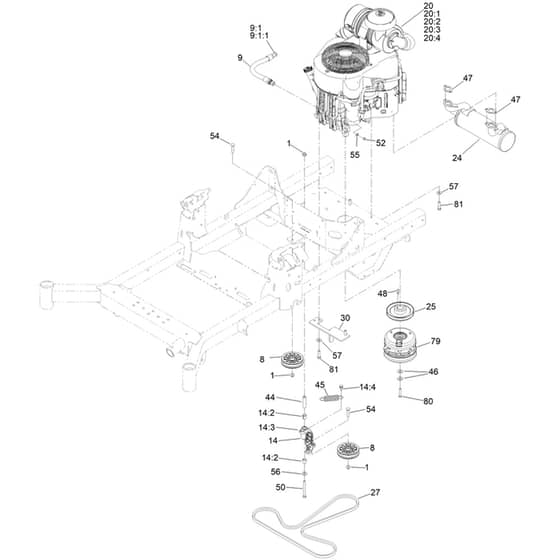

Toro Z Master 132cm - 77292TE (413000000 - 414529977) Engine, Clutch and Muffler Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HA237-42 Available to backorder	0.468 Inch X 0.078 Inch O-Ring	£4.60 £3.83
1	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
8	HA116-2456 Available to backorder	Pulley-Flat Idler	£26.30 £21.92
9	HA116-4924 Available to backorder	Engine Oil Drain Hose Asm	£43.06 £35.88
9	HA353-508 Available to backorder	[9.1] Plug-Hh [O-Ring]	£8.78 £7.32
14	HA302-40 Available to backorder	[14.3] 90 Degree Grease Fitting	£2.80 £2.33
14	HA32144-11 Available to backorder	[14.4] Hex Washer Head (Hwh) Screw	£8.36 £6.97
14	HA126-0973 Available to backorder	Idler Arm Assembly	£128.16 £106.80
14	HA1-513034 Available to backorder	[14.2] Sleeve-Bearing	£8.12 £6.77
24	HA126-4360 Available to backorder	Muffler	£203.64 £169.70
25	HA126-5358 Available to backorder	Sheave (W.Hub)	£72.98 £60.82
27	HA126-5993 Available to backorder	Traction Drive V-Belt	£56.22 £46.85
30	HA126-6687-03 Available to backorder	Clutch Anchor	£28.70 £23.92
44	HA1-603384 Available to backorder	Idler Pivot Bushing	£15.54 £12.95
45	HA1-603402 Available to backorder	Extension Spring	£9.08 £7.57
46	HA1-603610 Available to backorder	Spring Washer	£5.28 £4.40
47	HA1-653313 Available to backorder	Exhaust Gasket	£7.06 £5.88
48	HA1-807259 Available to backorder	Key	£2.26 £1.88
50	HA323-15 Available to backorder	Hex Head (Hh) Screw	£2.52 £2.10
52	HA3217-5 Available to backorder	Hex Nut	£0.42 £0.35
54	HA3231-29 Available to backorder	Carriage Screw	£1.12 £0.93
55	HA3256-22 Available to backorder	Flat Washer	£0.62 £0.52
56	HA3256-4 In stock	Flat Washer	£0.46 £0.38
57	HA98-5975 Available to backorder	Belleville Washer	£5.14 £4.28
79	HA140-5456 Available to backorder	Clutch-Pto	£408.00 £340.00
80	HA3212-10 Available to backorder	Screw-Hh[.438-20X2.500.Gr5.Yz]	£4.82 £4.02
81	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.08 £0.90
